Fluid Pump Cover Installation

WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

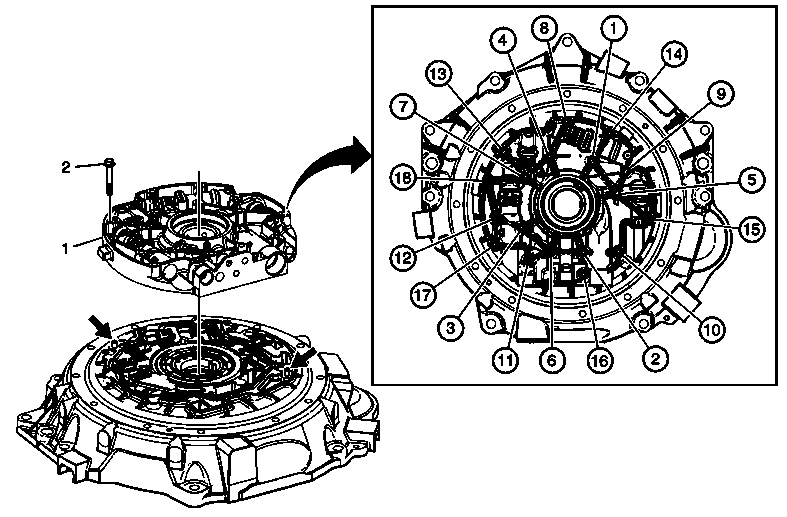

Fig 1: Fluid Pump Cover And Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/Trans Fluid Pump Cover Assembly TIP: Align pump with guide pins on the torque dampener housing.
2	A/Trans Fluid Pump Cover Bolts M6 x1.0 x 45 (Qty: 18) CAUTION: Refer to Fastener Caution . Procedure: Tighten in sequence shown. Tighten 9-13 N.m (80-115 lb in)
