Control Valve Assembly Installation
WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

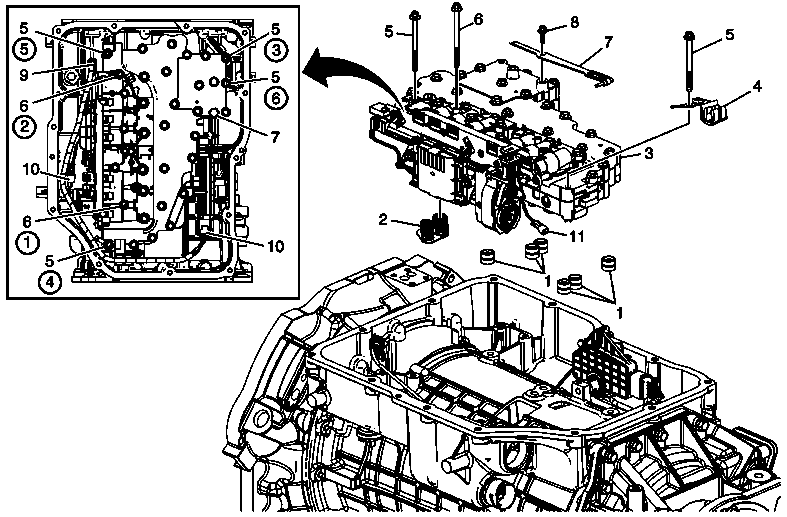

Control Valve Assembly Installation
| Callout | Component Name |
|---|---|
| 1 | Control Valve Upper Body Seal (Qty: 6) TIP: Install a NEW seal. |
| 2 | A/Trans Fluid Pump Seal Assembly TIP: Install a NEW seal assembly. |
| 3 | Control (with Body and Valve) Valve Assembly TIP: Align the manual shift shaft position switch activator slide with the detent lever guide pin. |
| 4 | Internal Wire Harness Side Bracket |
| 5 | Control Valve Upper Body Bolt M6 x1.0 x 65 (Qty: 4)
CAUTION:
Refer to Fastener Caution . Procedure Tighten in the sequence shown. Tighten 9-13 N.m (80-115 lb in) |
| 6 | Control Valve Upper Body Bolt M6 x 1.0 x 80 (Qty: 2) |
| 7 | Manual Shift Detent Assembly |
| 8 | Manual Shift Detent Spring Bolt M6 x 1.0 x 16 Tighten 9-13 N.m (80-115 lb in) |
| 9 | Control Solenoid (with Body and TCM) Valve Assembly Procedure Connect the wiring harness. |
| 10 | Shift Shaft Position Switch Procedure Connect the wiring harness. |
| 11 | A/Trans Wiring Harness Assembly Procedure Connect the wiring harness to the ground spade on the internal wire harness side bracket. |
