Antilock Brake System Schematics

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

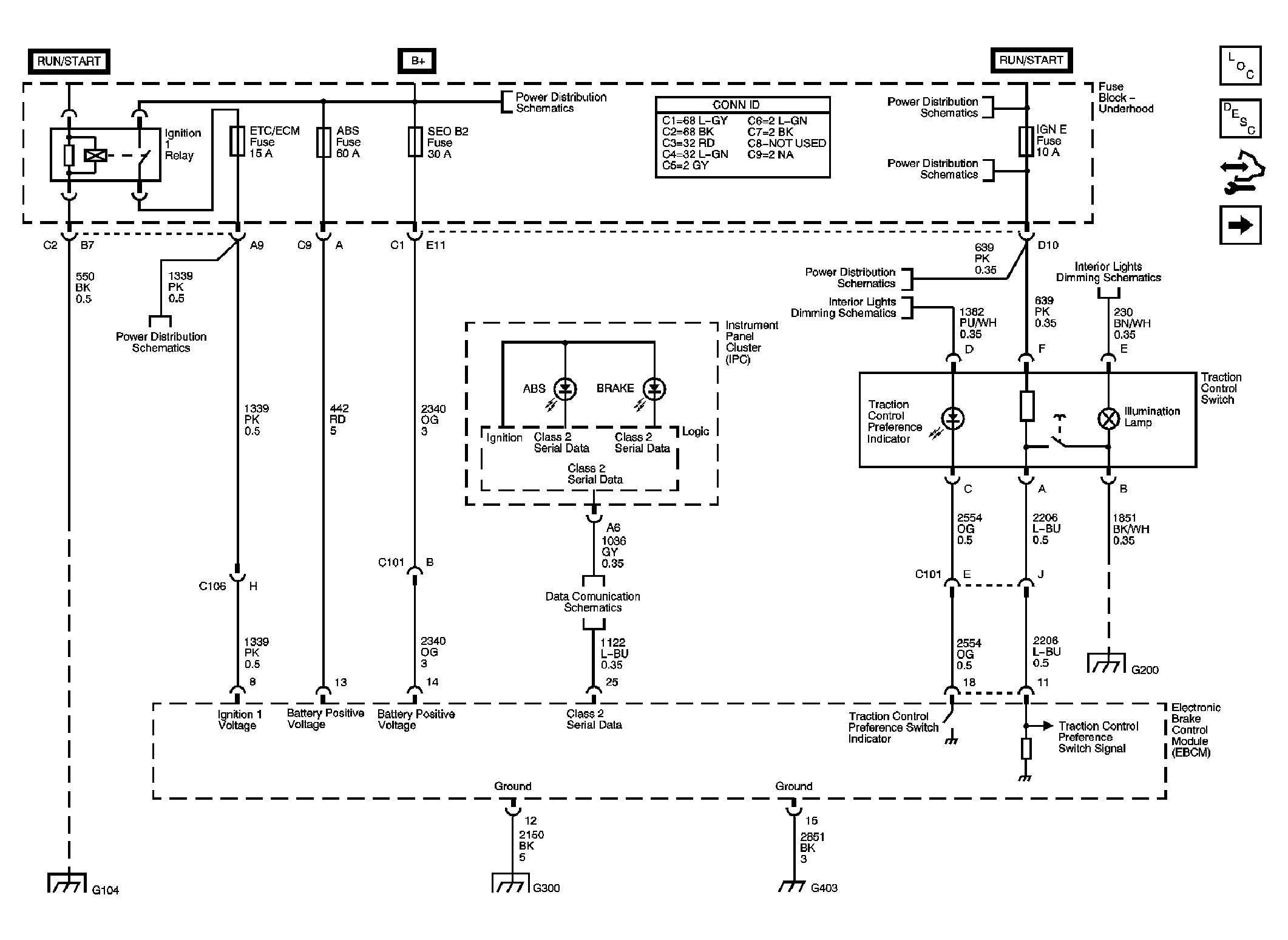

Fig 1: Power, Ground, Serial Data, Indicator, and Traction Control Schematic

Courtesy of GENERAL MOTORS CORP.

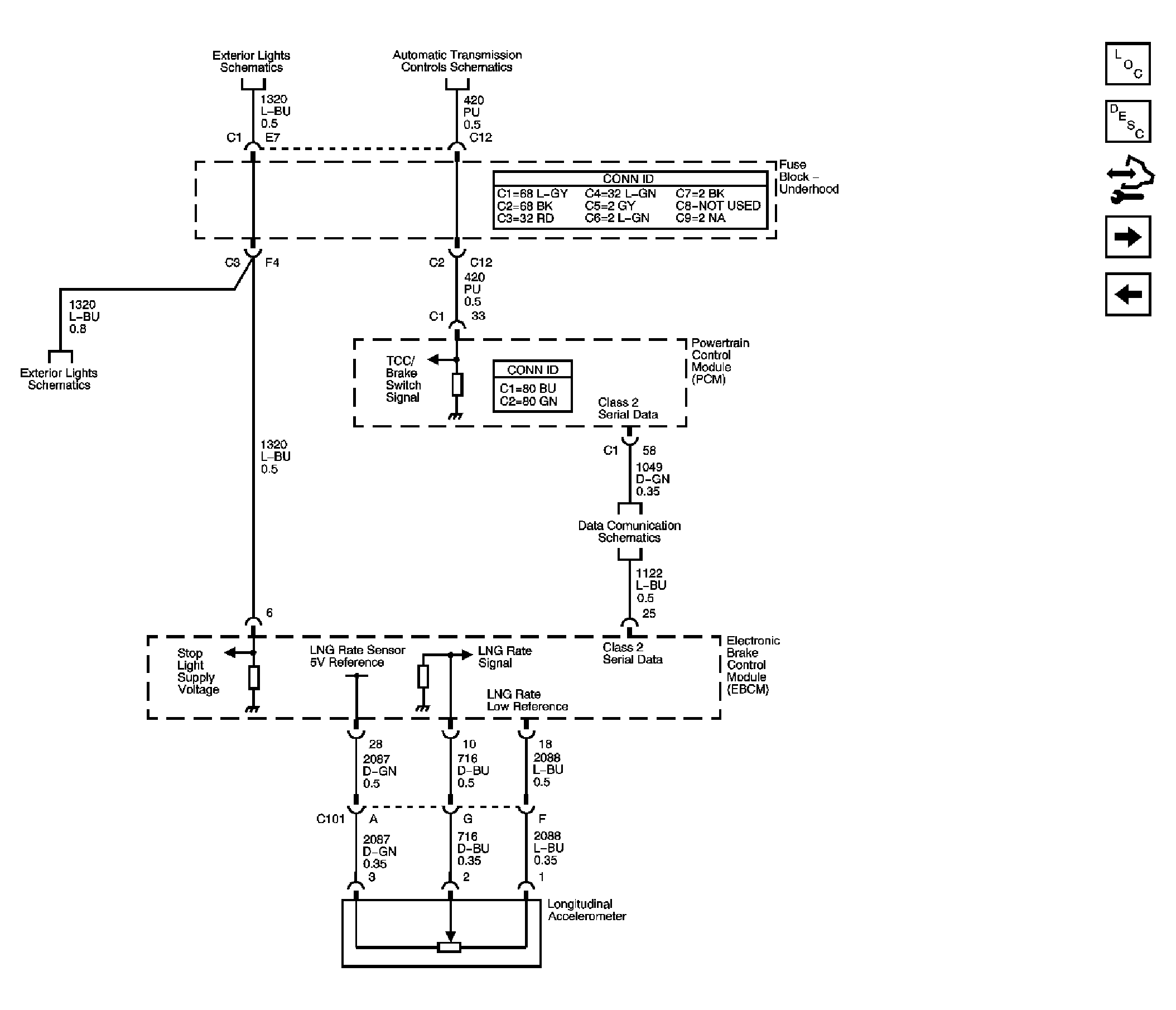

Fig 2: Stop Lamp Switch and Longitudinal Accelerometer Signals Schematic

Courtesy of GENERAL MOTORS CORP.

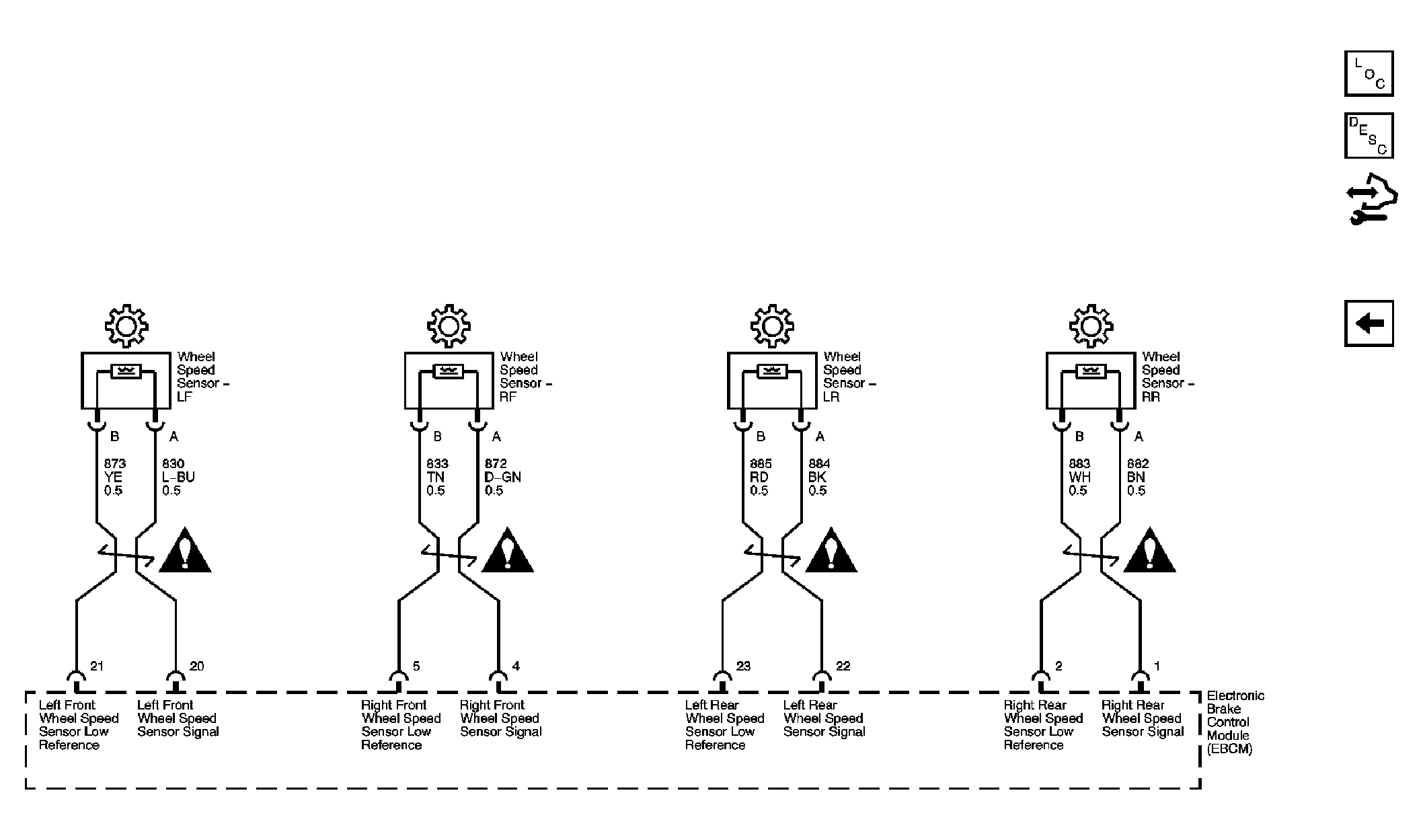

Fig 3: Wheel Speed Sensor Signal Schematic

Courtesy of GENERAL MOTORS CORP.
