Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine shield, if equipped. Refer to Engine Shield Replacement .

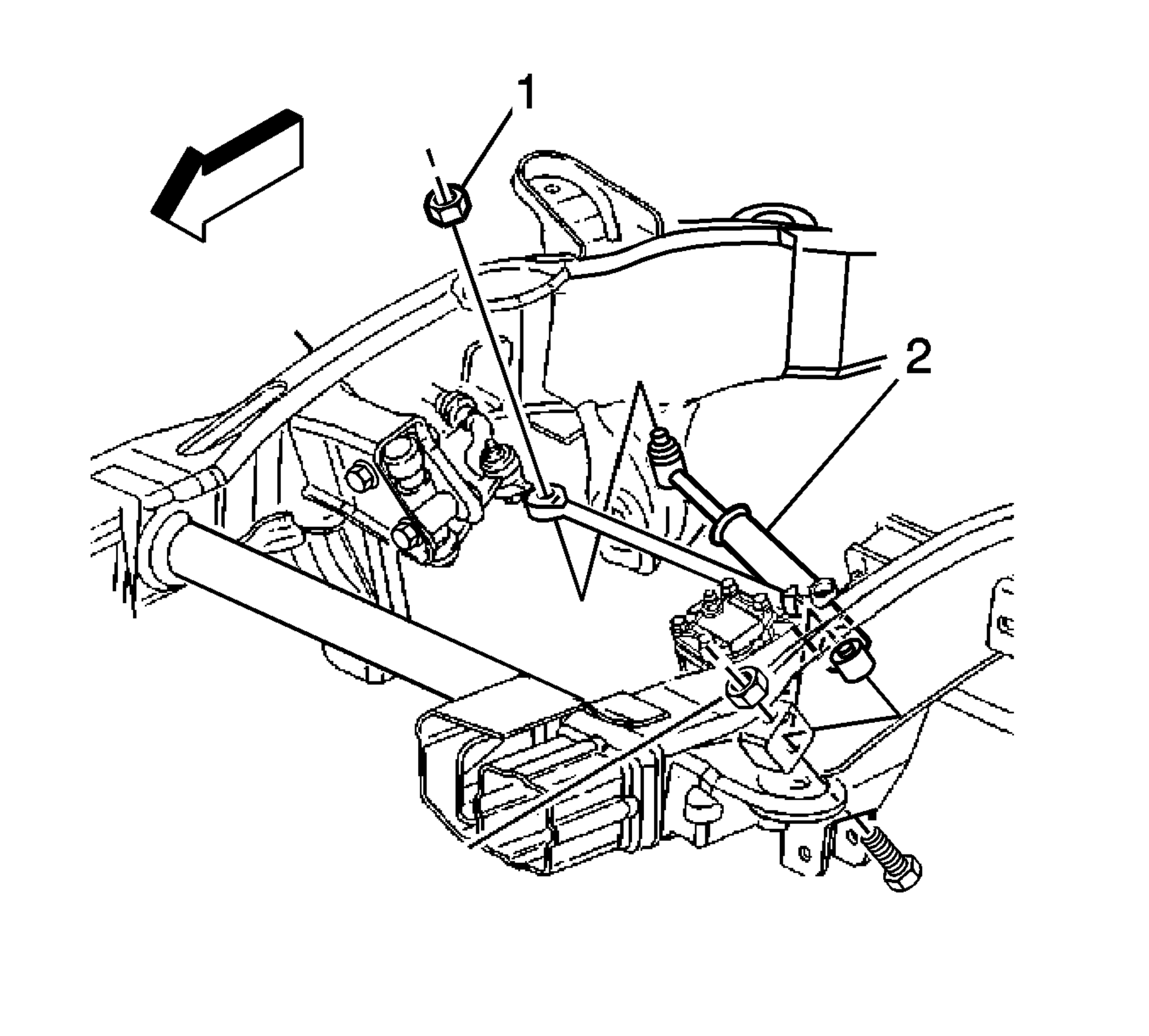

    2. Fig 1: Linkage Shock Absorber
    GM1862839Courtesy of GENERAL MOTORS CORP.
    NOTE:

    Discard the steering linkage shock absorber nut.

  2. Remove the steering linkage shock absorber nut (1) from the steering linkage shock absorber (2).
    3. Fig 2: Disconnecting Steering Shock Absorber From Relay Rod
    GM397364Courtesy of GENERAL MOTORS CORP.
  3. Remove the steering linkage shock absorber from the relay rod using puller J 24319-B .

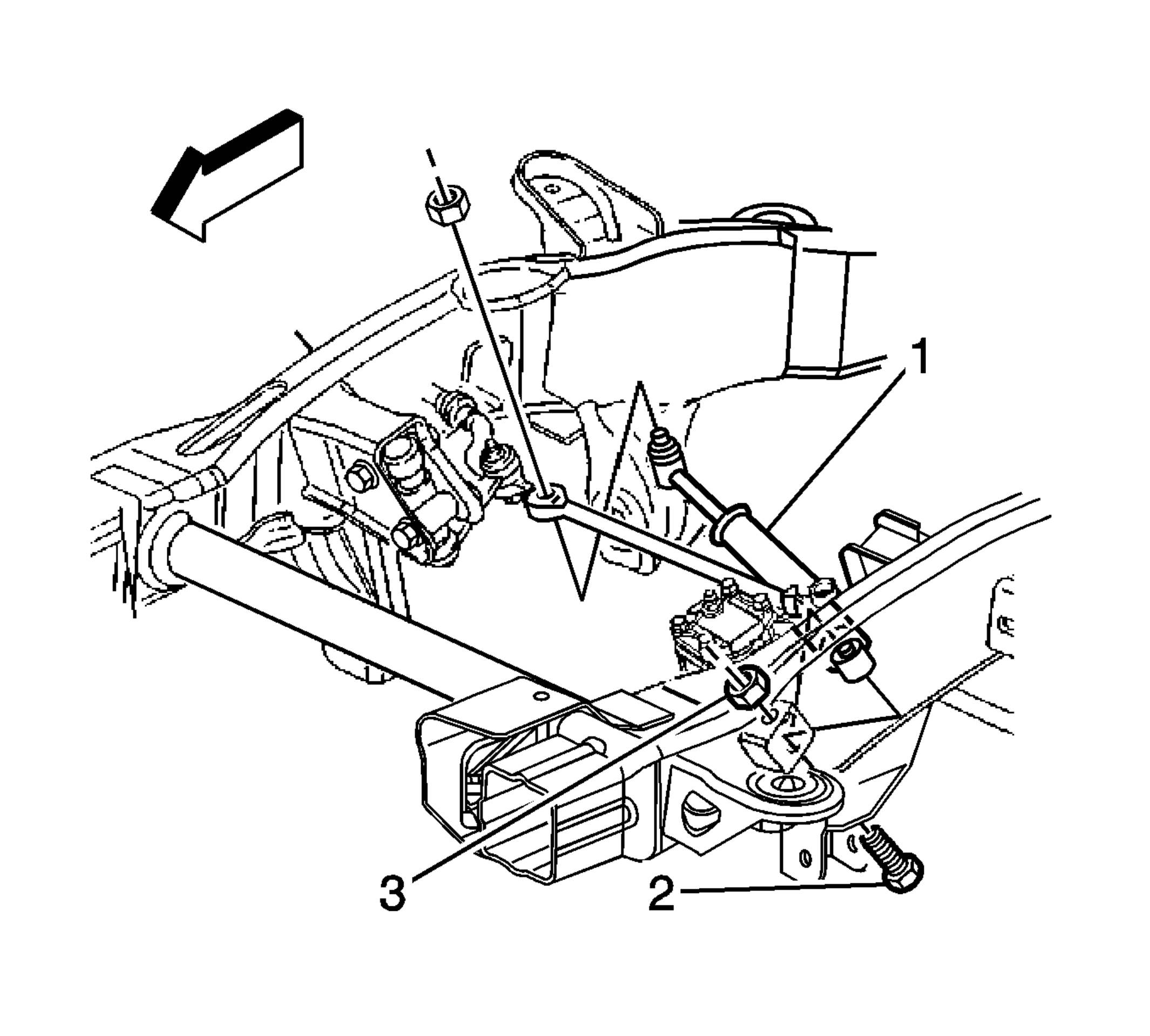

    4. Fig 3: Linkage Shock Absorber
    GM1862840Courtesy of GENERAL MOTORS CORP.
    NOTE:

    Discard the steering linkage shock absorber nut.

  4. Remove the steering linkage shock absorber bolt (2) and nut (3).
  5. Remove the steering linkage shock absorber (1) from the vehicle.
  6. Inspect the following parts:
    • The steering linkage shock absorber for leaks and damage
    • The steering linkage shock absorber bolt for damage or corrosion
