Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

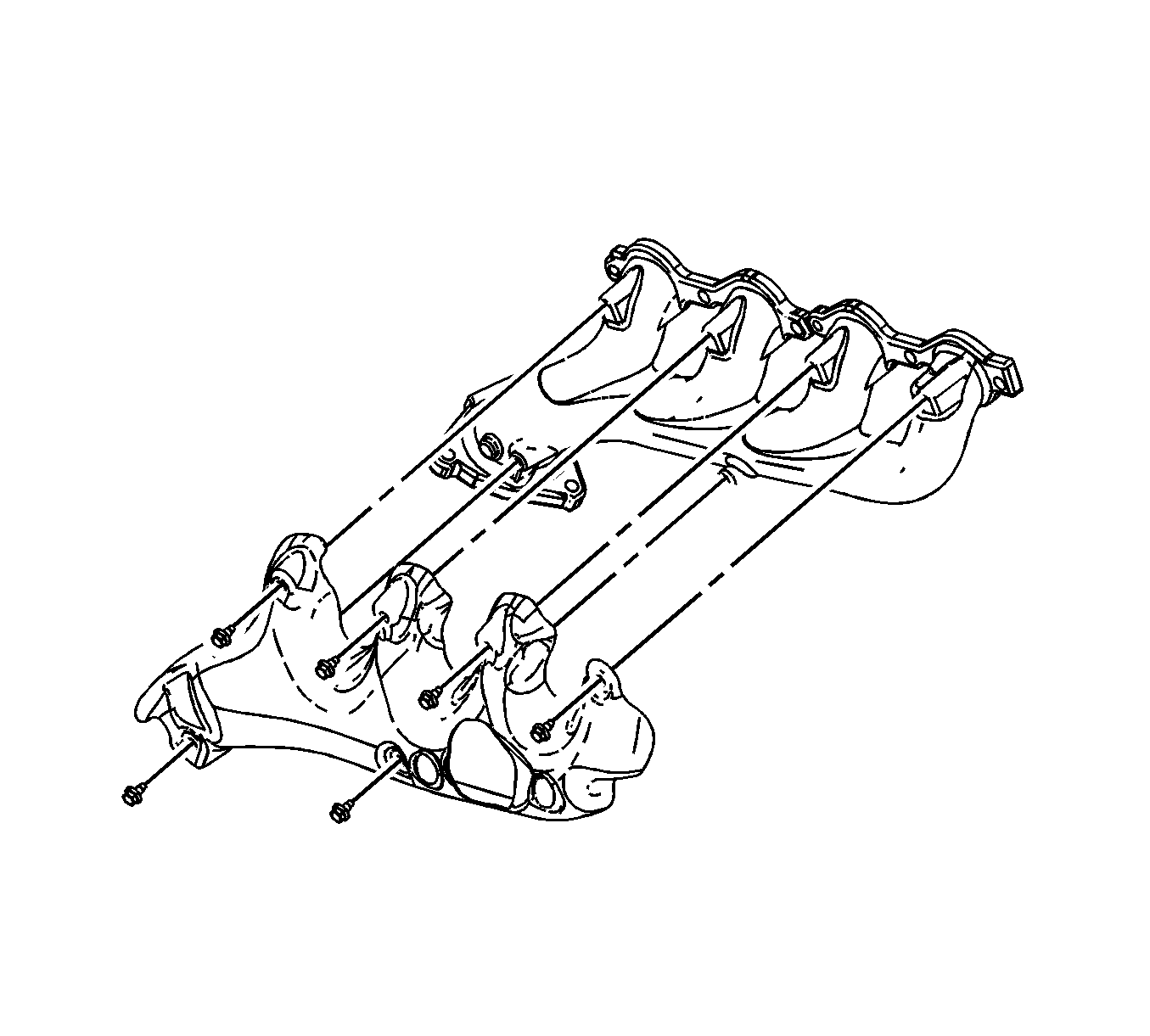

    Fig 1: Exhaust Manifold Heat Shield And Bolts
    GM1708619Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  1. Position the exhaust manifold heat shield to the exhaust manifold and install the heat shield bolts and tighten to 9 N.m (80 lb in).
  2. Install the right wheelhouse liner. Refer to Front Wheelhouse Liner Replacement - Right Side .
