Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the oil pan skid plate, if equipped. Refer to Oil Pan Skid Plate Replacement (1500 with RPO NZZ) , Oil Pan Skid Plate Replacement (2500/3500 with RPO NZZ) .

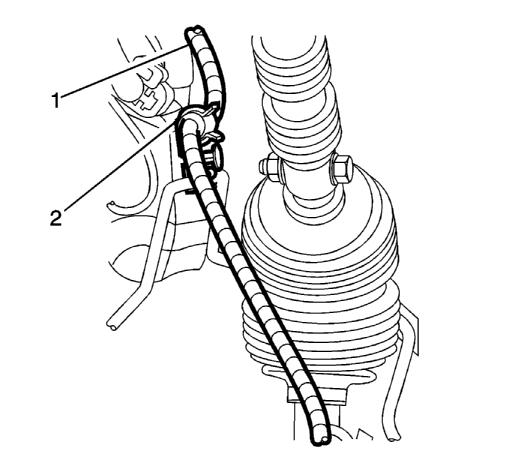

    3. Fig 1: Vent Hose And Connector
    GM2527927Courtesy of GENERAL MOTORS CORP.
  3. Remove the vent hose (1) from the frame connector (2).
  4. Remove the vent hose from the connector.
  5. Lower the vehicle.

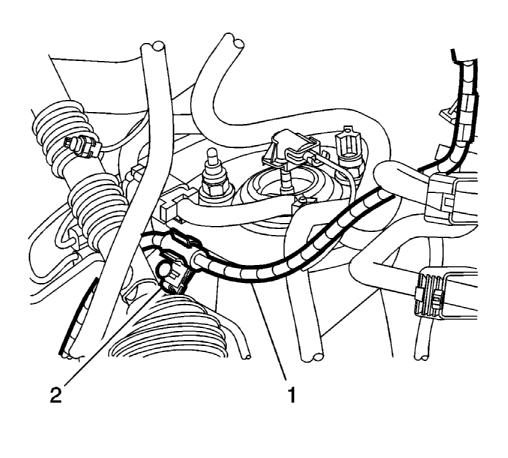

    6. Fig 2: Vent Hose And Connector At Shock Tower
    GM2527926Courtesy of GENERAL MOTORS CORP.
  6. Remove the vent hose (1) from the connector (2) at the shock tower

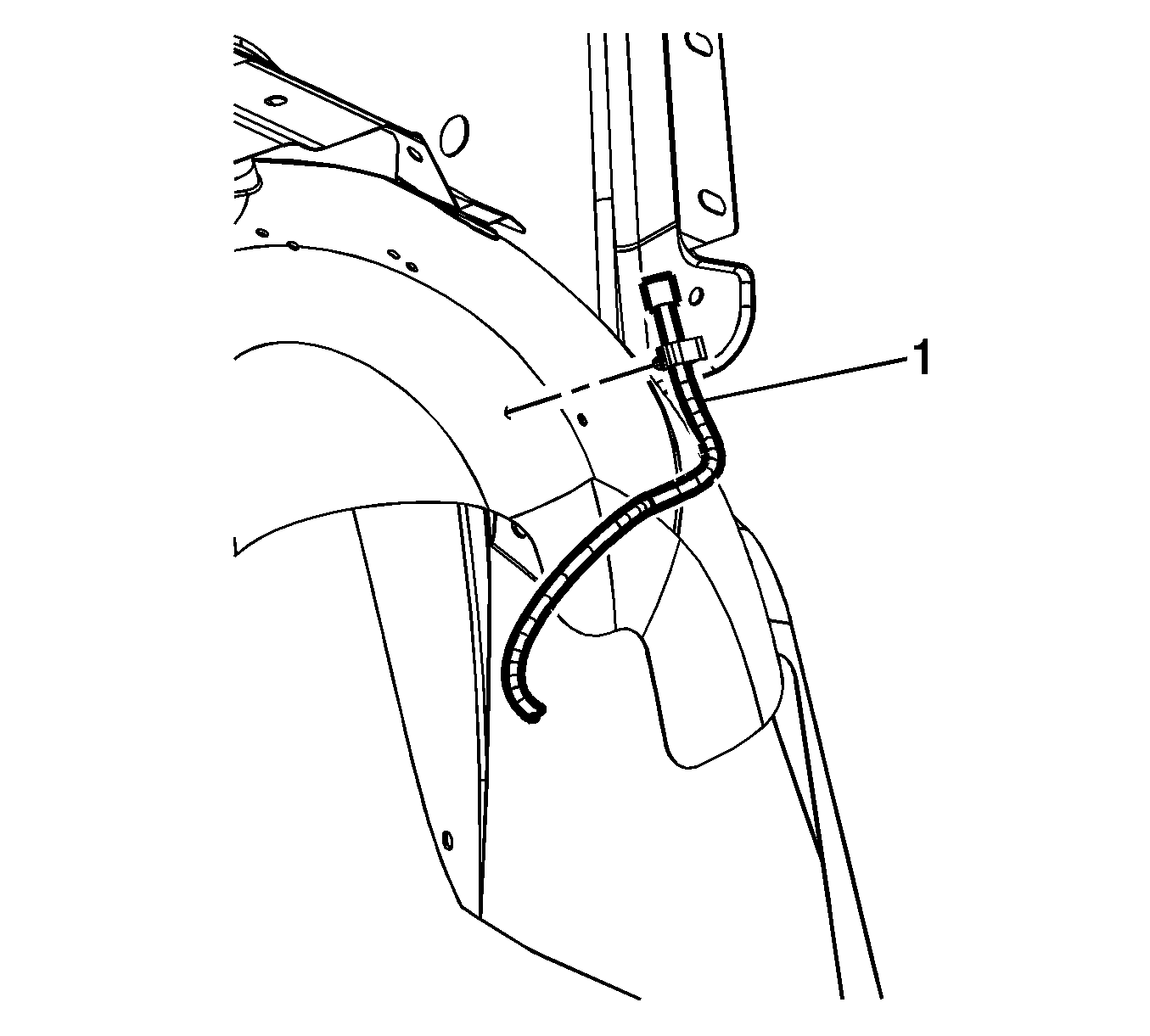

    7. Fig 3: Vent Hose
    GM1690649Courtesy of GENERAL MOTORS CORP.
  7. Remove the vent hose from the inner fender.
