Transmission Heat Shield Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

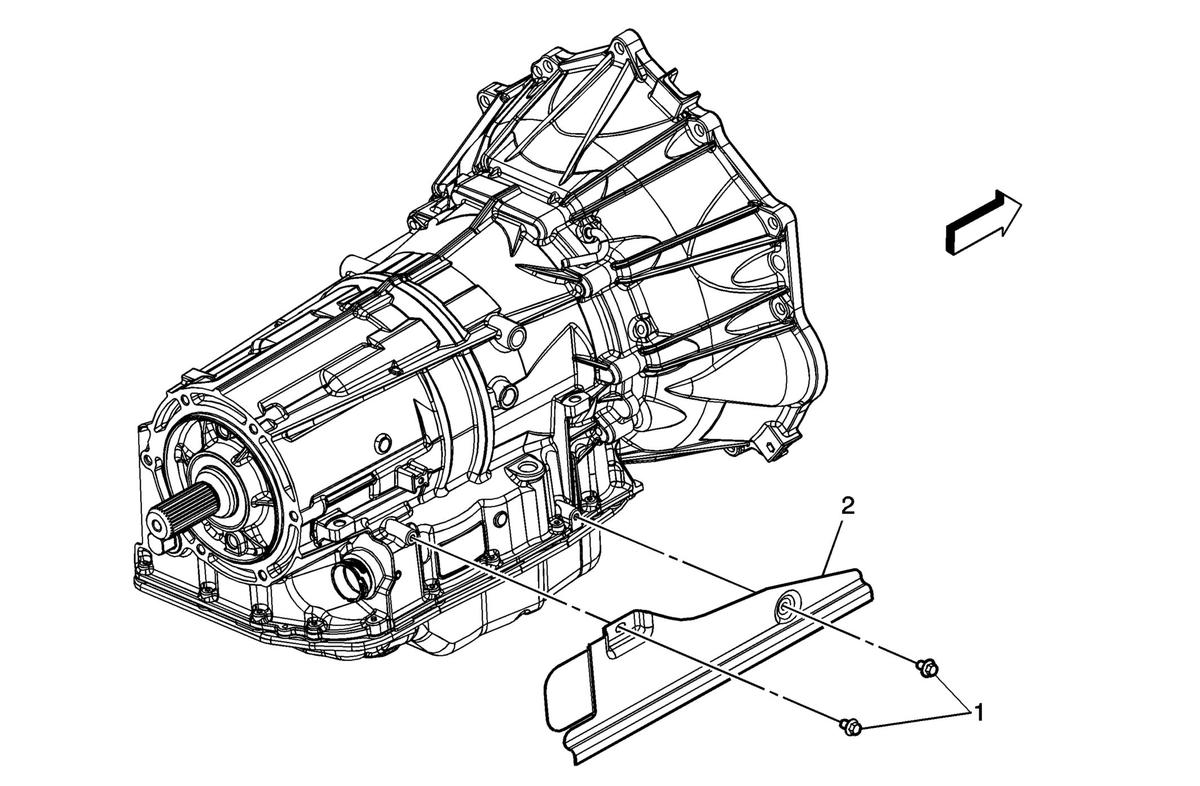

Fig 1: Transmission Heat Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Transmission Heat Shield Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 17 N.m (13 lb ft)
2	Transmission Heat Shield
