Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

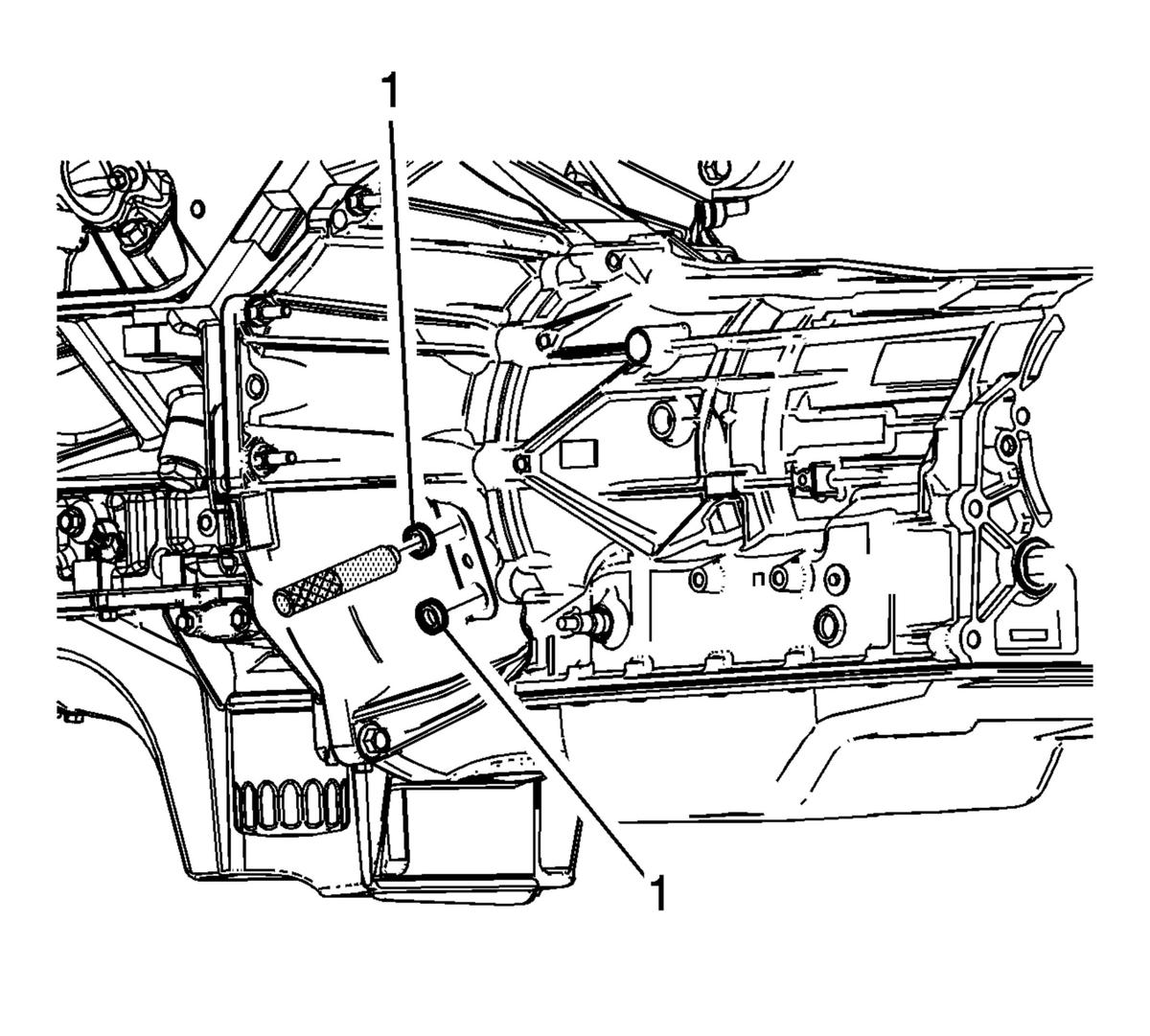

    Fig 1: Transmission Fluid Cooler Pipe Seals
    GM2663868Courtesy of GENERAL MOTORS CORP.
  1. Using DT-47770  installer, install the transmission fluid cooler pipe seals (1) in the transmission.
    2. Fig 2: Oil Cooling Lines And Bolt
    GM1705099Courtesy of GENERAL MOTORS CORP.
  2. Install transmission fluid cooler pipes (1) the to the transmission.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the transmission fluid cooler pipe bolt (2) to the transmission and tighten to 22 N.m (16 lb ft).
  4. Lower the vehicle.
  5. Check the transmission fluid level.
