Installation Procedure

WARNING: This page is about a different car, the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

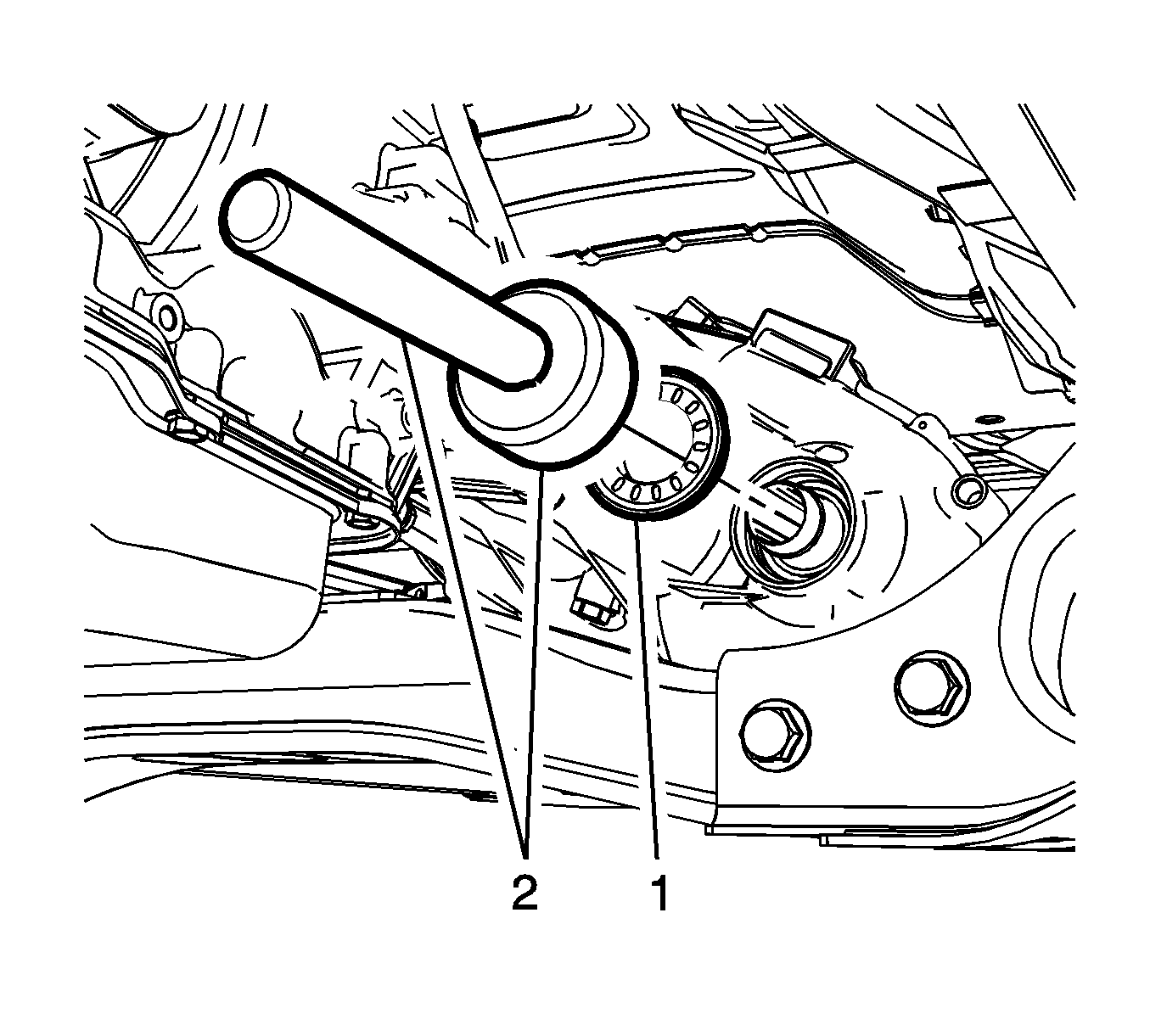

    Fig 1: Front Output Shaft Oil Seal And Installer
    GM2716858Courtesy of GENERAL MOTORS CORP.
  1. Using the J-8092  driver handle and J-43484  installer (2) install the front output shaft oil seal (1) to the transfer case.

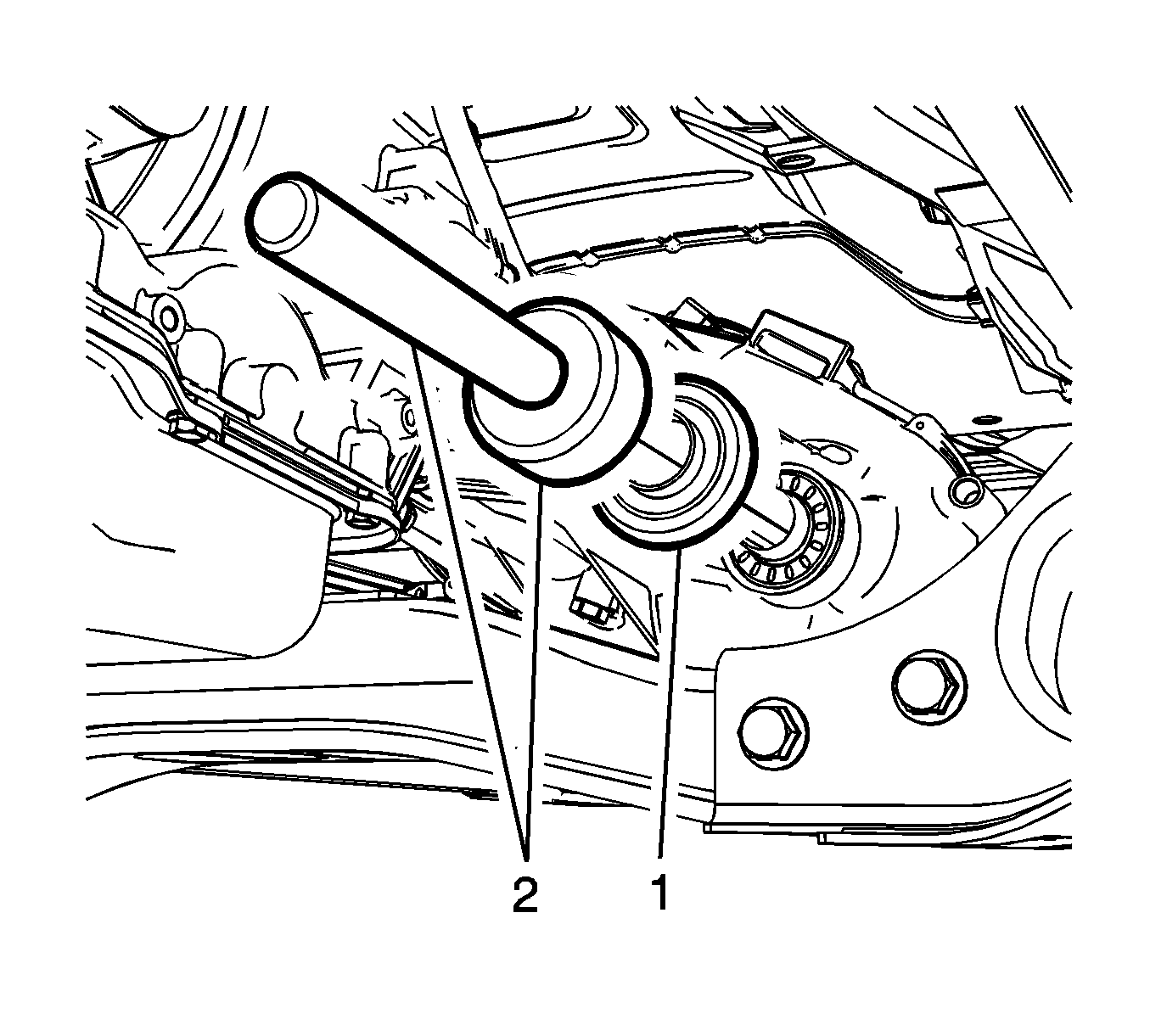

    2. Fig 2: Front Output Shaft Oil Slinger And Installer
    GM2716856Courtesy of GENERAL MOTORS CORP.
    NOTE:

    The new design front output shaft oil slinger can be installed onto all current and prior model year applications, providing the new design front output shaft seal is also installed. Refer to Transfer Case Description and Operation .

  2. Using the J-8092  driver handle and DT-50649  installer (2) install the front output shaft oil slinger (1) to the transfer case.
  3. Install the front propeller shaft. Refer to Front Propeller Shaft Replacement .
  4. Install the transfer case shield, if equipped. Refer to Transfer Case Shield Replacement .
  5. Lower the vehicle.
