Barometric Pressure Sensor Replacement

WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

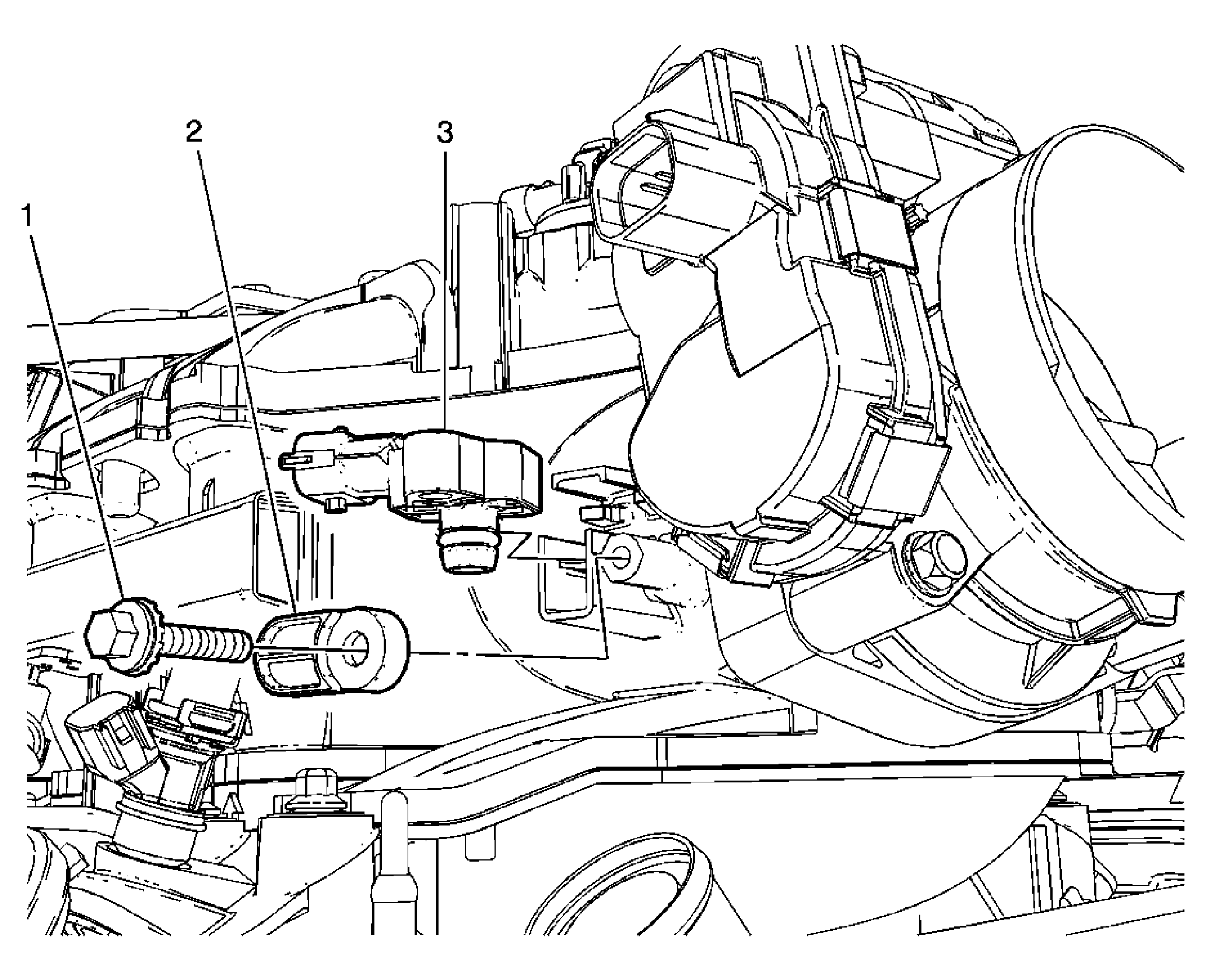

Fig 1: Barometric Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
1	Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Retainer
3	Barometric Pressure Sensor Procedure Disconnect the BARO sensor harness connector. Remove the BARO sensor from the intake manifold.
