Transmission Mount Replacement

WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

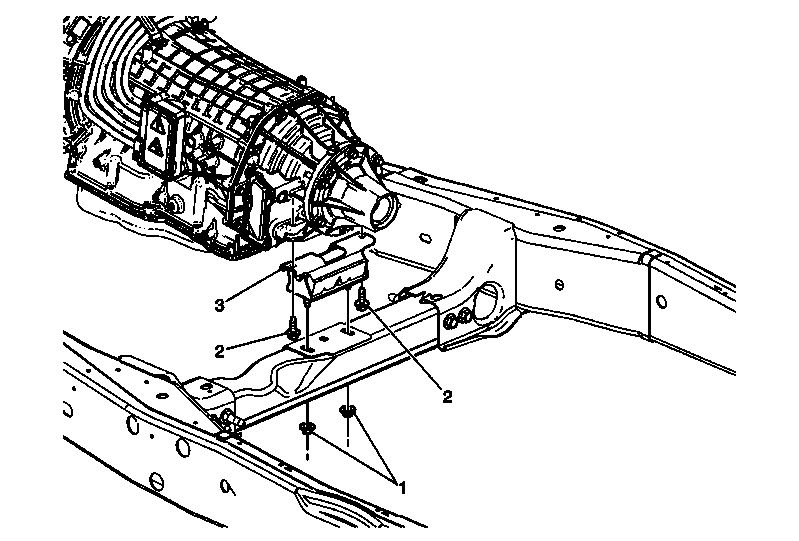

Fig 1: Transmission Mount
GM1970135Courtesy of GENERAL MOTORS CORP.
Transmission Mount Replacement

Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Support the transmission with a transmission jack.
1 Transmission Mount to Crossmember Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
55 N.m (41 lb ft)
2 Transmission Mount Bolt (Qty: 2)
Tighten
67 N.m (49 lb ft)
3 Transmission Mount
TIP:  Raise the transmission with the transmission jack just enough to remove the transmission mount.
