Transmission Fluid Pan Replacement

WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

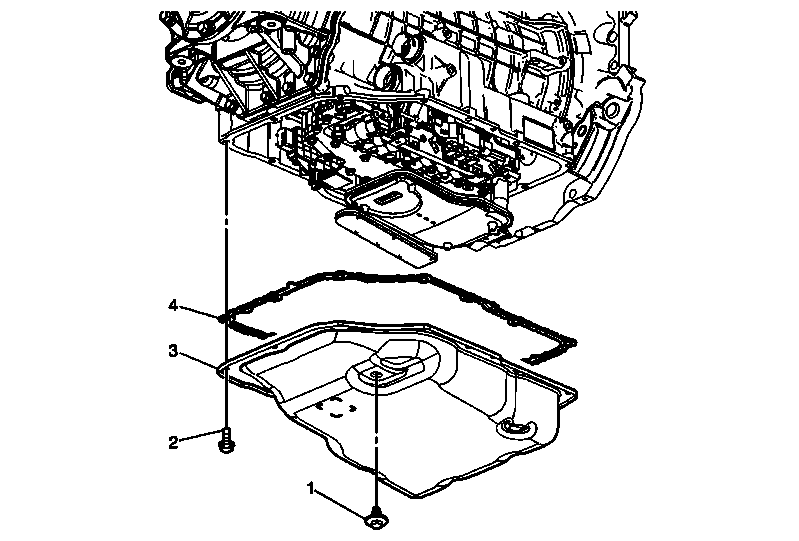

Fig 1: Transmission Fluid Pan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Use Dexron VI transmission fluid only. Failure to use the proper fluid may result in transmission internal damage. Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Place a suitable drain pan under the transmission. Drain the transmission using the fluid pan drain plug. Remove the auxiliary fluid pump bolts and position the pump out of the way. Refer to Auxiliary Fluid Pump and Gasket Replacement .
1	Transmission Fluid Pan Drain Plug CAUTION: Refer to Component Fastener Tightening Caution . CAUTION: Use Dexron VI transmission fluid only. Failure to use the proper fluid may result in transmission internal damage. Procedure Fill the transmission with the proper amount of transmission fluid. Refer to Fluid Capacity Specifications , and Transmission Fluid Level and Condition Check . Tighten 30-40 N.m (22-30 lb ft)
2	Transmission Fluid Pan Bolt (Qty: 13) CAUTION: Refer to Fastener Caution . Tighten 24-29 N.m (18-21 lb ft)
3	Transmission Fluid Pan
4	Transmission Fluid Pan Gasket TIP: The fluid pan gasket is reusable. Inspect the gasket to determine if it may be reused.
