Manual Shift Shaft Position Switch Replacement

WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

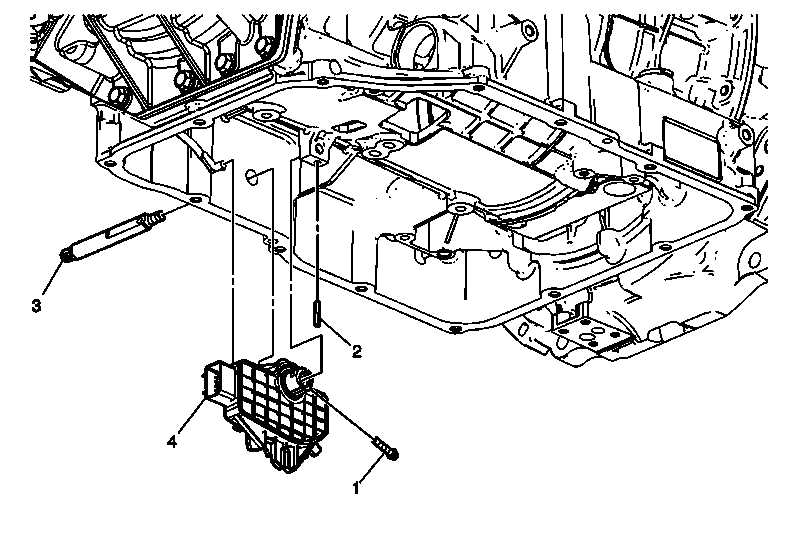

Fig 1: Manual Shift Shaft Position Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the transmission range select lever. Refer to Automatic Transmission Range Selector Lever Replacement . Remove the control valve upper body. Refer to Control Valve Upper Body Replacement .
1	Manual Shift Shaft Position Switch Bolt M5 x 20 CAUTION: Refer to Pin Reuse Caution .
2	Manual Shift Shaft Pin CAUTION: Refer to Pin Reuse Caution .
3	Manual Shift Shaft
4	Manual Shift Shaft Position Switch Assembly Procedure Disconnect the electrical connector. Disconnect the shift shaft position switch from the park pawl actuator.
