A/C Compressor Controls (except HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

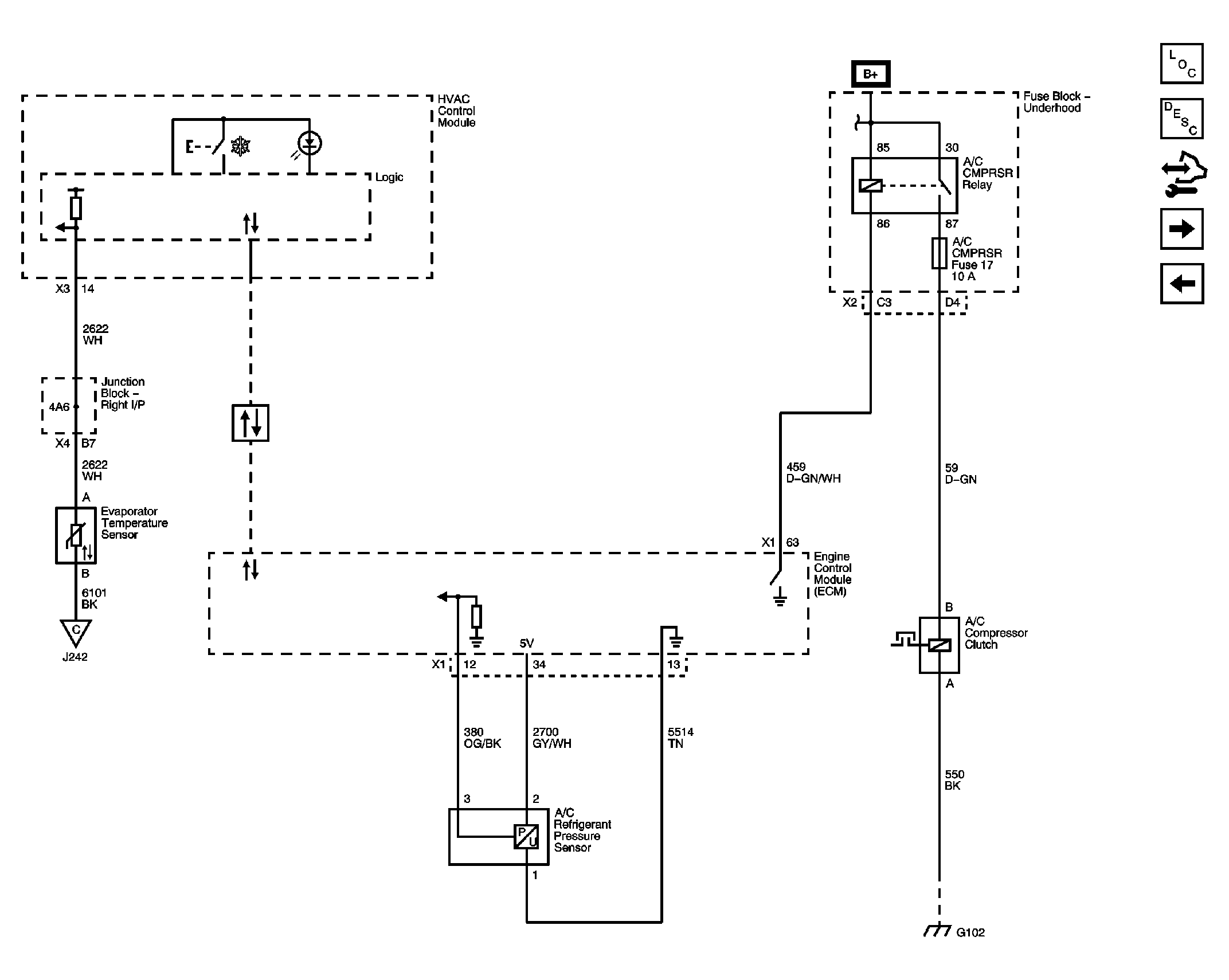

Fig 1: A/C Compressor Controls (except HP2) Wiring Schematic
GM2398644Courtesy of GENERAL MOTORS CORP.
