Main Power Contactors

WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

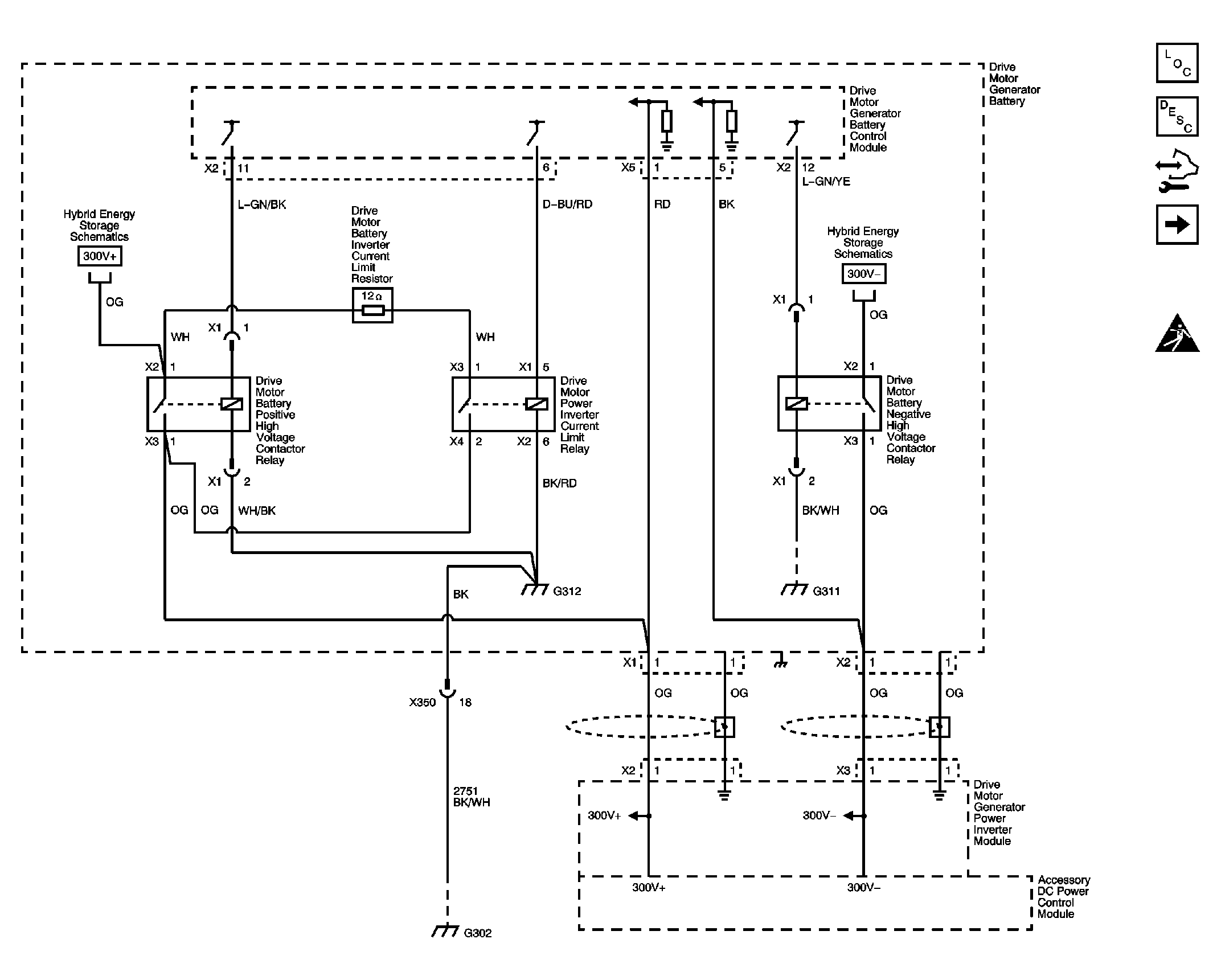

Fig 1: Main Power Contactors Wiring Schematic
GM2399955Courtesy of GENERAL MOTORS CORP.
