Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

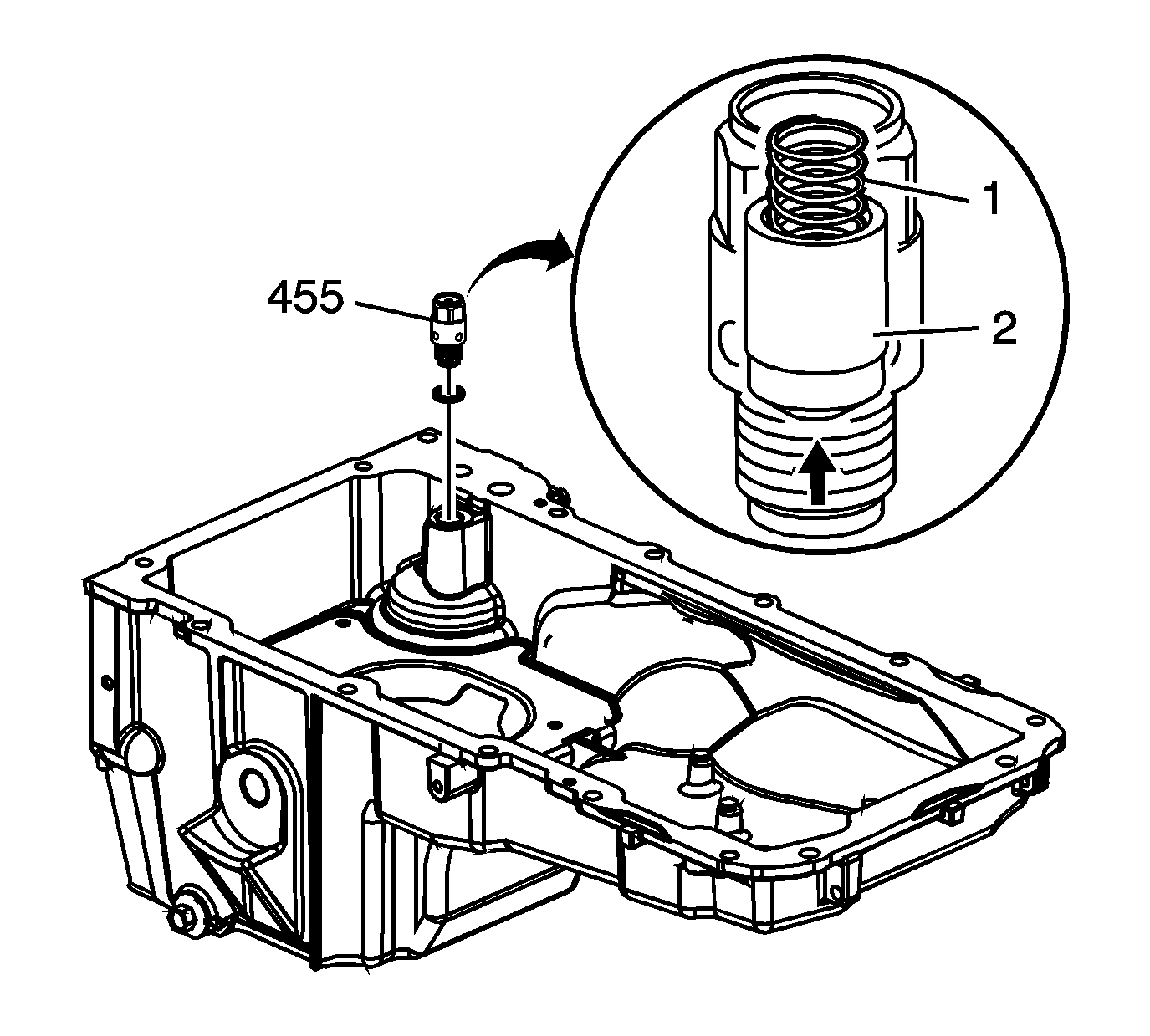

    Fig 1: Oil Pressure Relief Valve Components
    GM1658301Courtesy of GENERAL MOTORS CORP.
  1. Inspect the NEW oil pressure relief valve for proper operation. Lightly depress the ball (2). The valve spring (1) should seat the ball to the proper closed position.
  2. Install the NEW oil pressure relief valve (455) and washer.
  3. Install the oil pan. Refer to Oil Pan Replacement (4WD) , Oil Pan Replacement (2WD) .
