Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Install the new steering linkage inner tie rod washer in the same direction as noted previously.

Install the new steering linkage inner tie rod washer on the steering gear rack.

NOTE:

All threads must be clean prior to LOCTITE® application. Check the LOCTITE®, or equivalent, container for the expiration date. Use only enough LOCTITE® to evenly coat the threads.

Apply LOCTITE® 262 or equivalent to the steering linkage inner tie rod threads.
Attach the steering linkage inner tie rod to the steering gear rack and hand tighten it.

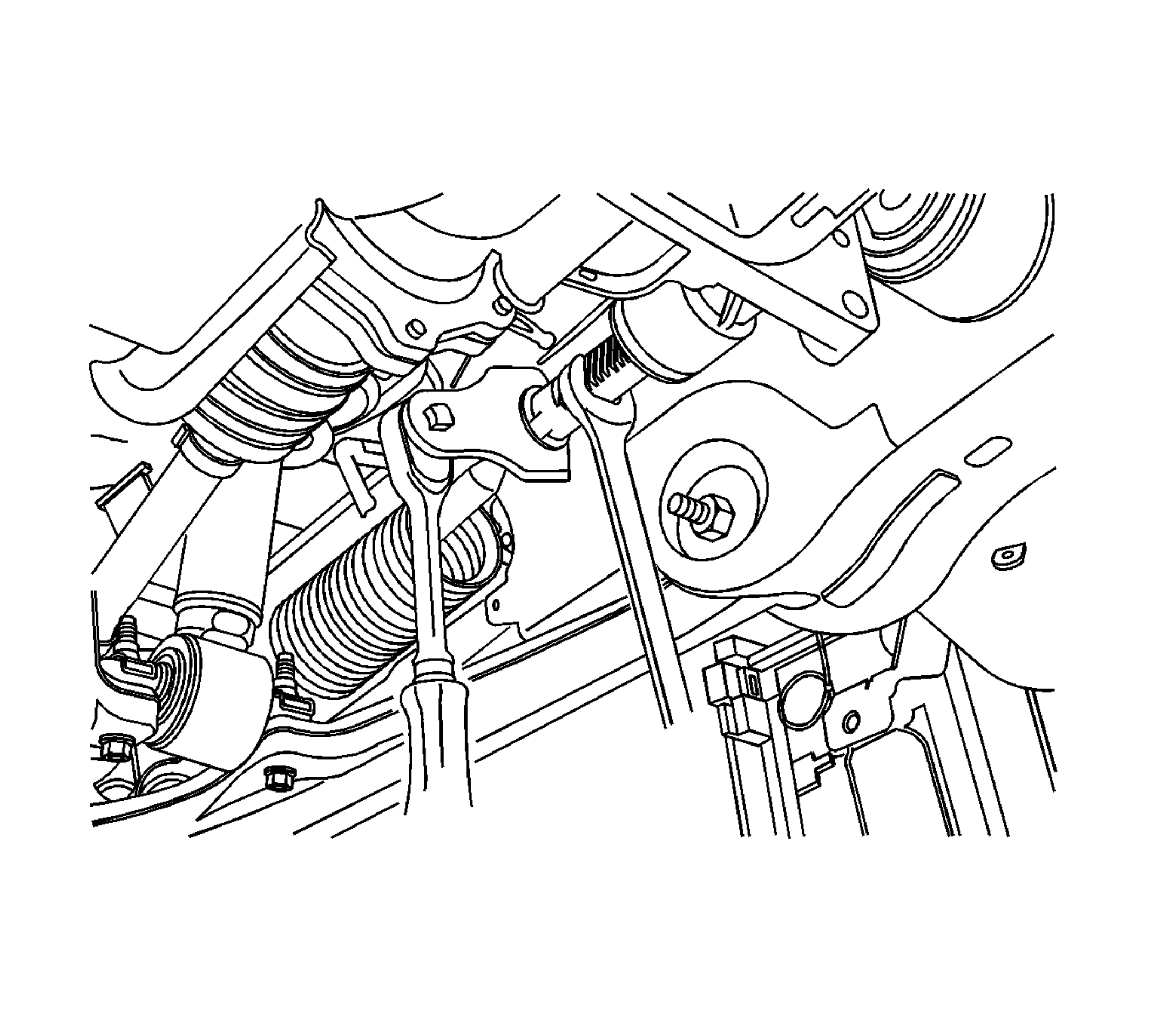

Fig 1: Tightening Steering Linkage Inner Tie Rod Using Wrench

Courtesy of GENERAL MOTORS CORP.

Tighten the steering linkage inner tie rod using wrench CH-49009 .
Tighten

Tighten the steering linkage inner tie rod to 145 N.m (107 lb ft).

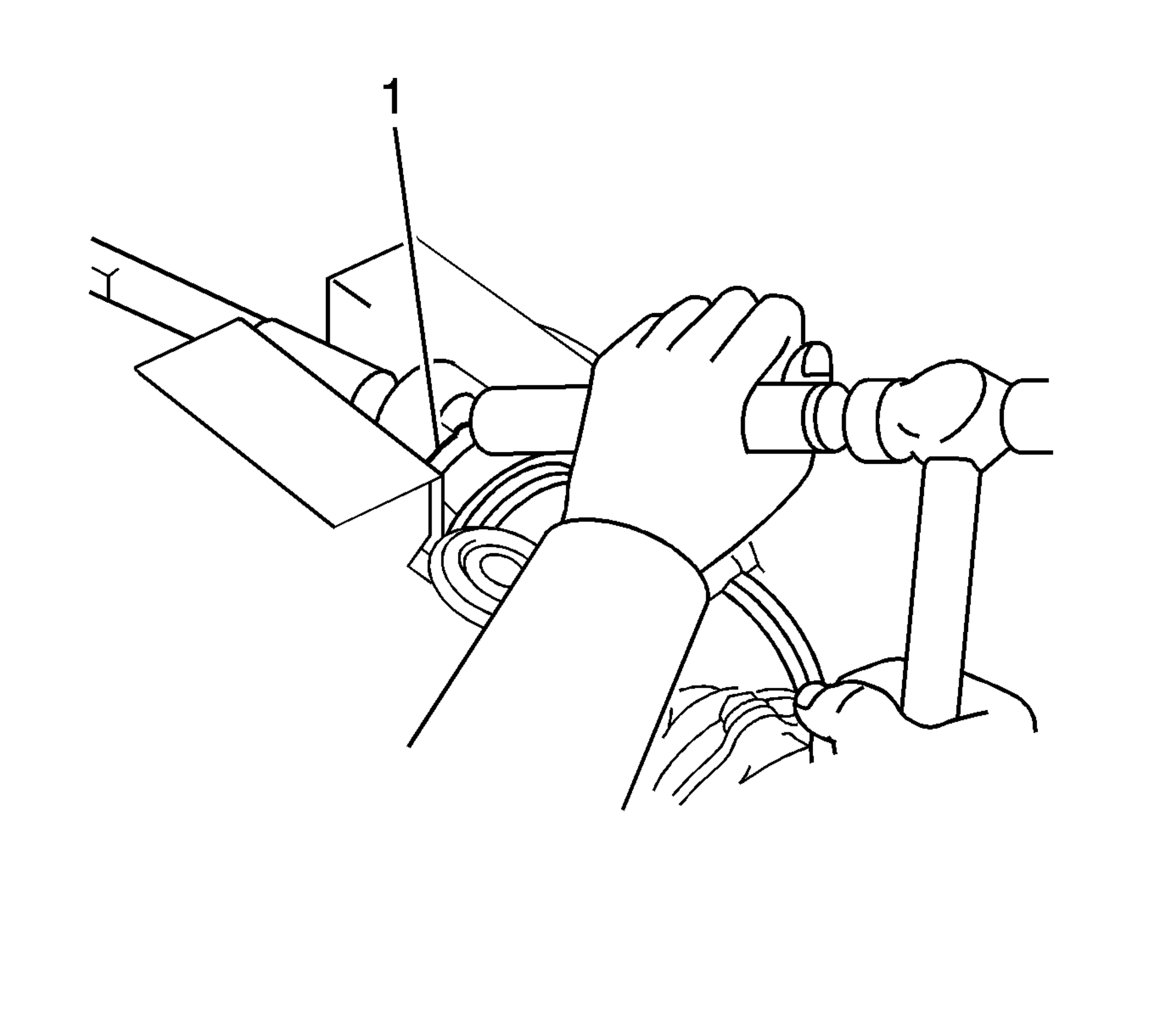

Fig 2: Aligning Inner Tie Rod Washer

Courtesy of GENERAL MOTORS CORP.

Align the new steering linkage inner tie rod washer (1) to the flats on the steering linkage inner tie rod and bend the tabs over the flats.

NOTE:

The appropriate grease must be applied to the small end of the steering gear boot before installation.

Install the steering gear boot. Refer to Steering Gear Boot Replacement (Without HP2) , Steering Gear Boot Replacement (HP2) .
