Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering gear. Refer to Steering Gear Replacement (Recirculating Ball Without LMM) , Steering Gear Replacement (Two Mode Hybrid) , Steering Gear Replacement (Hydraulic Rack and Pinion) .
    2. Fig 1: Cylinder Line Retaining Plate And Bolt
    GM1751420Courtesy of GENERAL MOTORS CORP.
    NOTE:

    Protect the steering gear boots from sharp tools and from the sharp edges of surrounding components.

  2. Remove the power steering gear inlet hose retaining plate bolt (1) and the power steering gear inlet hose retaining plate (2).

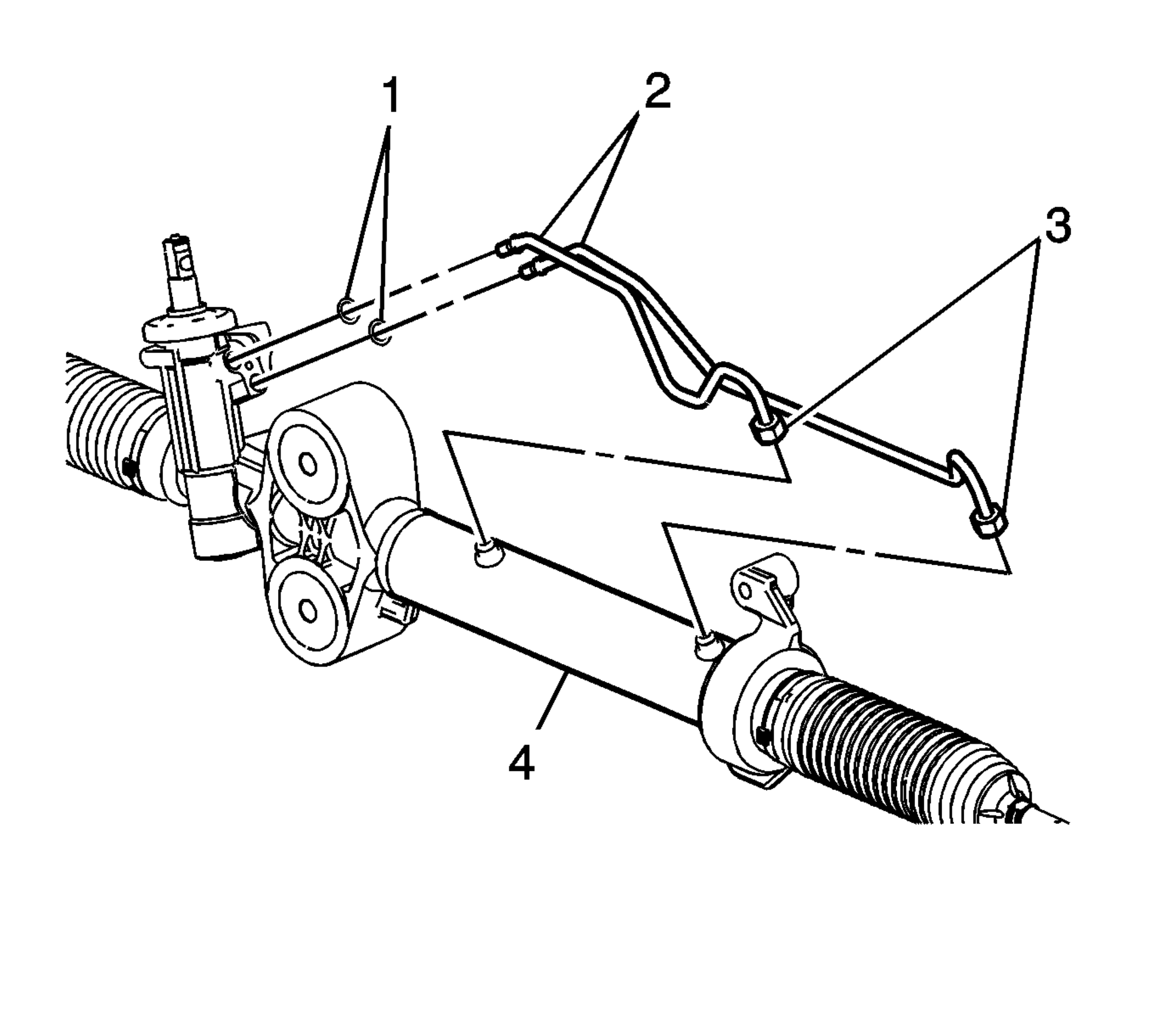

    3. Fig 2: Steering Gear Cylinder Pipes And Fittings
    GM1989785Courtesy of GENERAL MOTORS CORP.
  3. Loosen both steering gear cylinder pipe fittings (3) on the steering gear (4).
  4. Remove both steering gear cylinder pipes (2) from the steering gear (4).
  5. Remove and discard the steering gear cylinder pipe seals (1) from the steering gear (4).
