Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the steering gear cylinder pipes for the following items:
- Cracks
- Dents
- Damage to the threads
- Replace the steering gear cylinder pipes as needed.

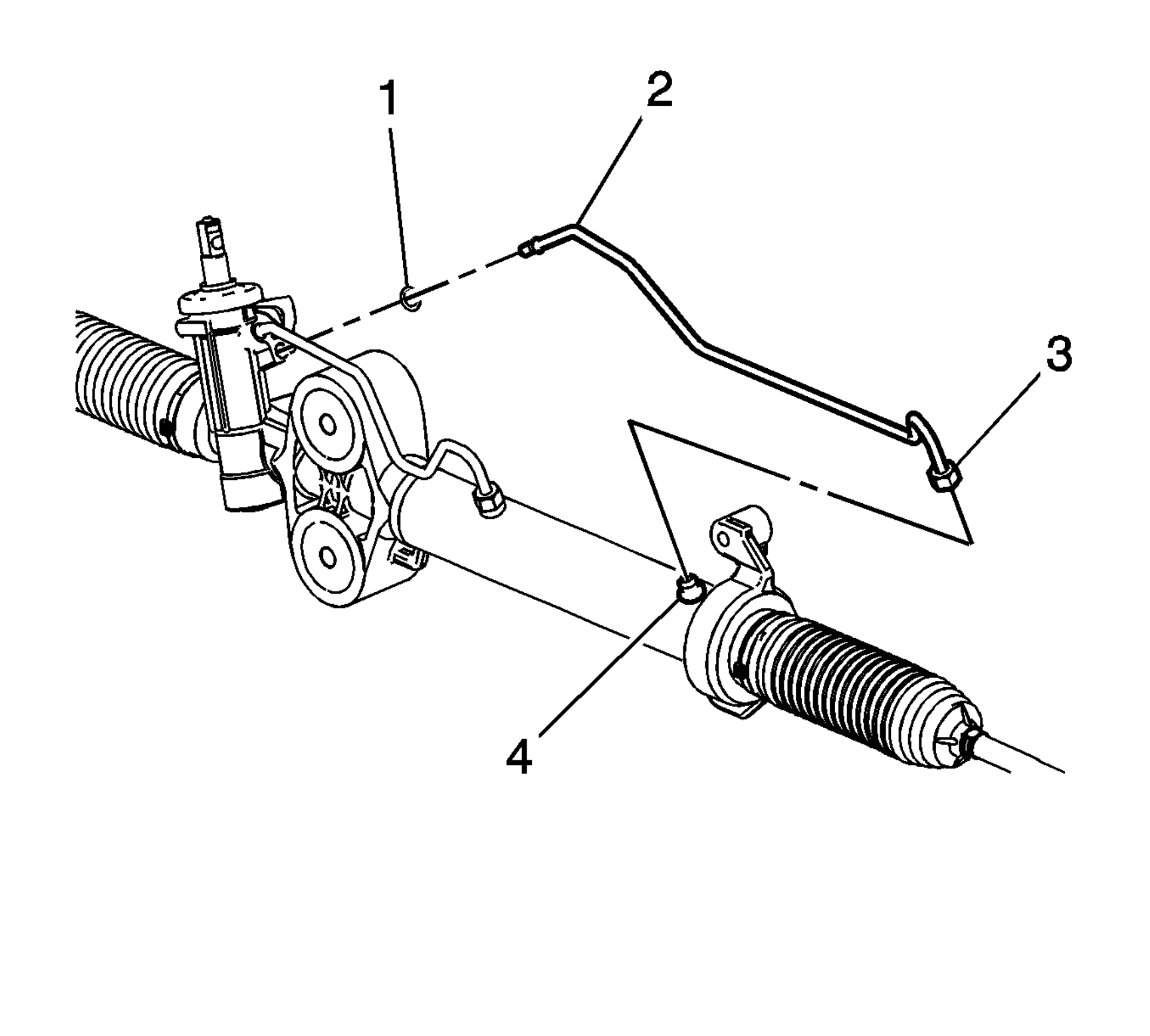

- Lubricate and install the new steering gear cylinder pipe seal (1) onto the shorter steering gear cylinder pipe.
- Place the non-threaded steering gear cylinder pipe end (2) into the steering gear.
- Place the threaded end of the steering gear cylinder pipe (3) onto the steering gear fitting (4).
Start the steering gear cylinder pipe fitting (3) but do not tighten it entirely.

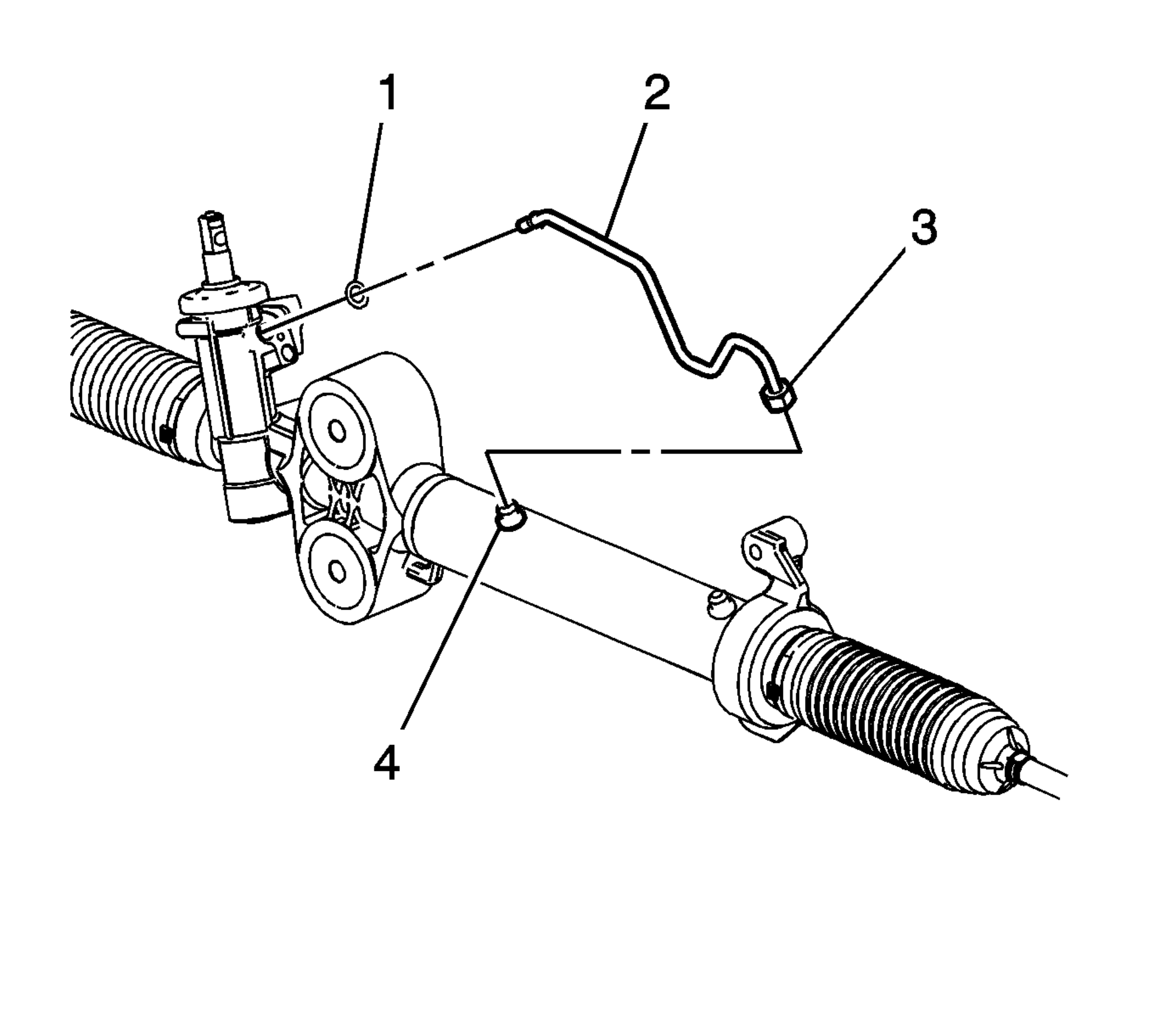

- Lubricate and install the new steering gear cylinder pipe seal (1) onto the longer steering gear cylinder pipe.
- Place the non-threaded steering gear cylinder pipe end (2) into the steering gear.
- Place the threaded end of the steering gear cylinder pipe (3) onto the steering gear fitting (4).
Start the steering gear cylinder pipe fitting (3) but do not tighten it entirely.
- Install the power steering gear inlet hose retaining plate (2) and the power steering gear inlet hose retaining plate bolt (1).
Tighten
Tighten the bolt to 12 N.m (106 lb in).
- Tighten the steering gear cylinder pipe fittings.
Tighten
Tighten the fittings to 34 N.m (25 lb ft).
CAUTION:
Refer to Fastener Caution .
