Power Steering Gear Outlet Pipe/Hose Replacement (Gas Without Hydroboost)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

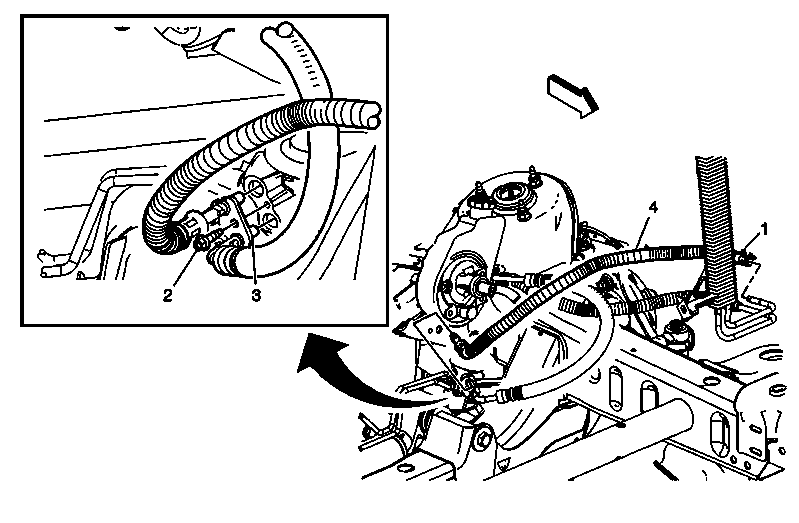

Fig 1: Power Steering Gear Outlet Pipe/Hose (Gas Without Hydroboost)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the engine shield. Refer to Engine Shield Replacement .
1	Power Steering Gear Outlet Hose Clamp Procedure Place drain pans under the vehicle as needed.
2	Power Steering Gear Inlet Hose Retaining Plate Bolt CAUTION: Refer to Fastener Caution . Tighten 12 N.m (106 lb in)
3	Power Steering Gear Inlet Hose Retaining Plate
4	Power Steering Gear Outlet Hose CAUTION: Refer to Power Steering Hose Disconnected Caution . Procedure Disconnect the power steering gear outlet hose from the power steering fluid cooler. Pull the power steering gear outlet hose out of the steering gear. Keep all open connections in the power steering system clean and free of debris. Use the remover/installer J 44586 to replace the steering gear seals if necessary. Fill and bleed the power steering system. Refer to Power Steering System Bleeding . Special Tools J 44586 Power Steering Gear Oil Seal Remover/Installer
