Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fascia grille. Refer to Fascia Grille Replacement (Z71) , Fascia Grille Replacement (Escalade) , Fascia Grille Replacement (GMC Denali XL) , Fascia Grille Replacement (Suburban, Tahoe) , Fascia Grille Replacement (GMC Yukon Hybrid 2 Mode) , Fascia Grille Replacement (Yukon) .
  2. Remove the radiator grille reinforcement support, if equipped. Refer to Radiator Grille Reinforcement Support Replacement .
  3. Remove as much power steering fluid as possible from the power steering fluid reservoir.
  4. Place drain pans under the vehicle as needed.

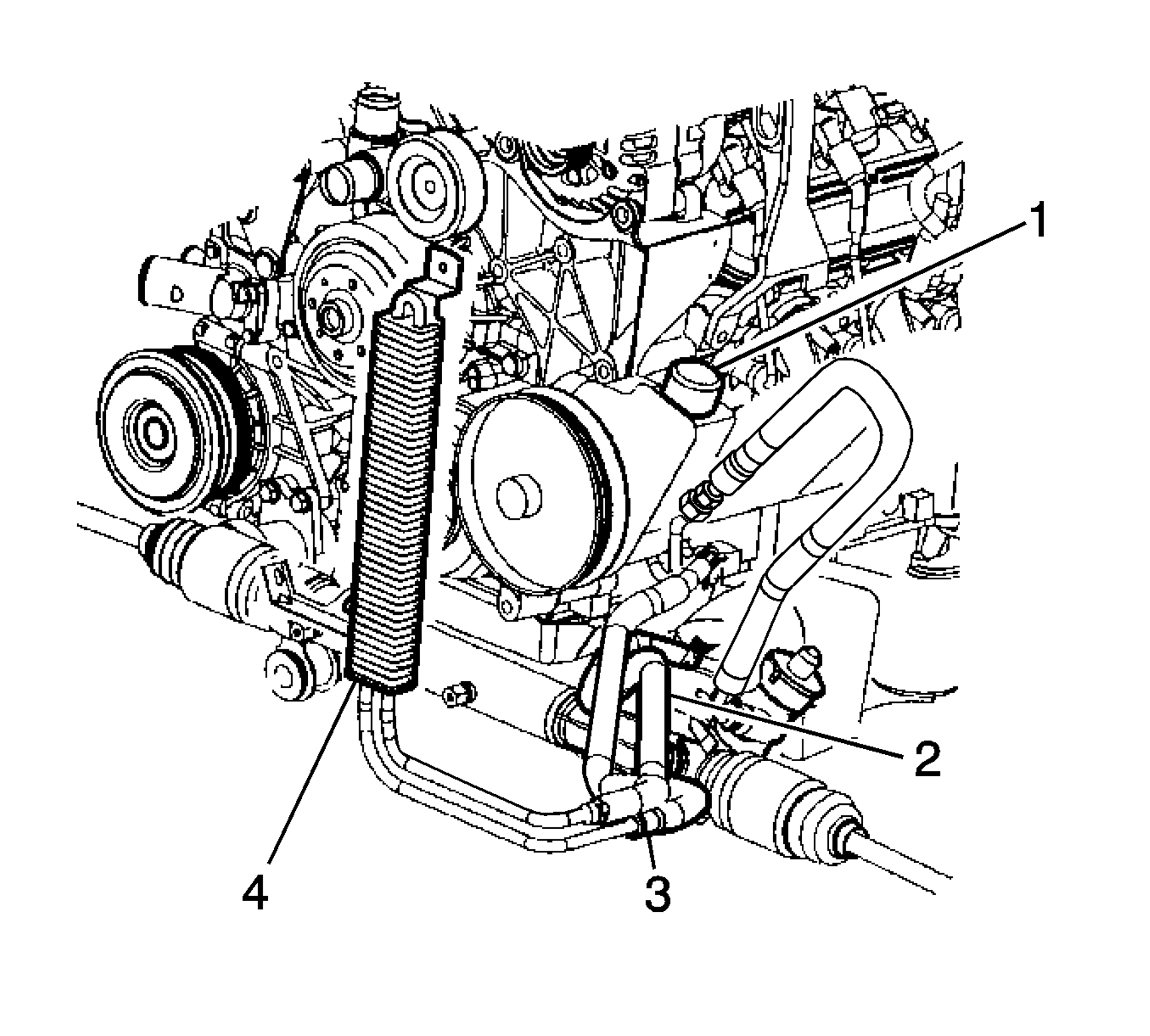

    5. Fig 1: Power Steering Pump And Components
    GM1861214Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Power Steering Hose Disconnected Caution .

  5. Disconnect the power steering gear outlet hose (2) from the power steering fluid cooler (4).
  6. Disconnect the power steering fluid cooler hose (3) from the power steering pump (1).
    7. Fig 2: Power Steering Cooler To Core Support
    GM686121Courtesy of GENERAL MOTORS CORP.
  7. Remove the power steering fluid cooler bolts (2) from the power steering fluid cooler.
  8. Remove the power steering fluid cooler from the vehicle.
