Special Tools
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
| Illustration | Tool Number/Description |
|---|---|
| J 2222-C Wheel Bearing Race Installer Outer |
|
| J 2619-01 Slide Hammer |
|
| J 7872 Magnetic Base Dial Indicator |
|
| J 8001 Dial Indicator Set |
|

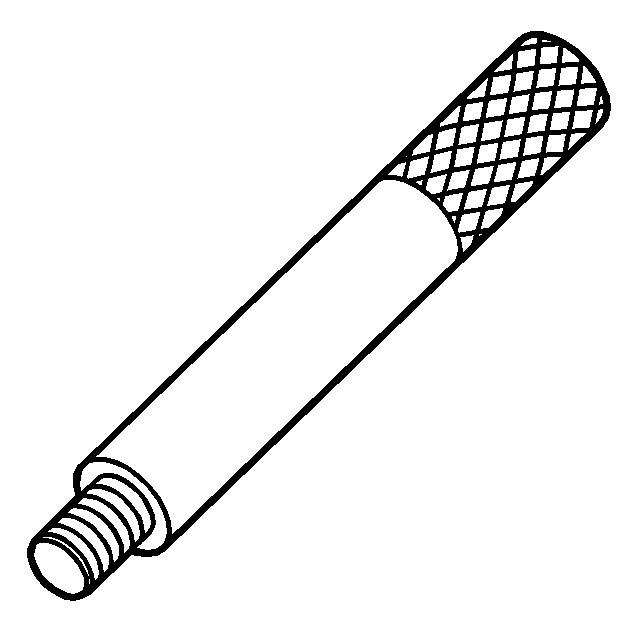

| J 8092 Driver Handle |
|
| J 8107-4 Side Bearing Puller Pilot |
|
| J 8592 Driver Handle |
|
| J 8614-01 Flange and Pulley Holding Tool |
|
| J 21128 Axle Pinion Oil Seal Installer |
|
| J 21777-B Pinion Setting Gauge Kit |
|
| J 21784 Side Bearing Installer |
|
| J 22306 Pinion Cup Bearing Installer-Rear |
|
| J 22536 Pinion Driver |
|
| J 22779 Side Bearing Backlash Gauge |
|
| J 22888-D Side Bearing Remover Kit |
|
| J 22912-B Bearing Puller |
|
| J 24426 Wheel Bearing Race Installer- Outer |
|
| J 24427 Hub Outer Bearing Race Installer |
|
| J 24429 Side Bearing Backlash Spanner |
|
| J 25025 Guide Pins |
|
| J 25588 Side Bearing Shim Installer |
|
| J 26252 Locking Differential Governor Remover |
|
| J 29710 Differential Side Bearing Installer |
|
| J 34672 Depth Micrometer |
|
| J 34673 Flat Gauge Bar |
|
| J 44419 Hub Outer Bearing Race Installer |
|
| J 44420 Differential Bearing and Hub Seal Installer |
|
| J 44685 Rear Axle Seal and Bearing Remover |
|
| J 45108 Pinion Setting Gauge Block |
|
| J 45232 Differential Side Bearing Adjuster Needle Bearing Installer |
|
| J 45240 Pinion Bearing Installer |
|
| J 45857 Tone Wheel and/or Bearing Remover |
|
| J 45859 Axle Remover |
|
