Locking Differential Clutch Disc Assembly Assemble (8.6 Inch Axle)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

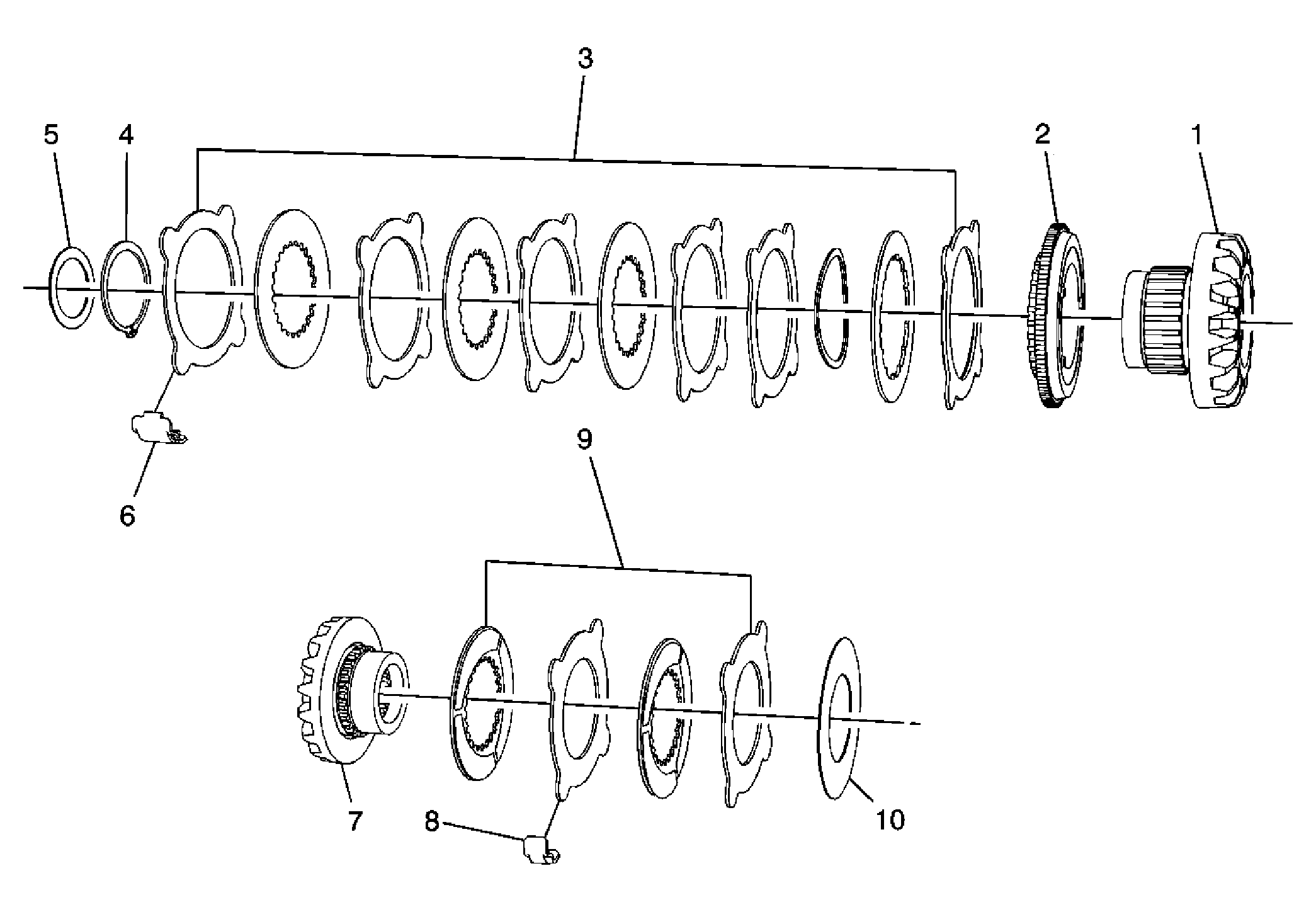

Locking Differential Clutch Disc Assembly Assemble (8.6 Inch Axle)
| Callout | Component Name |
|---|---|
| Assemble | |
| 1 | Locking Differential Side Gear |
| 2 | Locking Differential Cam |
| 3 | Locking Differential Clutch Disc Set |
| 4 | External Snap Ring Retainer |
| 5 | Locking Differential Clutch Disc Thrust Washer |
| 6 | Locking Differential Clutch Disc Guide |
| 7 | Locking Differential Side Gear |
| 8 | Locking Differential Clutch Disc Set |
| 9 | Locking Differential Clutch Disc Guide |
| 10 | Differential Side Gear Shim |
