Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

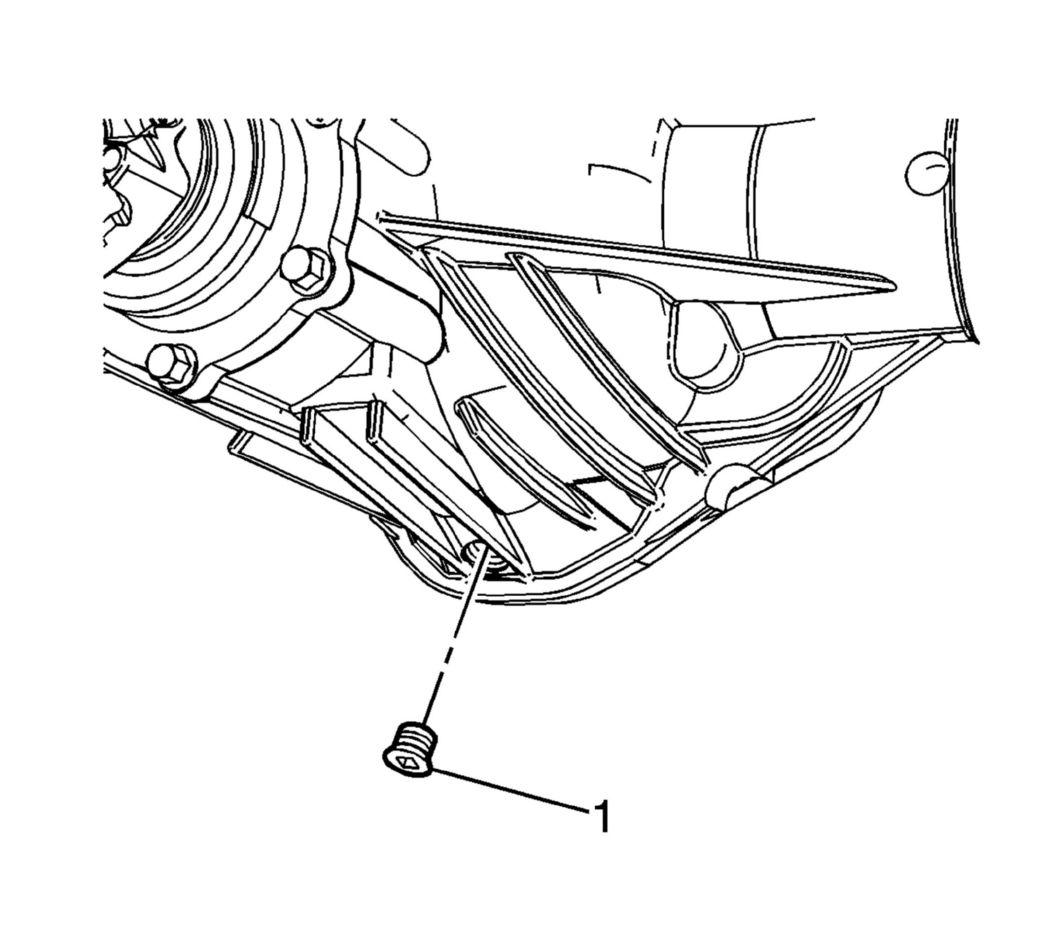

Fig 1: Axle Drain Plug

Courtesy of GENERAL MOTORS CORP.

CAUTION:

Refer to Fastener Caution .

Install the rear axle drain plug (1) and tighten to 33 N.m (24 lb ft).
Fill the rear axle with the proper fluid. Refer to Approximate Fluid Capacities , and Fluid and Lubricant Recommendations .

Fig 2: Fill Plug

Courtesy of GENERAL MOTORS CORP.

Install the fill plug (1) and tighten to 33 N.m (24 lb ft).
Remove the support and lower the vehicle.
