Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
    2. NOTE:

    Support the caliper with heavy mechanic's wire or equivalent. DO NOT disconnect the hydraulic brake hose from the caliper.

  2. Remove the brake caliper from the caliper bracket. Refer to Front Brake Caliper Replacement (1500 Series) , Front Brake Caliper Replacement (2500 Series) .

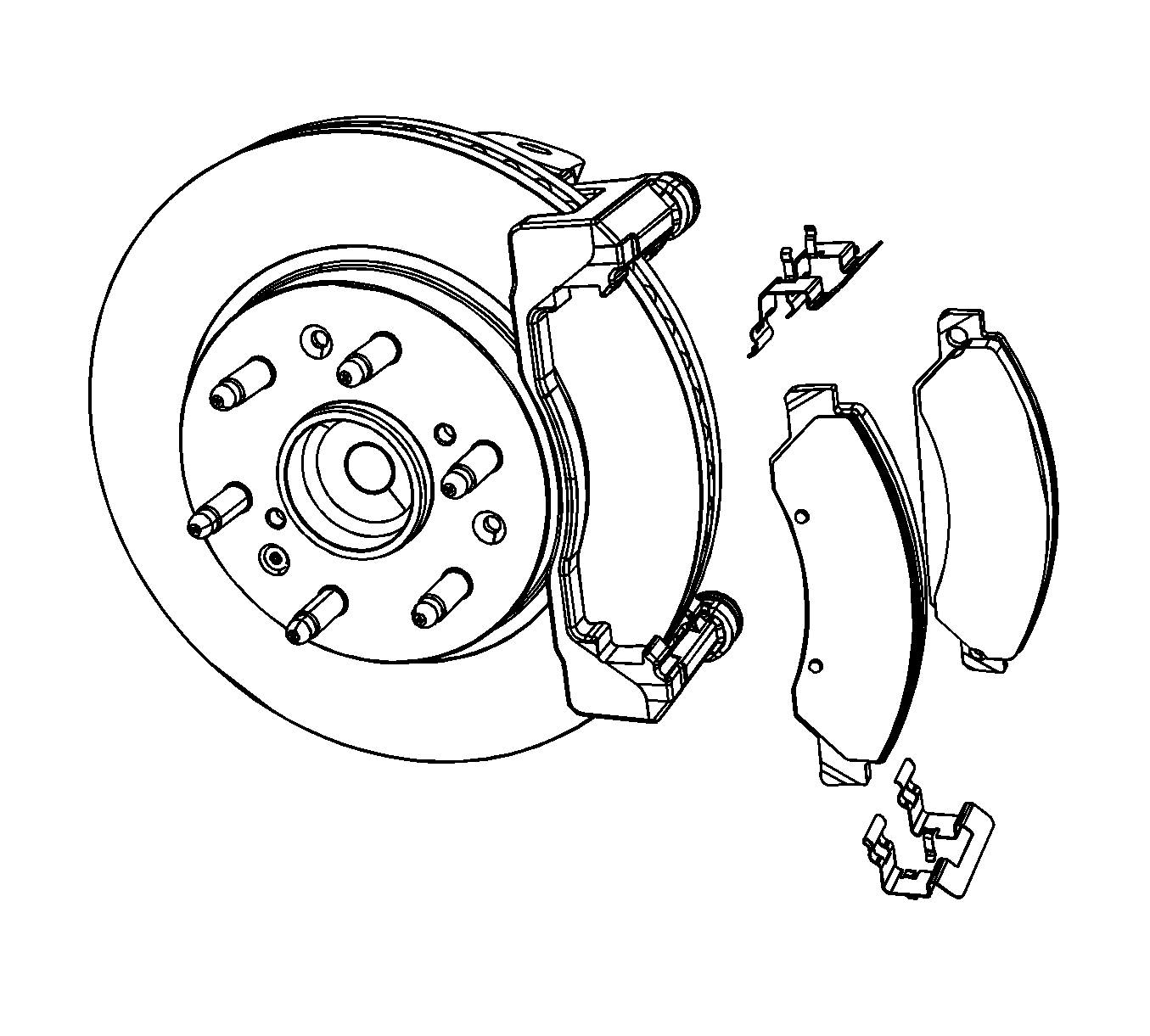

    3. Fig 1: Caliper Bracket And Pads
    GM1479405Courtesy of GENERAL MOTORS CORP.
  3. Remove the brake pads from the caliper bracket.
  4. Remove the brake pad retainers.
    5. Fig 2: Caliper Pins, Seals And Bushings
    GM1479416Courtesy of GENERAL MOTORS CORP.
  5. Remove the caliper pins, seals, and bushings from the caliper bracket.
