Front Brake Hose Replacement (JD9)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

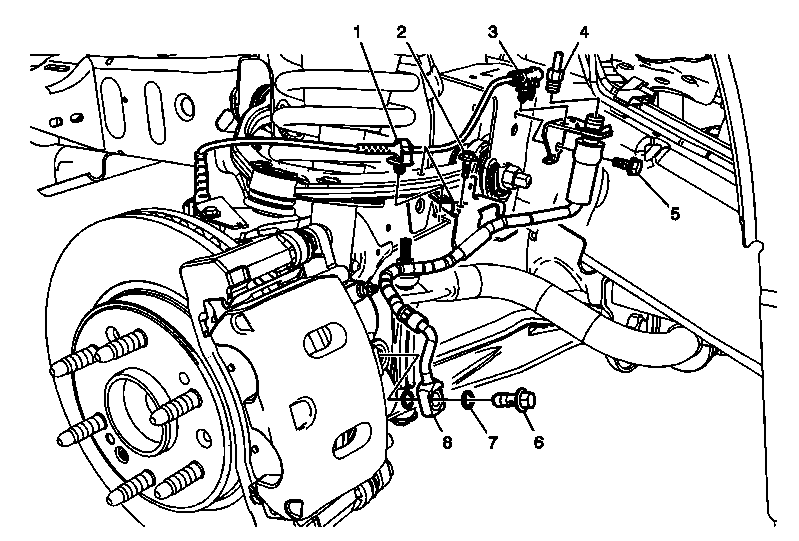

Fig 1: Front Brake Hose (JD9, JF3, JF7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . WARNING: Refer to Brake Fluid Irritant Warning . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Wheel Speed Sensor Wire Clip
2	Hose Bracket to Control Arm Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Wheel Speed Sensor Wire Clip
4	Brake Pipe Fitting Procedure Remove any dirt or debris from the brake pipe fitting. Cap the brake pipe fitting to prevent brake fluid loss and contamination. Tighten 25 N.m (18 lb ft)
5	Hose Bracket to Frame Bolt Tighten 9 N.m (80 lb in)
6	Brake Hose Fitting Bolt Tighten 40 N.m (30 lb ft)
7	Brake Hose Fitting Gasket (Qty: 2) Procedure Discard the brake hose fitting gaskets. Install 2 new brake hose fitting gaskets.
8	Brake Hose Procedure Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Pressure) , Hydraulic Brake System Bleeding (Manual) .
