Brake Fluid Level Indicator Switch Replacement (Two-mode Hybrid)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

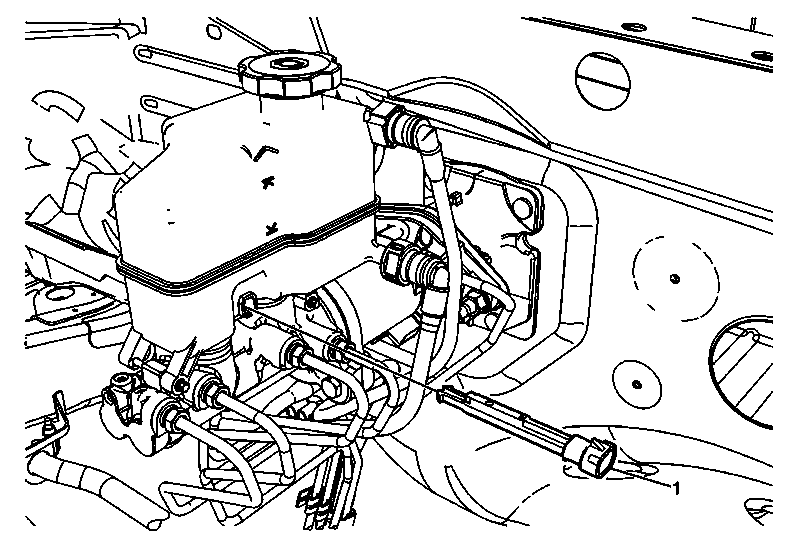

Fig 1: Brake Fluid Level Indicator Switch (Two-mode Hybrid)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Place the ignition switch in the OFF position. Disconnect the brake fluid level sensor electrical connector.
1	Brake Fluid Level Sensor TIP: Compress the brake fluid level sensor locking tabs on the opposite side of the master cylinder reservoir to remove.

Callout

Component Name

Preliminary Procedures

Place the ignition switch in the OFF position.
Disconnect the brake fluid level sensor electrical connector.

Brake Fluid Level Sensor
TIP: Compress the brake fluid level sensor locking tabs on the opposite side of the master cylinder reservoir to remove.
