Brake Fluid Level Indicator Switch Replacement (JD9, JH6)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

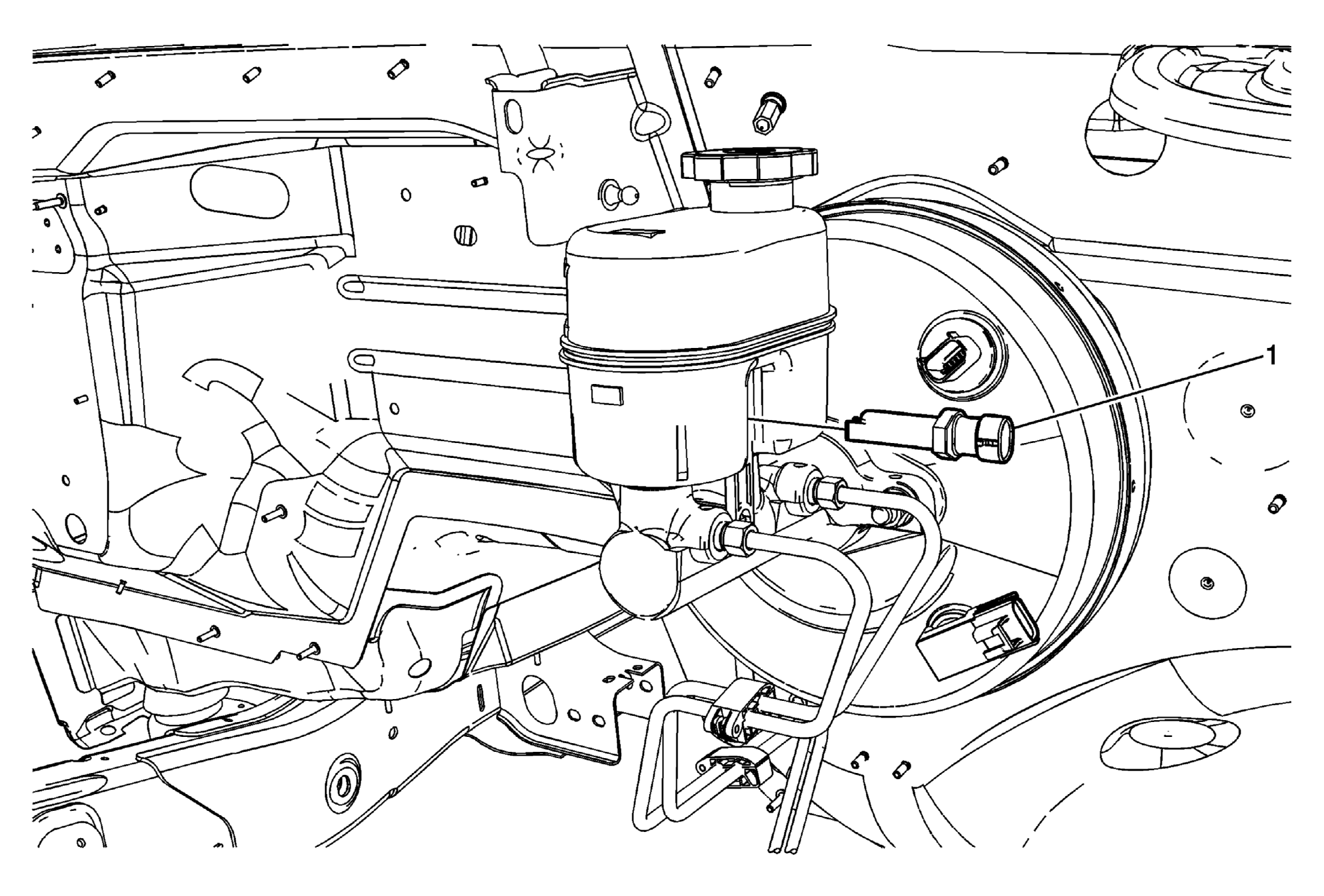

Fig 1: Brake Fluid Level Indicator Switch (JD9, JH6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Disconnect the master cylinder fluid level sensor electrical connector.
1	Master Cylinder Fluid Level Sensor TIP: Compress the locking tabs on the sensor to release the sensor from the brake master cylinder reservoir.
