Charging (HP2)

WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

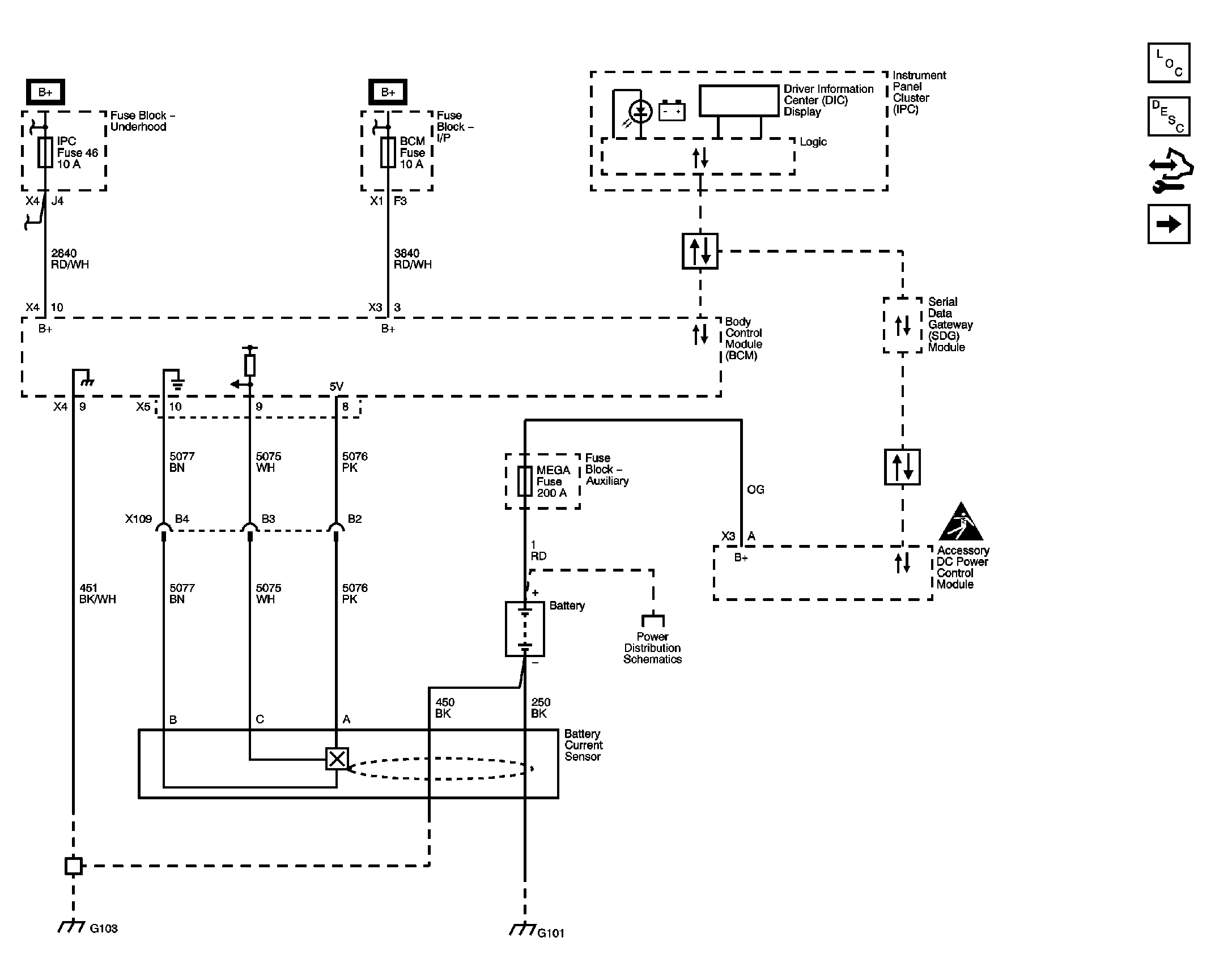

Fig 1: Charging (HP2) Wiring Schematic
GM2398347Courtesy of GENERAL MOTORS CORP.
