Junction Block- Right I/P X6

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

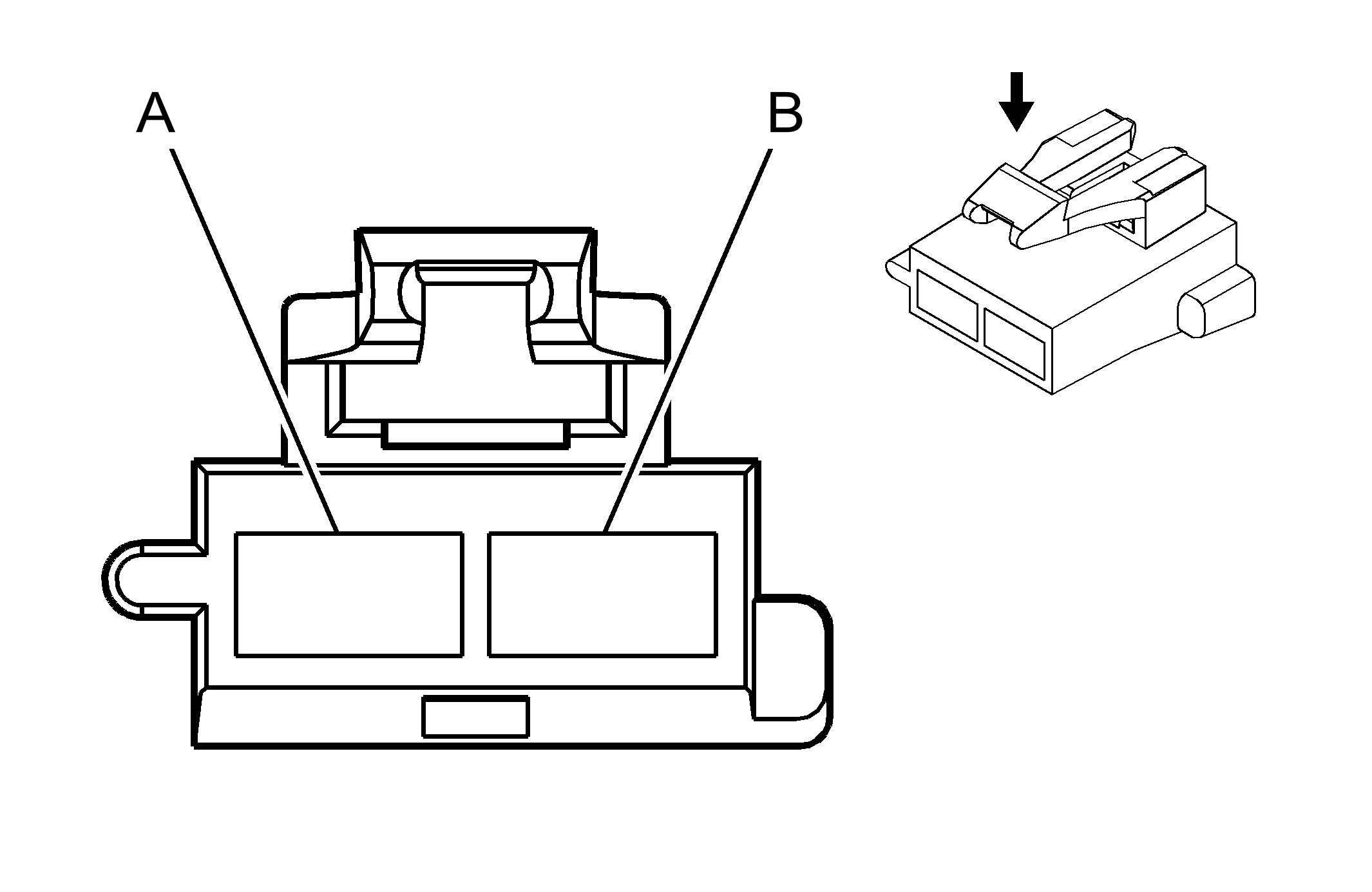

Fig 1: Junction Block - Right I/P X6 Connector End View
GM493694Courtesy of GENERAL MOTORS CORP.
Junction Block- Right I/P X6

Pin Wire Circuit Function
A 3 RD 542 Battery Positive Voltage (CJ2)
5 RD 542 Battery Positive Voltage (CJ3)
B 5 BK 1050 Ground
Connector Part Information
  • Harness Type: HVAC
  • OEM Connector: 12129939
  • Service Connector: 15306380
  • Description: 2-Way F Metri-Pack 630 Series (BK)

Terminal Part Information
  • Terminal/Tray: 12084590/3
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
