Fuse Block- Underhood X6

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

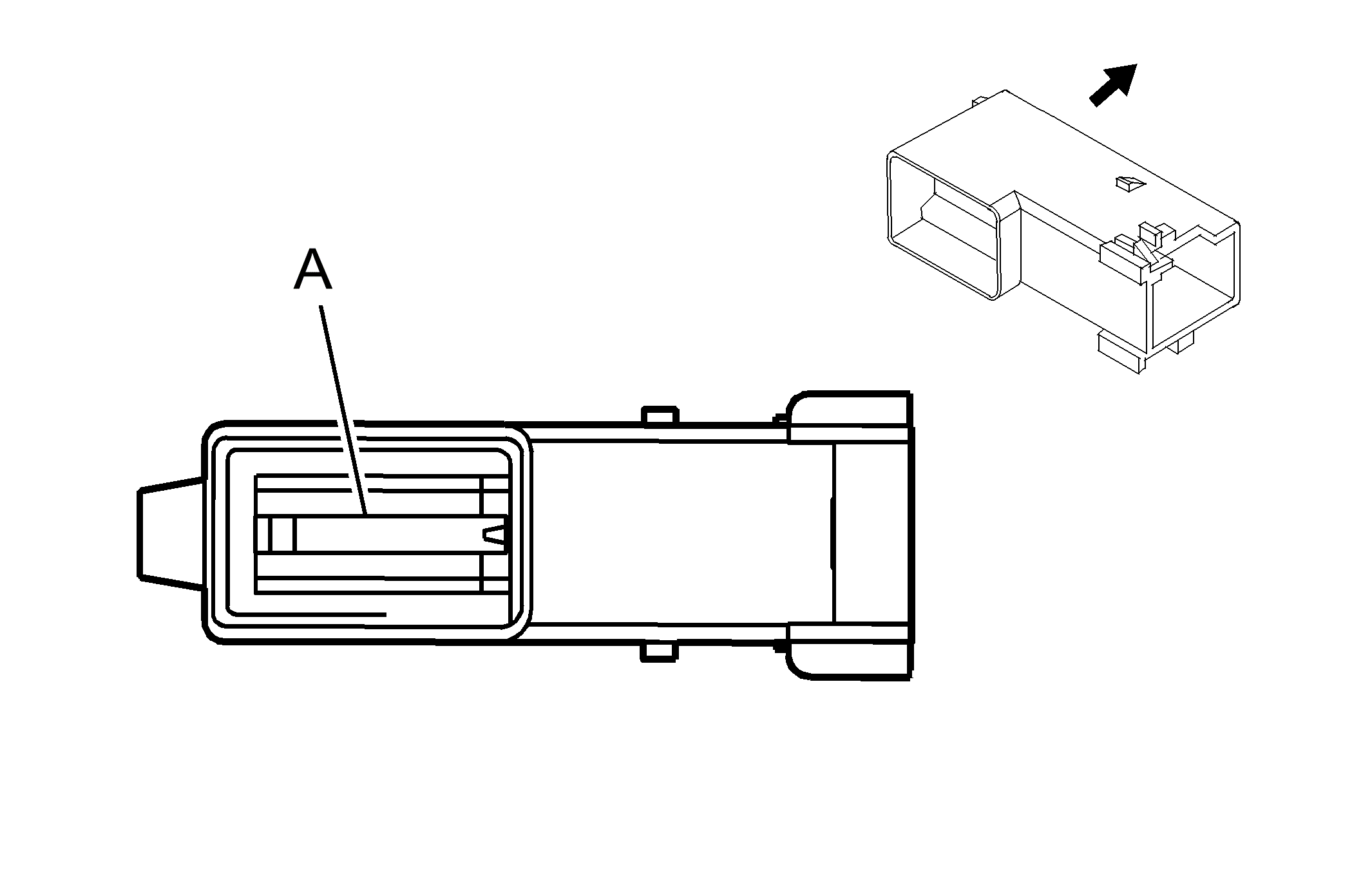

Fig 1: Fuse Block - Underhood X6
GM1665661Courtesy of GENERAL MOTORS CORP.
Fuse Block- Underhood X6

Pin Wire Circuit Function
A 19 RD/BK 2 Battery Positive Voltage
Connector Part Information
  • Harness Type: Battery Cable
  • OEM Connector: 15488459
  • Service Connector: Service by Harness- See Part Catalog
  • Description: 1-Way F High Power Series (BK)
Terminal Part Information
  • Terminal/Tray: Service by Harness- See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
