Circuit Breaker- Police Power 3 (5W4 or PPV)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

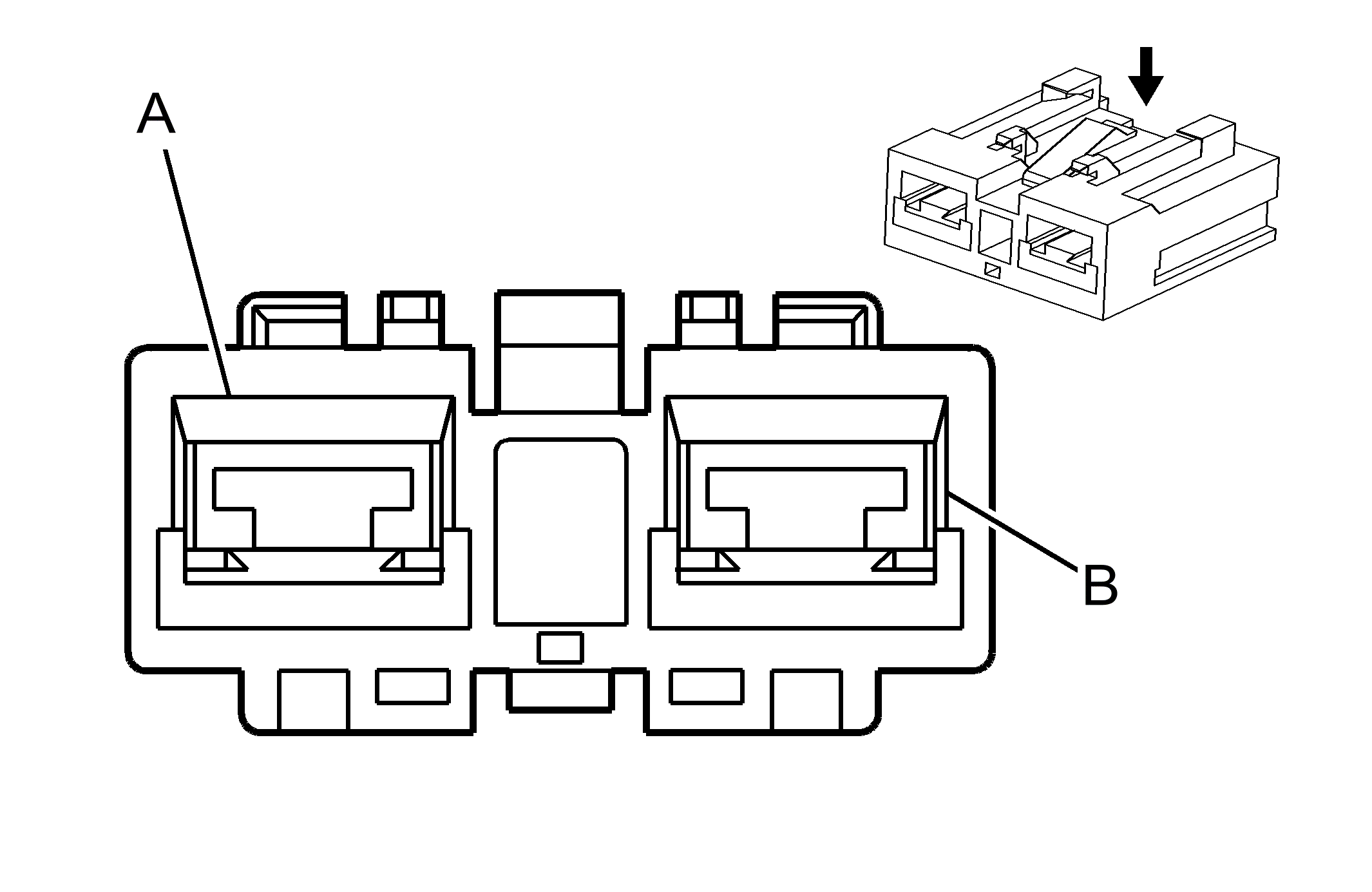

Fig 1: Circuit Breaker- Police Power 3 (5W4 or PPV) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
A	3 D-BU/BK	202	Battery Positive Voltage
B	5 RD/BK	1542	Battery Positive Voltage

Connector Part Information

Harness Type: Accessory Power
OEM Connector: 12110057
Service Connector: 12110057
Description: 2-Way F Metri-Pack 800 Series (BK)

Terminal Part Information

Terminated Lead: 13575718
Release Tool: J-38125-558
Diagnostic Test Probe: J-35616-44 (YE)
Terminal/Tray: 12110127/19
Core/Insulation Crimp: F/G
