Heated/Cooled Seat Schematics

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Heated Driver Seat Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: Heated Passenger Seat Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: Left Rear Heated Seat Schematic

Courtesy of GENERAL MOTORS CORP.

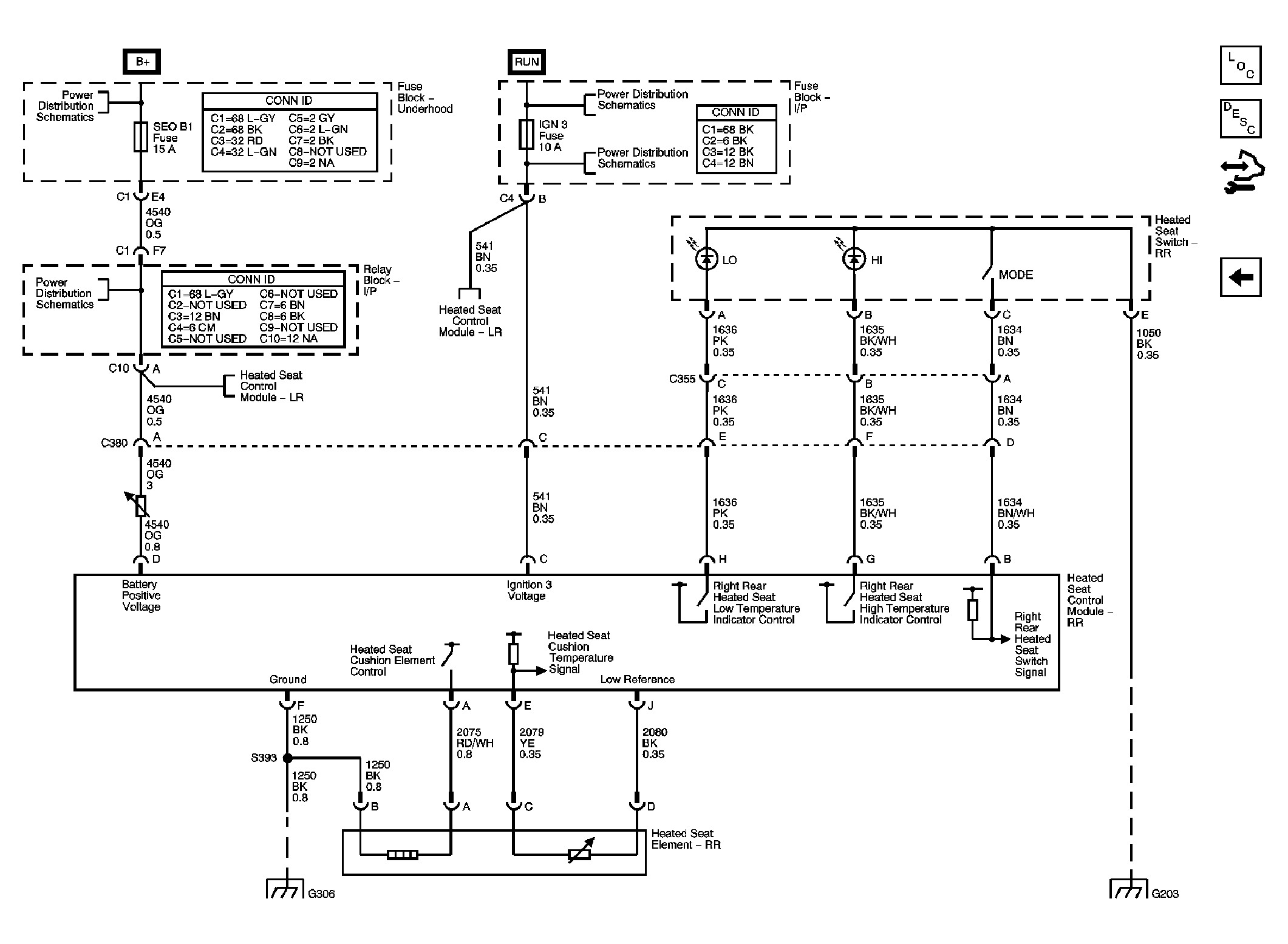

Fig 4: Right Rear Heated Seat Schematic

Courtesy of GENERAL MOTORS CORP.
