EAP and MBEC 1 Fuses; AUX WDO, DRIVER SEAT 2, PASS SEAT 1 and RT DOORS Circuit Breakers

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

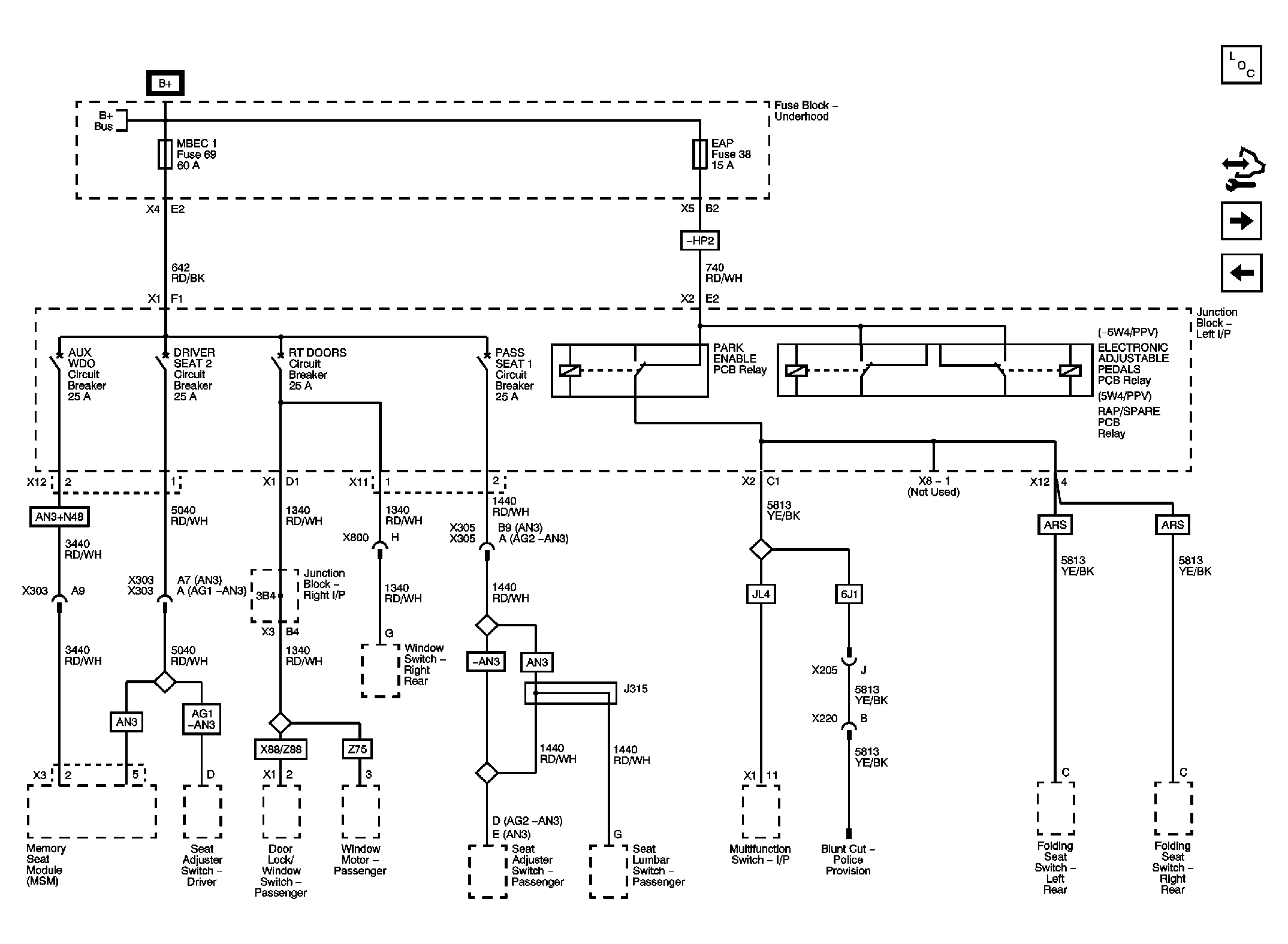

Fig 1: EAP and MBEC 1 Fuses; AUX WDO, DRIVER SEAT 2, PASS SEAT 1 and RT DOORS Circuit Breakers Wiring Schematic
GM2398245Courtesy of GENERAL MOTORS CORP.
