Liftgate Actuator Rod Replacement (Except Avalanche and EXT Escalade)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

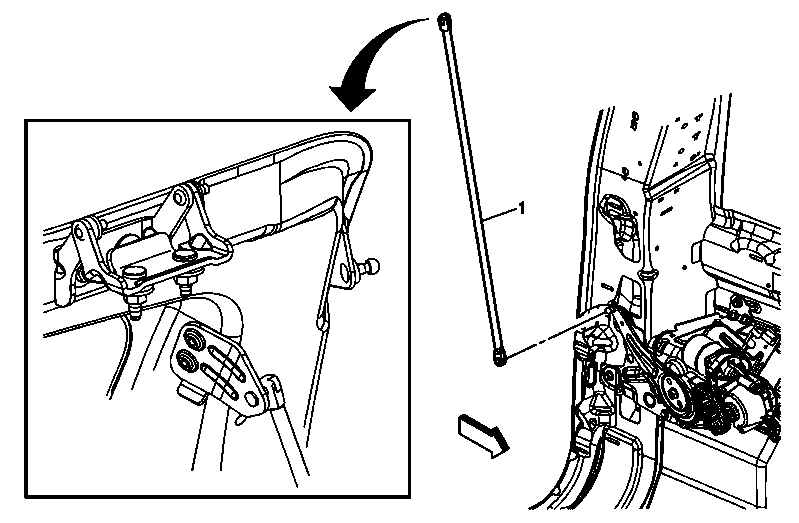

Fig 1: Liftgate Actuator Rod (Except Avalanche and EXT Escalade)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the left side trim panel. Refer to Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/o E61) , Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/o E61) .
1	Liftgate Actuator Rod Release the lock tabs on the actuator rod. Ensure the clip is fully seated when rod is reinstalled. If clip cannot be fully seated, a new rod should be installed.
