Video Signal Splitter X1 (X88 or Z88, with DNU)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

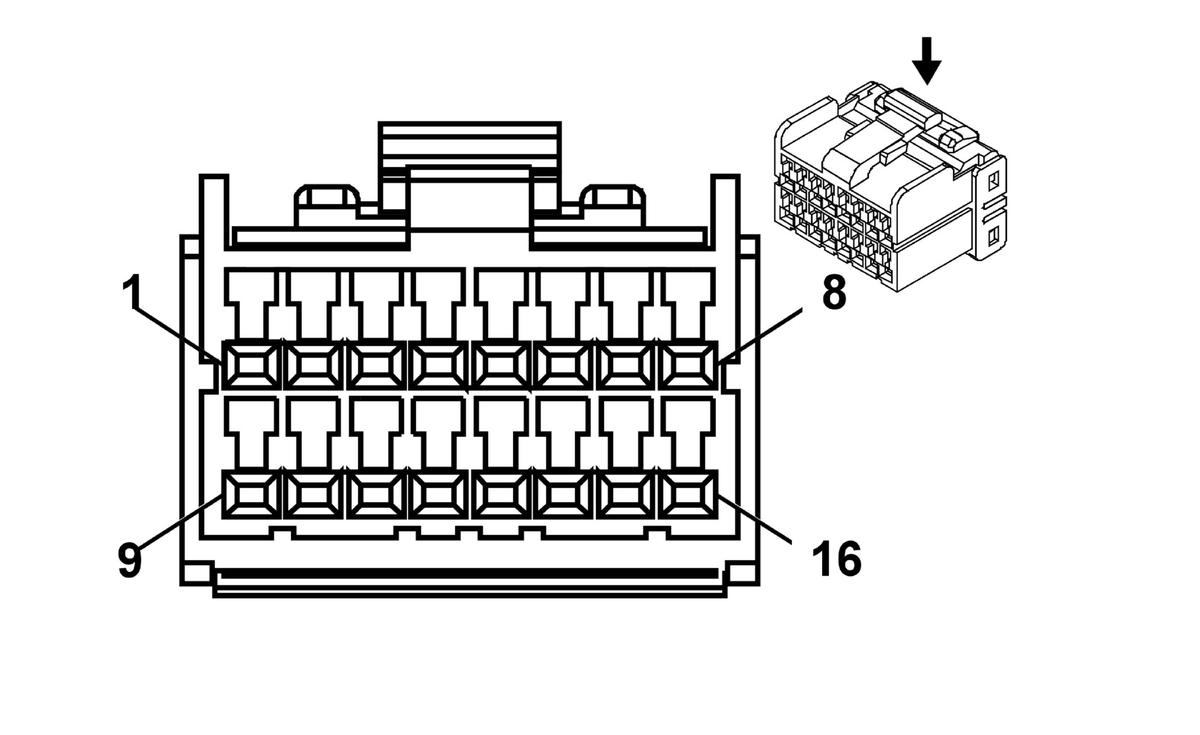

Fig 1: Video Signal Splitter X1 (X88 or Z88, with DNU) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.35 D-GN	6975	DVD Video Signal (+)
2	0.5 BARE	6976	Drain Wire
3	-	-	Not Used
4	0.35 PK	5829	Infrared Module Control
5	0.35 PK	5829	Infrared Module Control
6	0.5 RD/WH	1540	Battery Positive Voltage
7	0.35 BK	2550	Ground
8	0.35 PK/BK	5844	Video Bright Signal
9	0.35 WH/BK	5335	DVD Video Signal (-)
10	-	-	Not Used
11	0.35 WH	7066	Entertainment Remote Enable Signal
12-13	-	-	Not Used
14	0.5 BK	2550	Ground
15	-	-	Not Used
16	0.35 L-GN/BK	5845	Video Mode Signal

Connector Part Information

Harness Type: Headliner
OEM Connector: 12124255
Service Connector: 15775805
Description: 16-Way F 040 Series (BK)

Terminal Part Information

Terminated Lead: Service by Harness - See Part Catalog
Release Tool: J-38125-553
Diagnostic Test Probe: J-35616-16 (L-GN)
Terminal/Tray: 173681-2/17
Core/Insulation Crimp: E/4
