Park/Turn Signal Lamp- Right (Z88)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

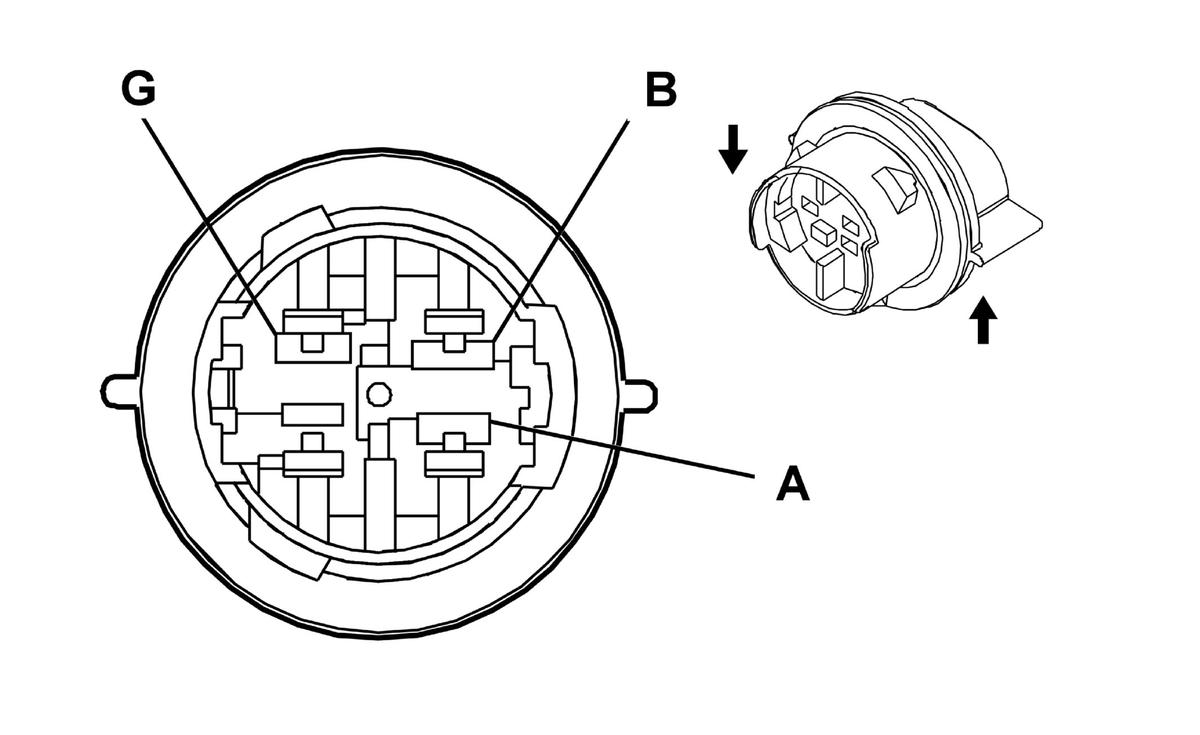

Fig 1: Park/Turn Signal Lamp- Right (Z88) Connector End View
GM1717007Courtesy of GENERAL MOTORS CORP.
Park/Turn Signal Lamp- Right (Z88)

Pin Wire Circuit Function
A 0.35 BN 2609 Right Front Park Lamp Control
0.35 BN 2609 Right Front Park Lamp Control
B 0.8 L-BU 1315 Right Front Turn Signal Lamp Control
G 1 BK 250 Ground
1 BK 250 Ground
Connector Part Information
  • Harness Type: Right Front Lamp
  • OEM Connector: 16530670
  • Service Connector: Service by Harness- See Part Catalog
  • Description: 3-Way F Lamp Socket Base (BK)
Terminal Part Information
  • Terminal/Tray: Service by Harness- See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
