Tilt Motor Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

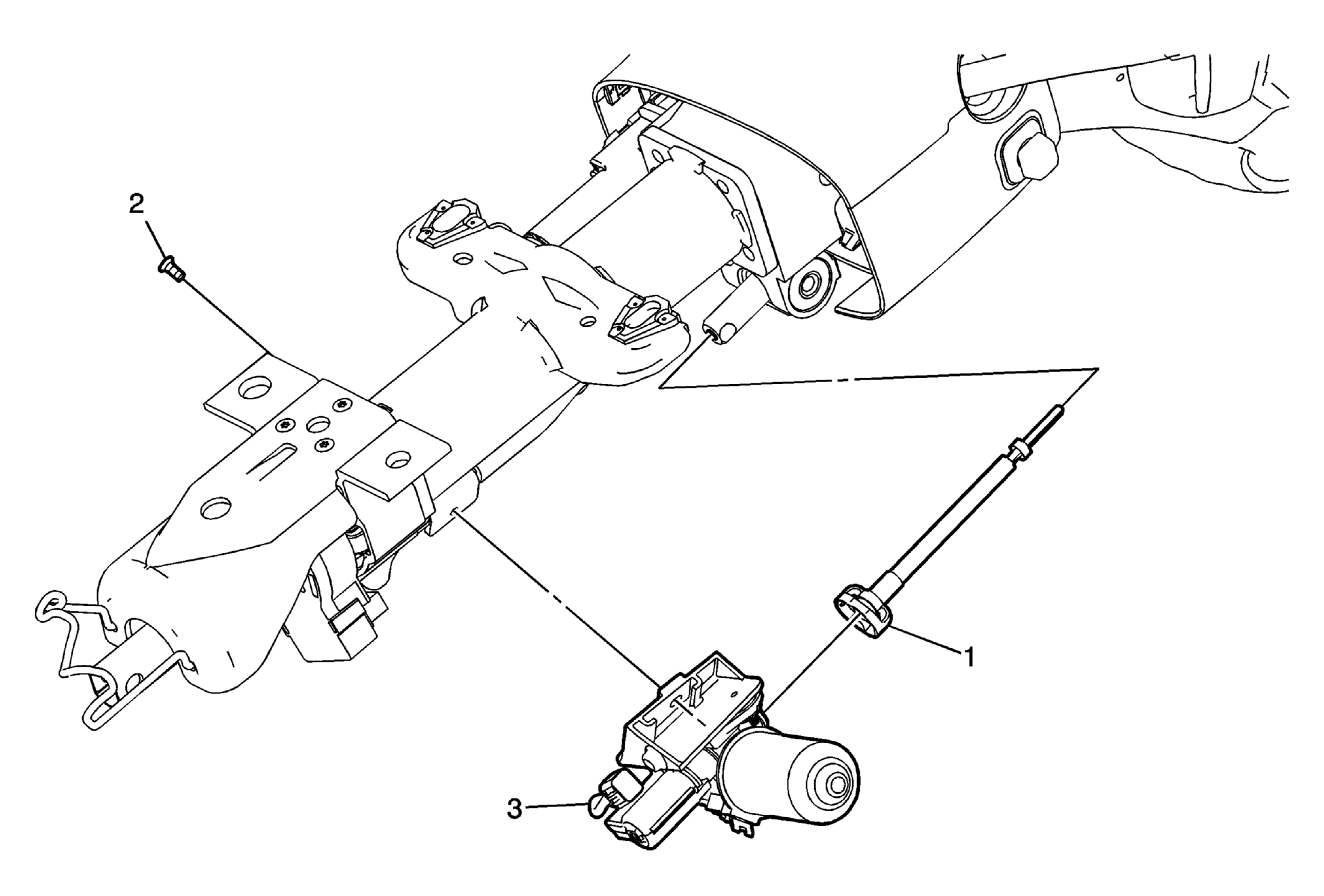

Fig 1: Steering Column Tilt Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the automatic transmission shift lock control actuator. Refer to Automatic Transmission Shift Lock Control Actuator Replacement .
1	Tilt Motor Cable Procedure Squeeze the sides of the connector at each end to release the tilt motor cable assembly.
2	Tilt Motor Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Tilt Motor Procedure Disconnect any electrical connectors as needed. The steering column tilt head must be tilted straight to the steering column assembly before removing or installing the tilt motor or misalignment may occur. After repairs, calibrate the power tilt steering column. Refer to Power Tilt Steering Column Calibration .
