Steering Wheel Spoke Lower Cover Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

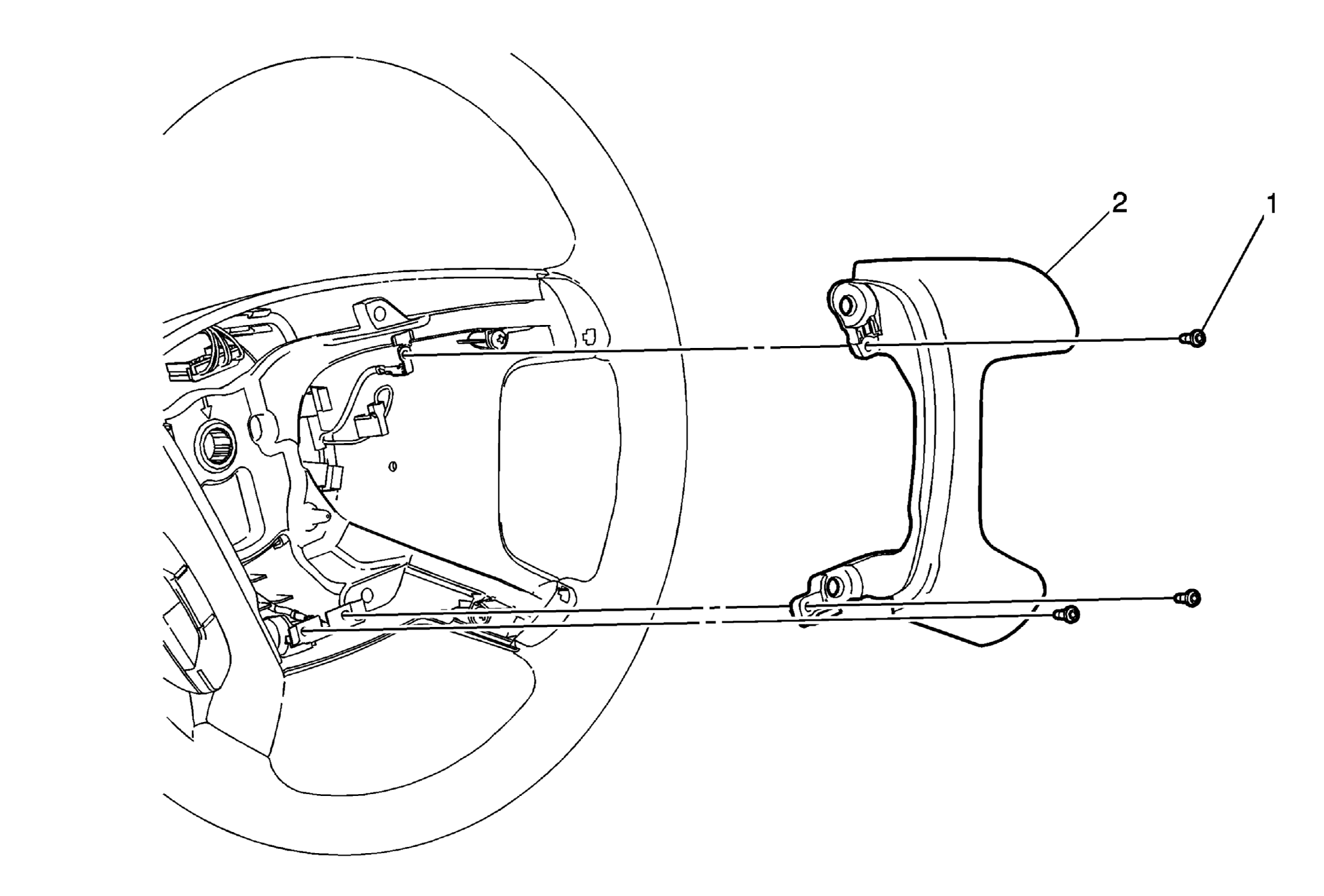

Fig 1: Steering Wheel Lower Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the steering wheel horn switch. Refer to Steering Wheel Horn Switch Replacement .
1	Steering Wheel Lower Cover Bolt CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Steering Wheel Lower Cover Procedure Transfer any steering wheel control switch assemblies as needed. Refer to Steering Wheel Control Switch Assembly Replacement .
