Steering Wheel Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

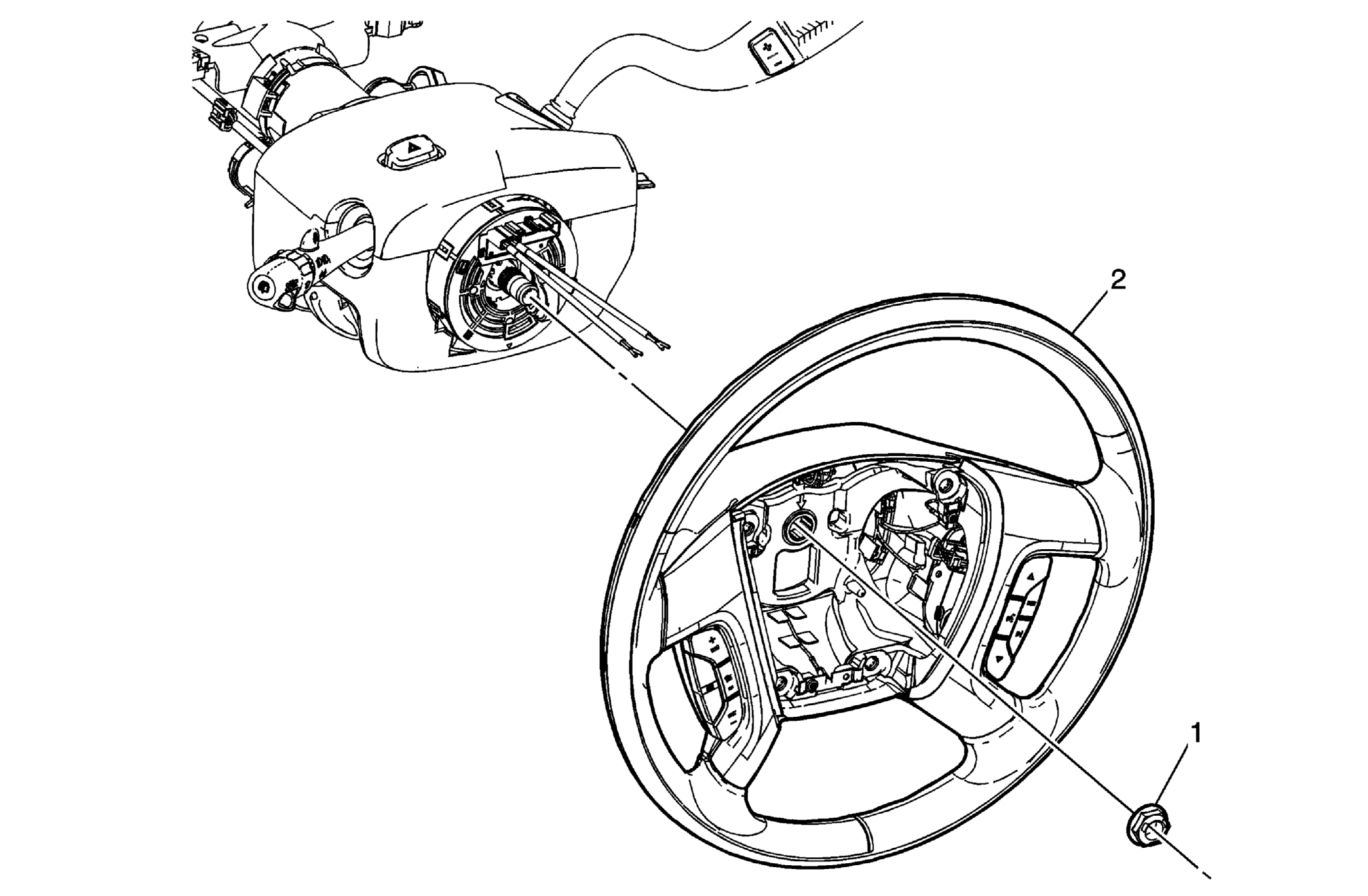

Fig 1: Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Nut CAUTION: Refer to Fastener Caution . Tighten 41 N.m (30 lb ft)
2	Steering Wheel CAUTION: Do not hammer on the end of the steering column shaft. Hammering could loosen the plastic injections which maintain the steering column rigidity. Procedure Disconnect any electrical connectors as needed. Loosen the steering wheel nut until two to three threads are left engaged. Wiggle the steering wheel until the steering wheel disengages completely. Remove the steering wheel nut. Remove the steering wheel.

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .

Steering Wheel Nut

CAUTION:

Refer to Fastener Caution .

Tighten
41 N.m (30 lb ft)

Steering Wheel

CAUTION:

Do not hammer on the end of the steering column shaft. Hammering could loosen the plastic injections which maintain the steering column rigidity.

Procedure

Disconnect any electrical connectors as needed.
Loosen the steering wheel nut until two to three threads are left engaged.
Wiggle the steering wheel until the steering wheel disengages completely.
Remove the steering wheel nut.
Remove the steering wheel.
