Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

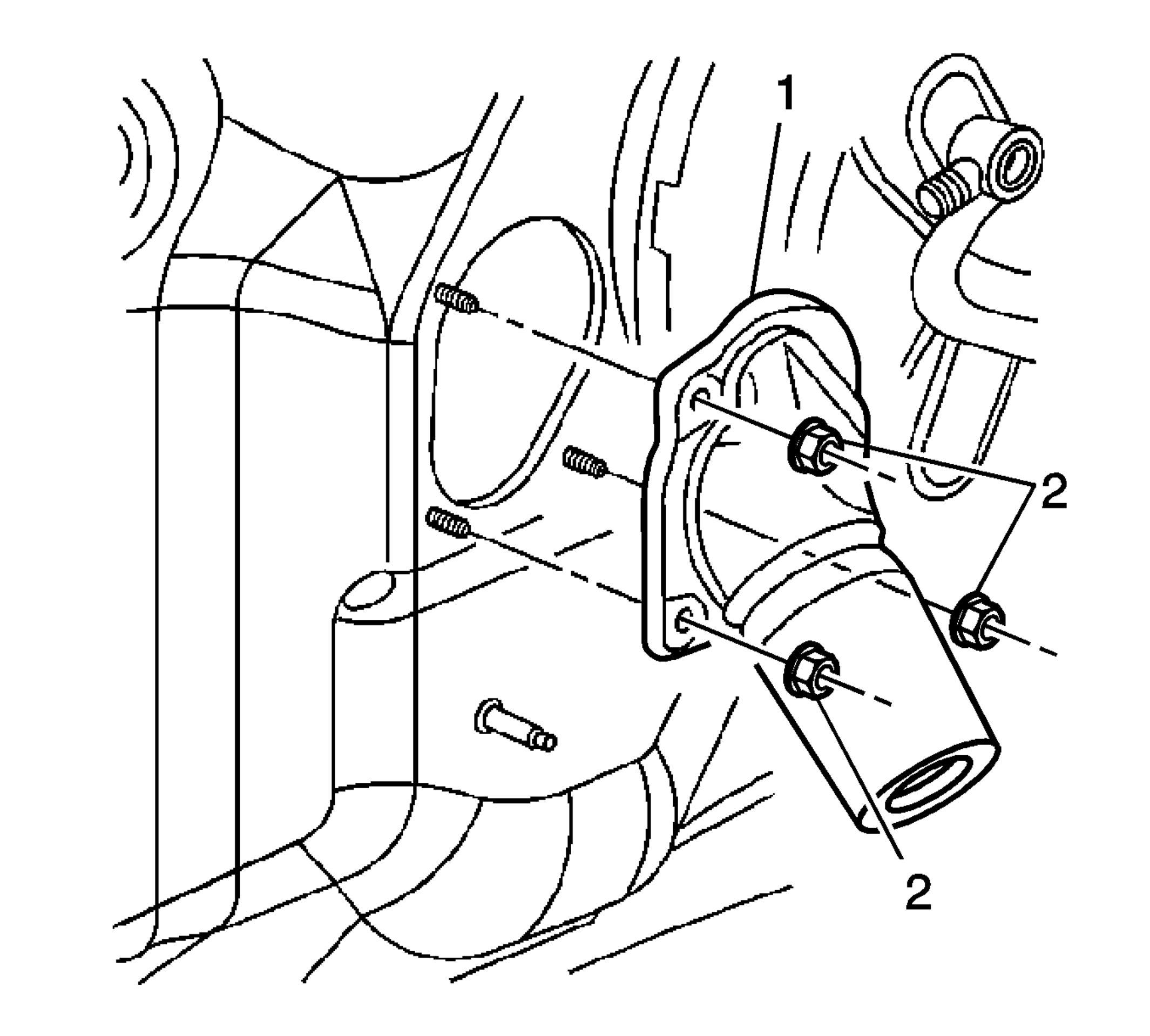

    Fig 1: Steering Column Seal And Nuts
    GM1861847Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the steering shaft coupling from the upper intermediate steering shaft. Refer to Steering Shaft Coupling Replacement .
  2. Remove the 3 steering column seal nuts (2).
  3. Remove the steering column seal (1) from the vehicle.
