Power Distribution Schematics

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

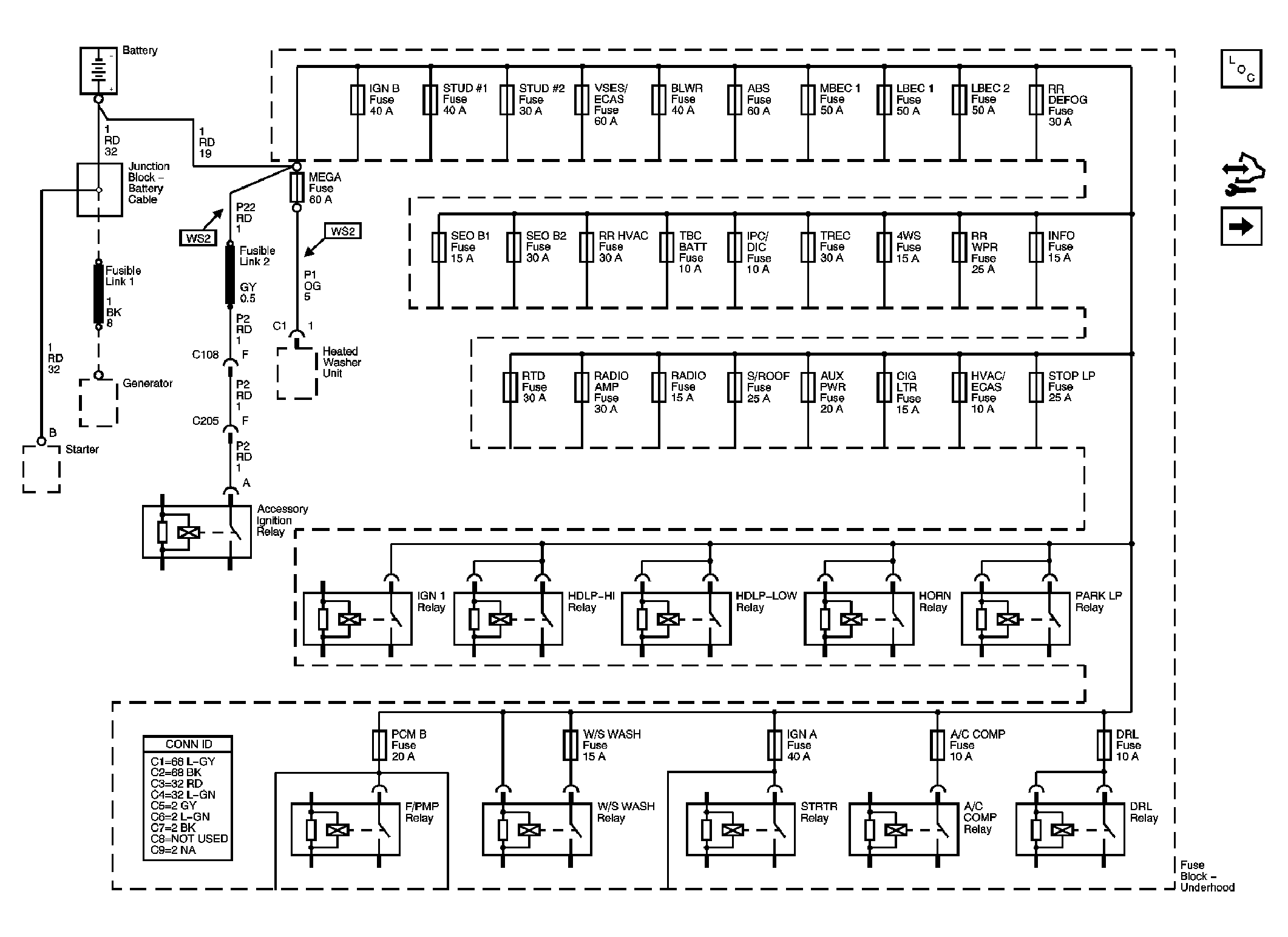

Fig 1: B+ Bus

Courtesy of GENERAL MOTORS CORP.

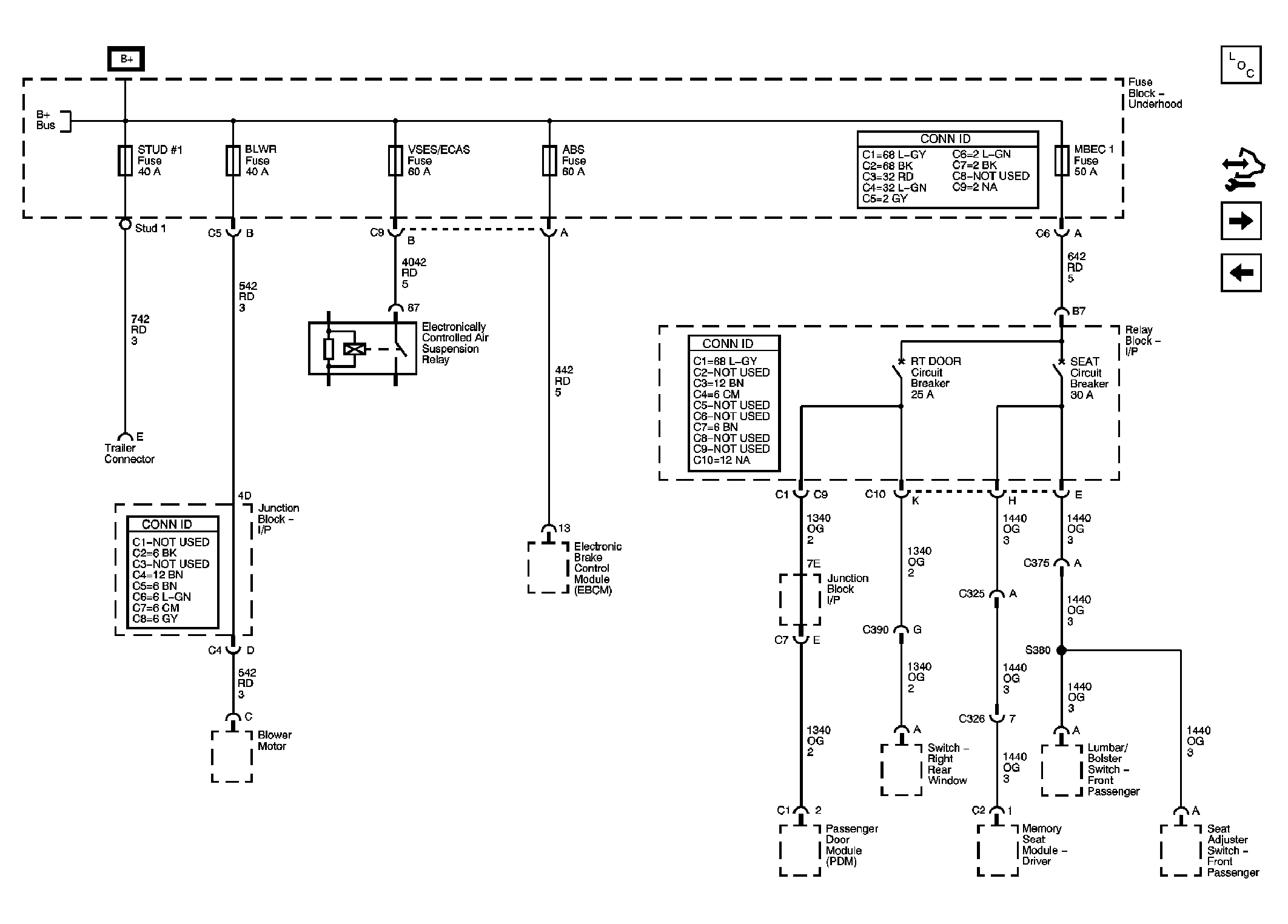

Fig 2: ABS, BLOWER, MBEC, STUD 1, STUD 2, and VSES/ECAS Fuses and RT DOORS and SEATS Circuit Breakers

Courtesy of GENERAL MOTORS CORP.

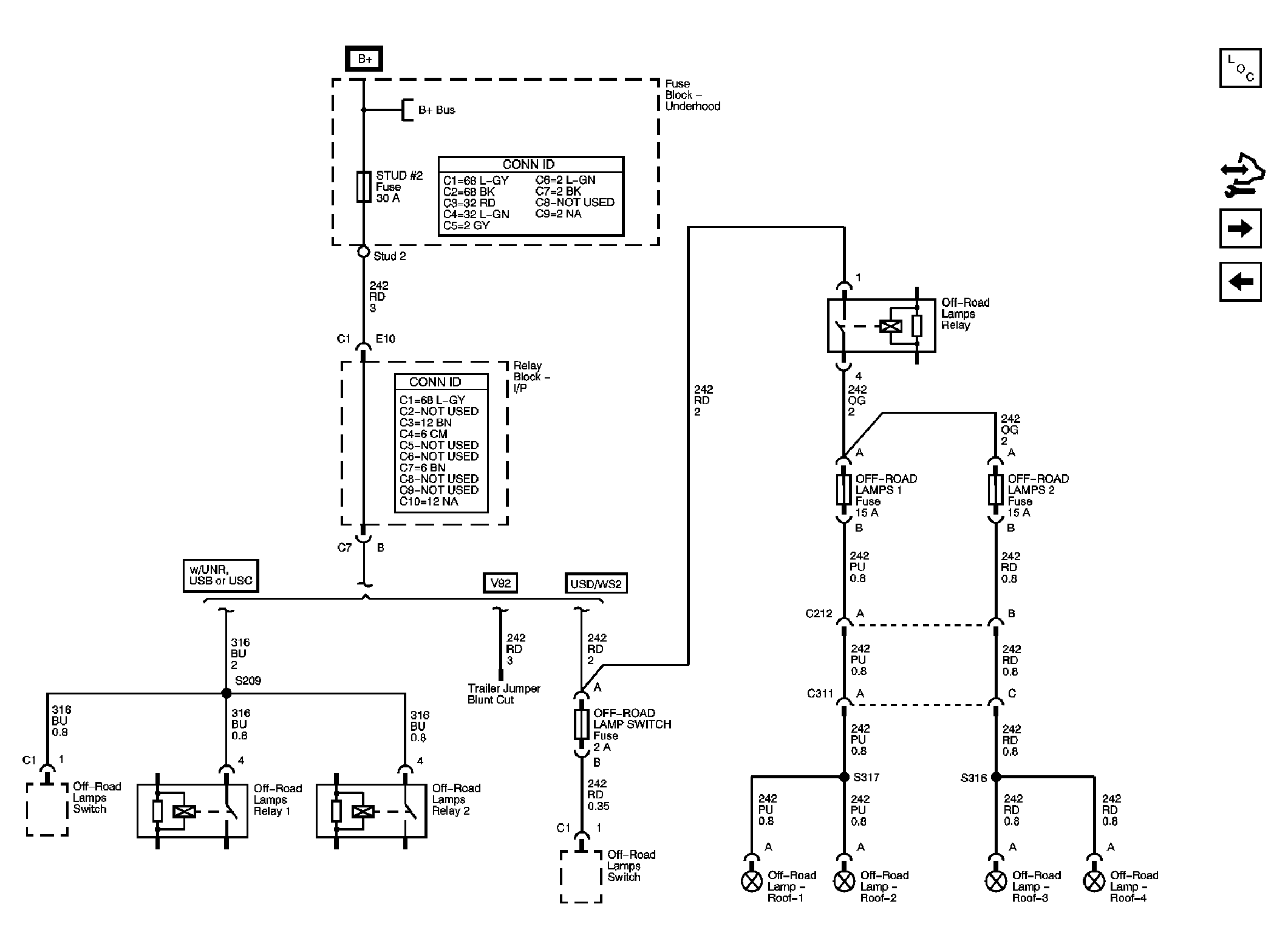

Fig 3: STUD #2, OFF-ROAD LAMP SWITCH, OFF-ROAD LAMPS 1, OFF-ROAD LAMPS 2 Fuses

Courtesy of GENERAL MOTORS CORP.

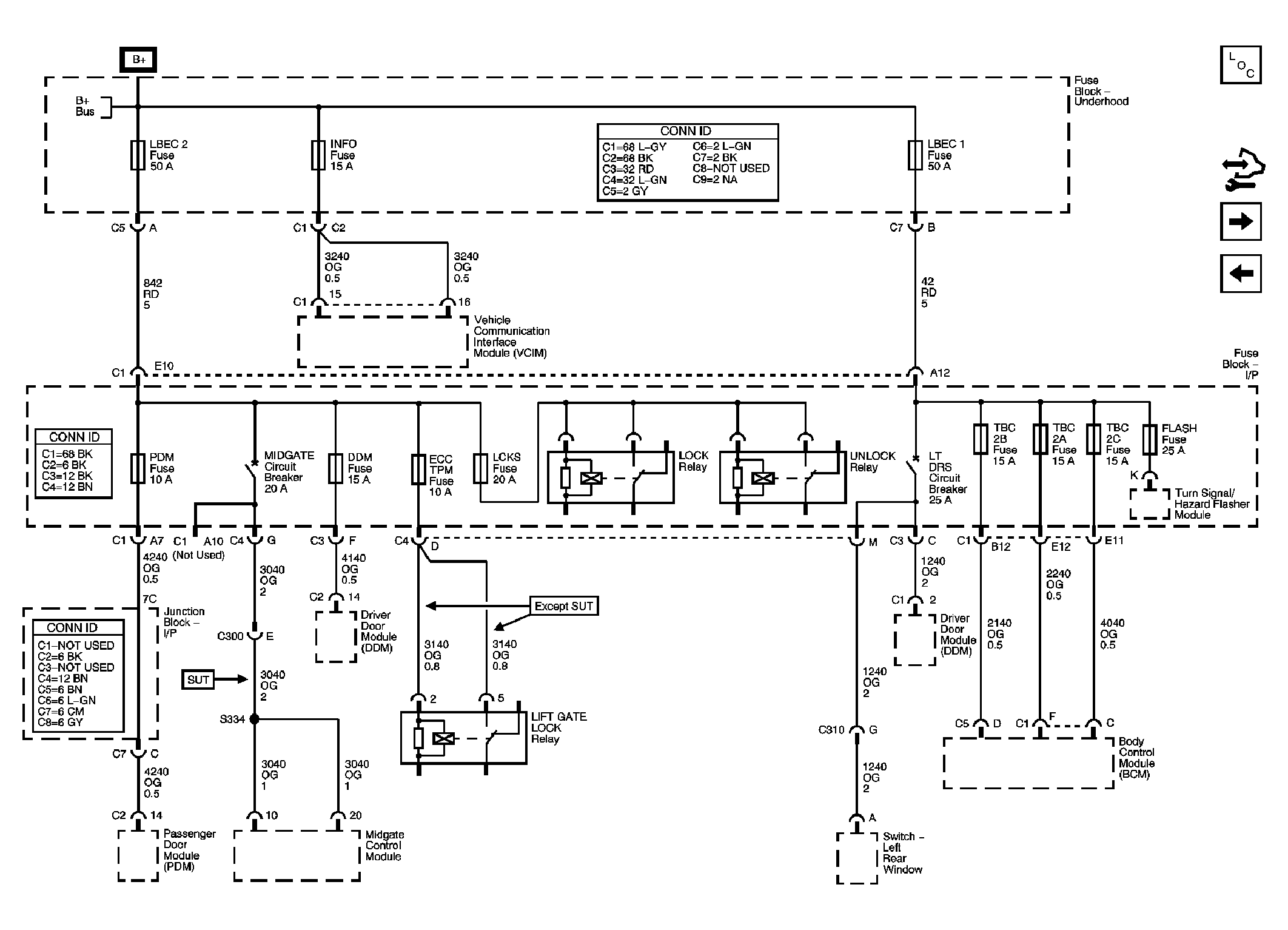

Fig 4: DDM, INFO, LBEC 1, LBEC 2, LGATE, LOCKS, PDM, TBC 2A, TBC 2B, and TBC 2C Fuses and LEFT DOOR and MIDGATE Circuit Breakers

Courtesy of GENERAL MOTORS CORP.

Fig 5: 4WS, RR DEFOG, RR WPR, STOP LP, VEH CHMSL, and VEH STOP Fuses

Courtesy of GENERAL MOTORS CORP.

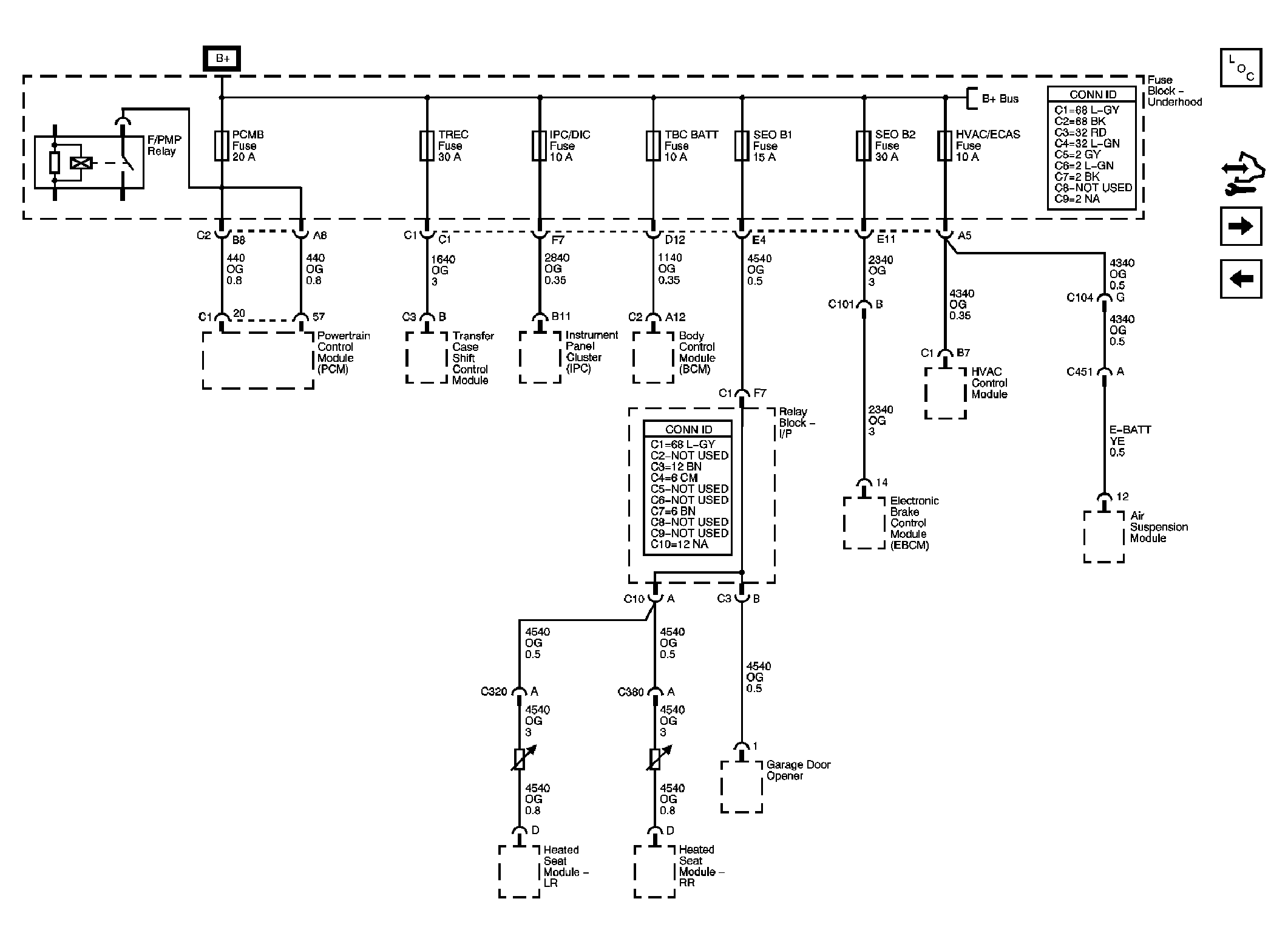

Fig 6: HVAC/ECAS, IPC/DIC, PCM B, SEO B1, SEO B2, TBC BATT, and TREC Fuses

Courtesy of GENERAL MOTORS CORP.

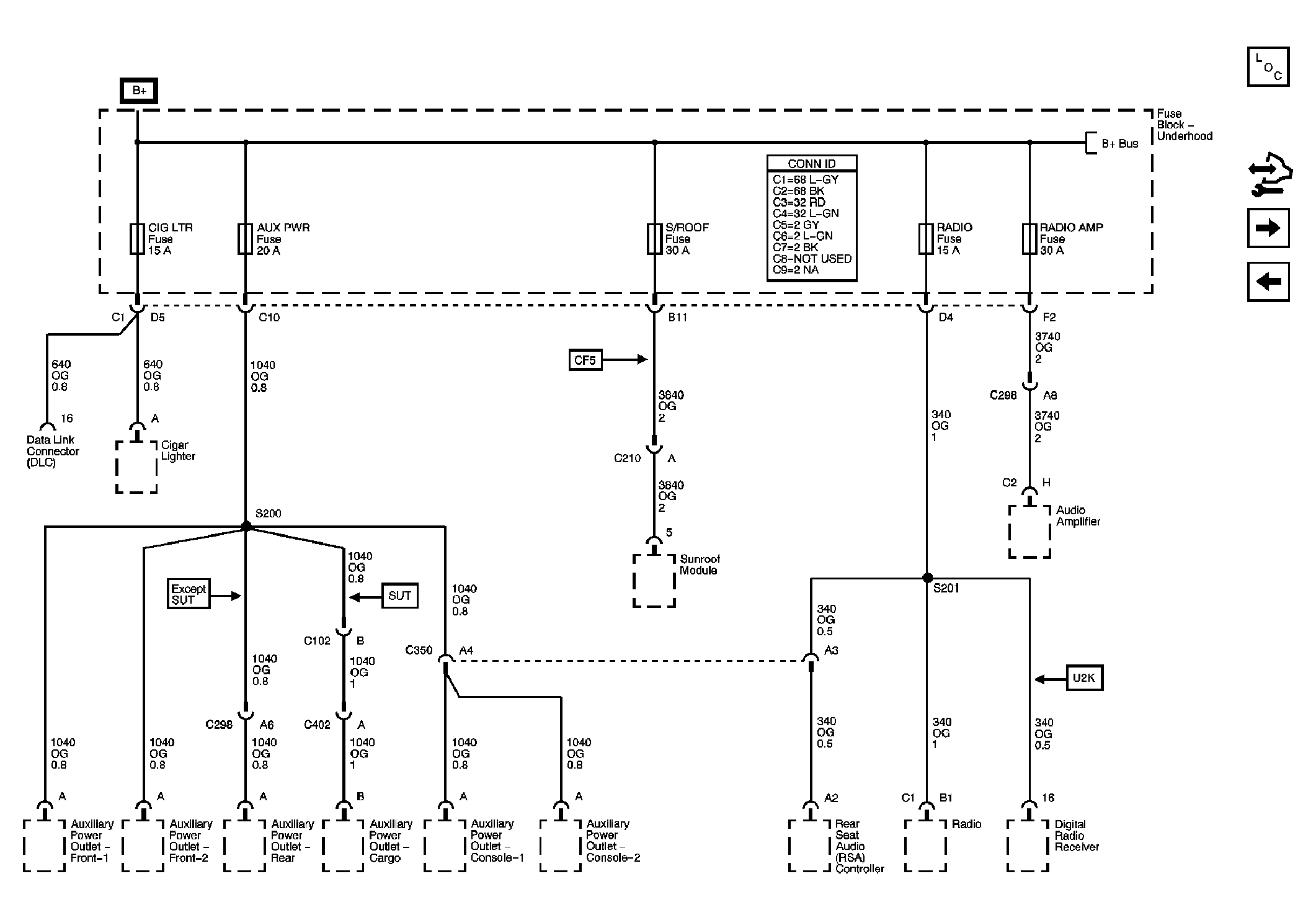

Fig 7: AUX PWR, CIG LTR, RADIO, RADIO AMP, and SUNROOF Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 8: FRT PARK, LR PARK, RR PARK, and TRL PARK Fuses

Courtesy of GENERAL MOTORS CORP.

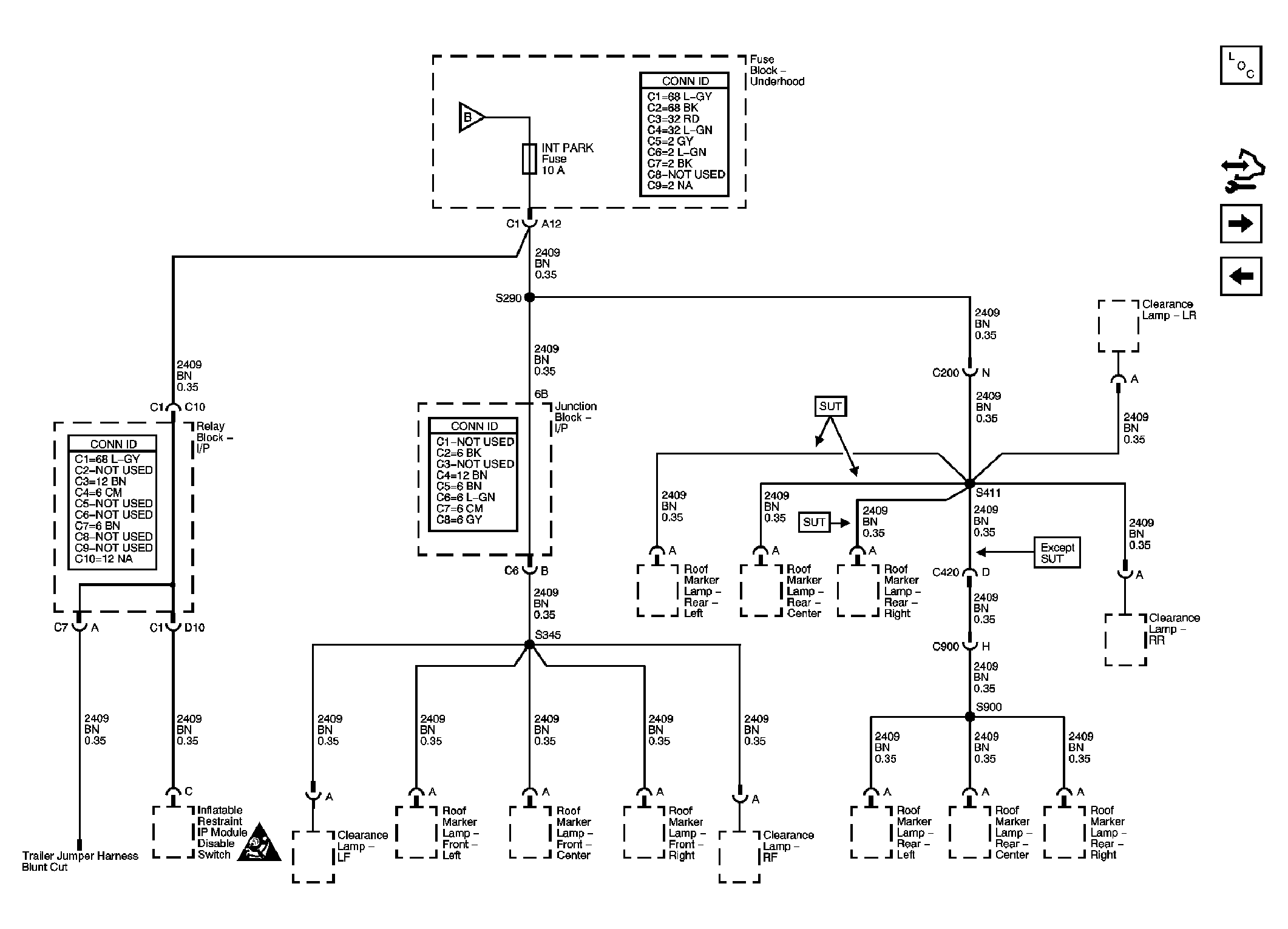

Fig 9: INT PARK Fuse

Courtesy of GENERAL MOTORS CORP.

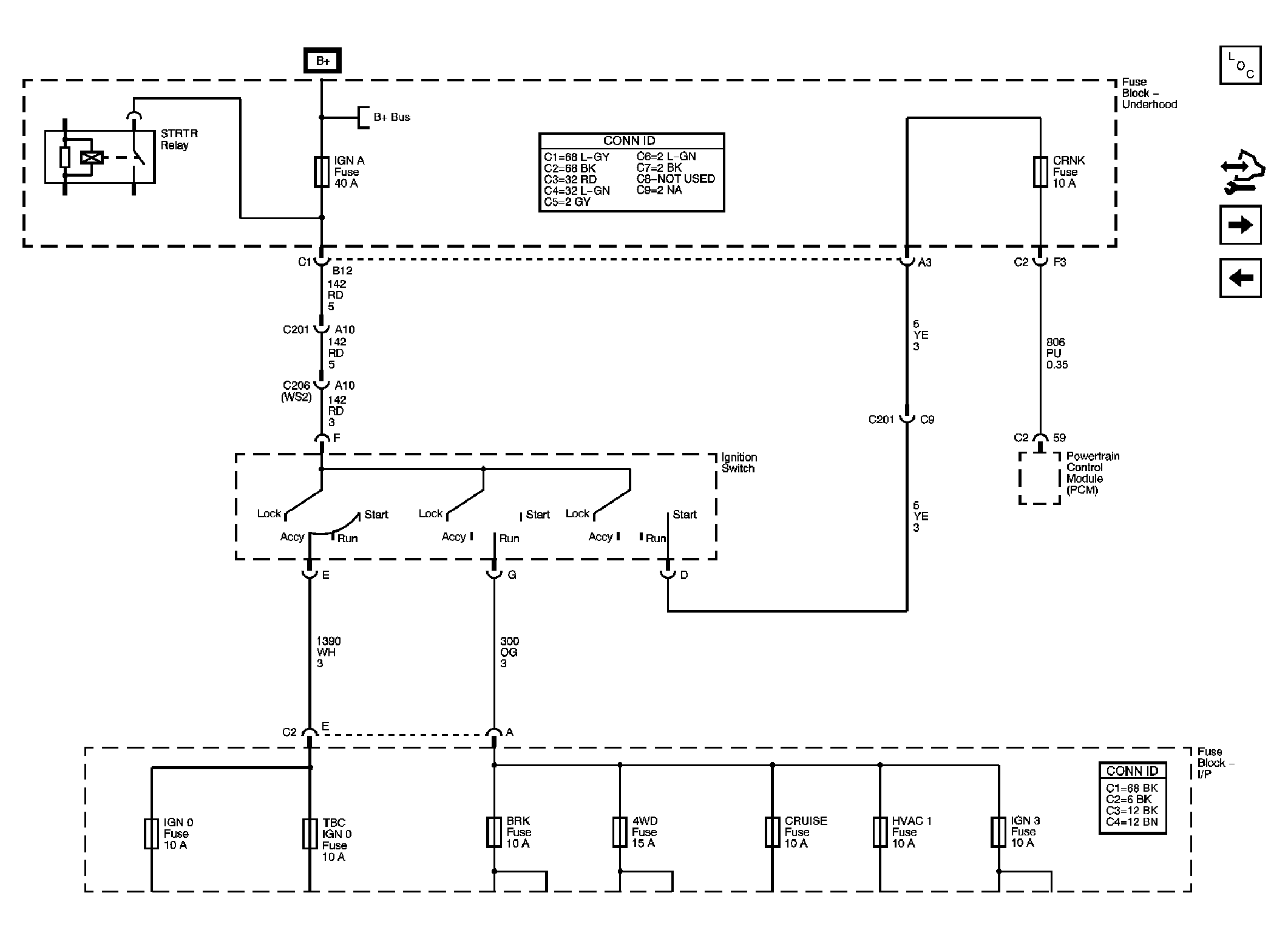

Fig 10: Ignition Switch - ACCY/RUN/START, RUN, and START Bus Bars, and CRANK and IGN A Fuses

Courtesy of GENERAL MOTORS CORP.

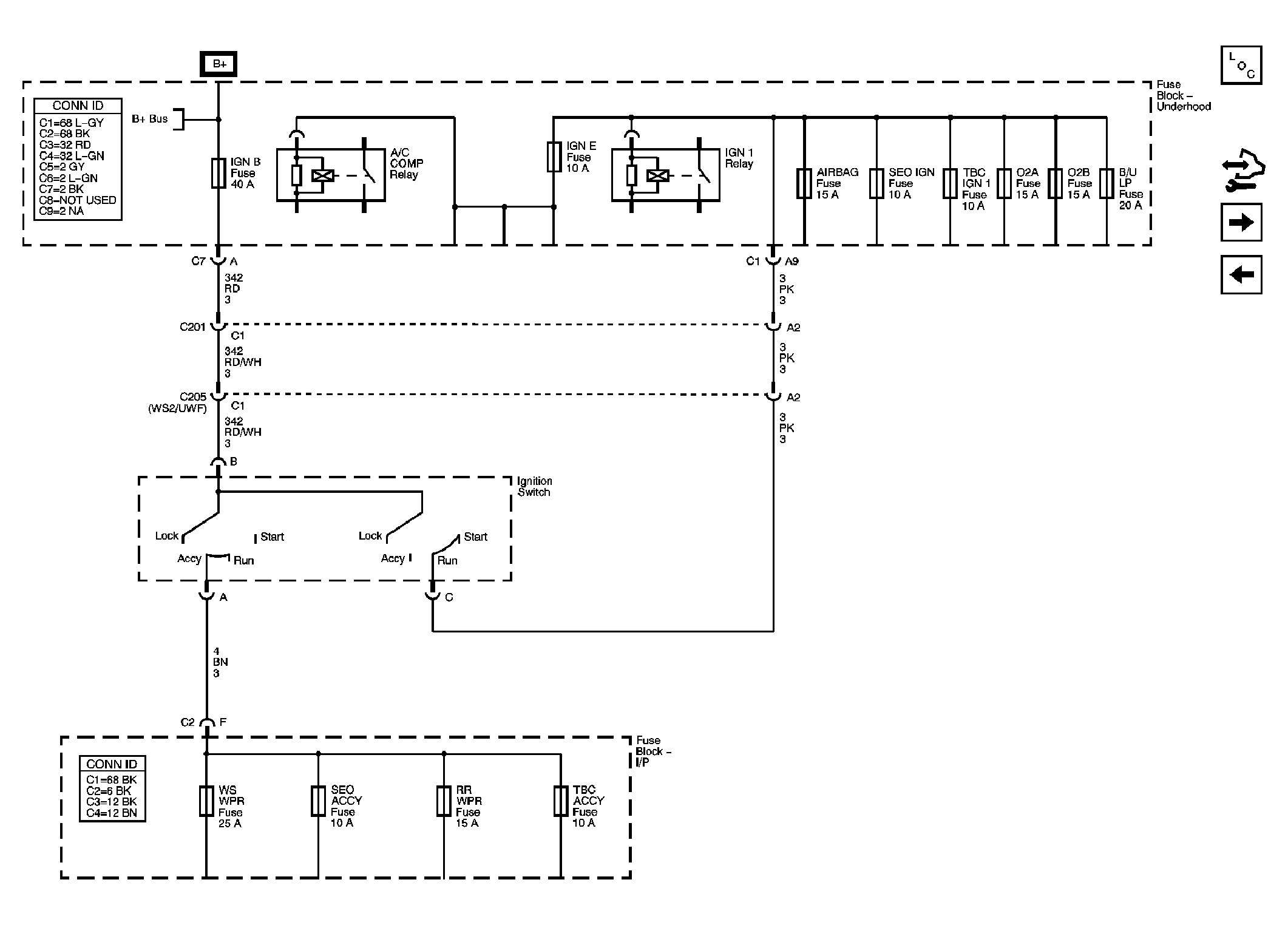

Fig 11: Ignition Switch - ACCY/RUN and RUN/START Bus Bars and IGN B Fuse

Courtesy of GENERAL MOTORS CORP.

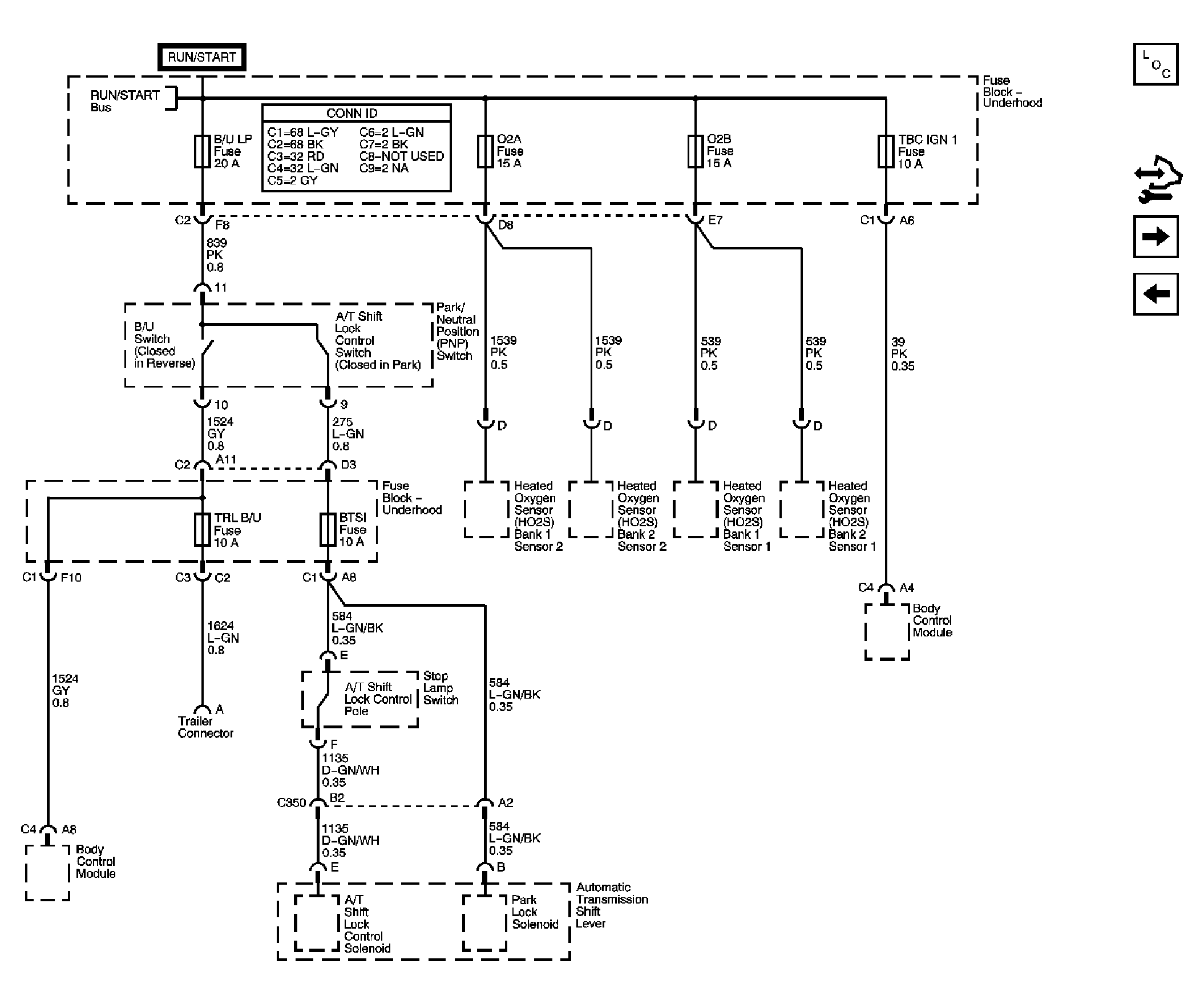

Fig 12: B/U LP, BTSI, 02A, 02B, TBC IGN1, and TRL B/U Fuses

Courtesy of GENERAL MOTORS CORP.

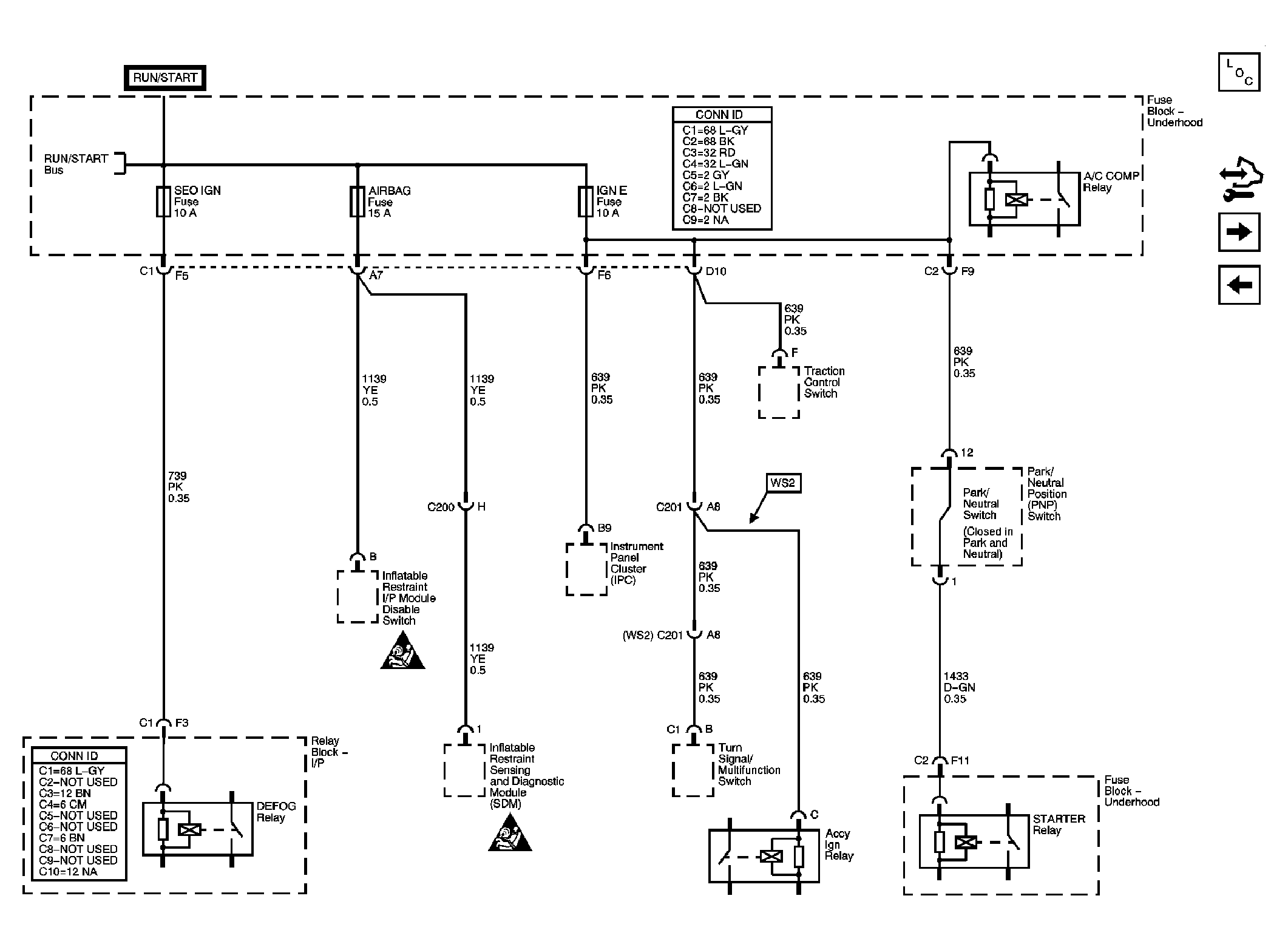

Fig 13: IGN E, SEO IGN and SIR Fuses

Courtesy of GENERAL MOTORS CORP.

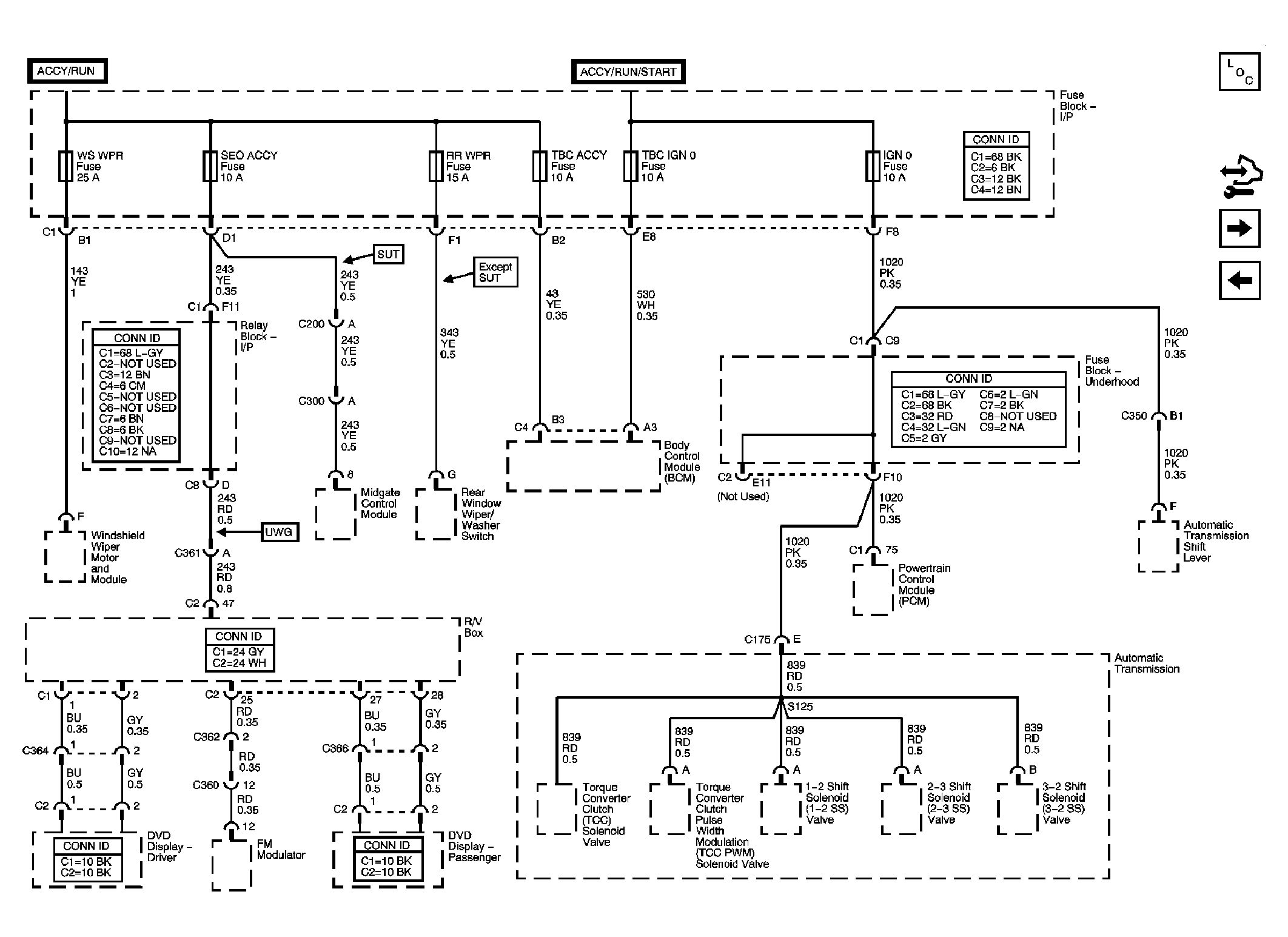

Fig 14: IGN 0, RR WPR, SEO ACCY, TBC ACCY, TBC IGN 0, and WS WPR Fuses

Courtesy of GENERAL MOTORS CORP.

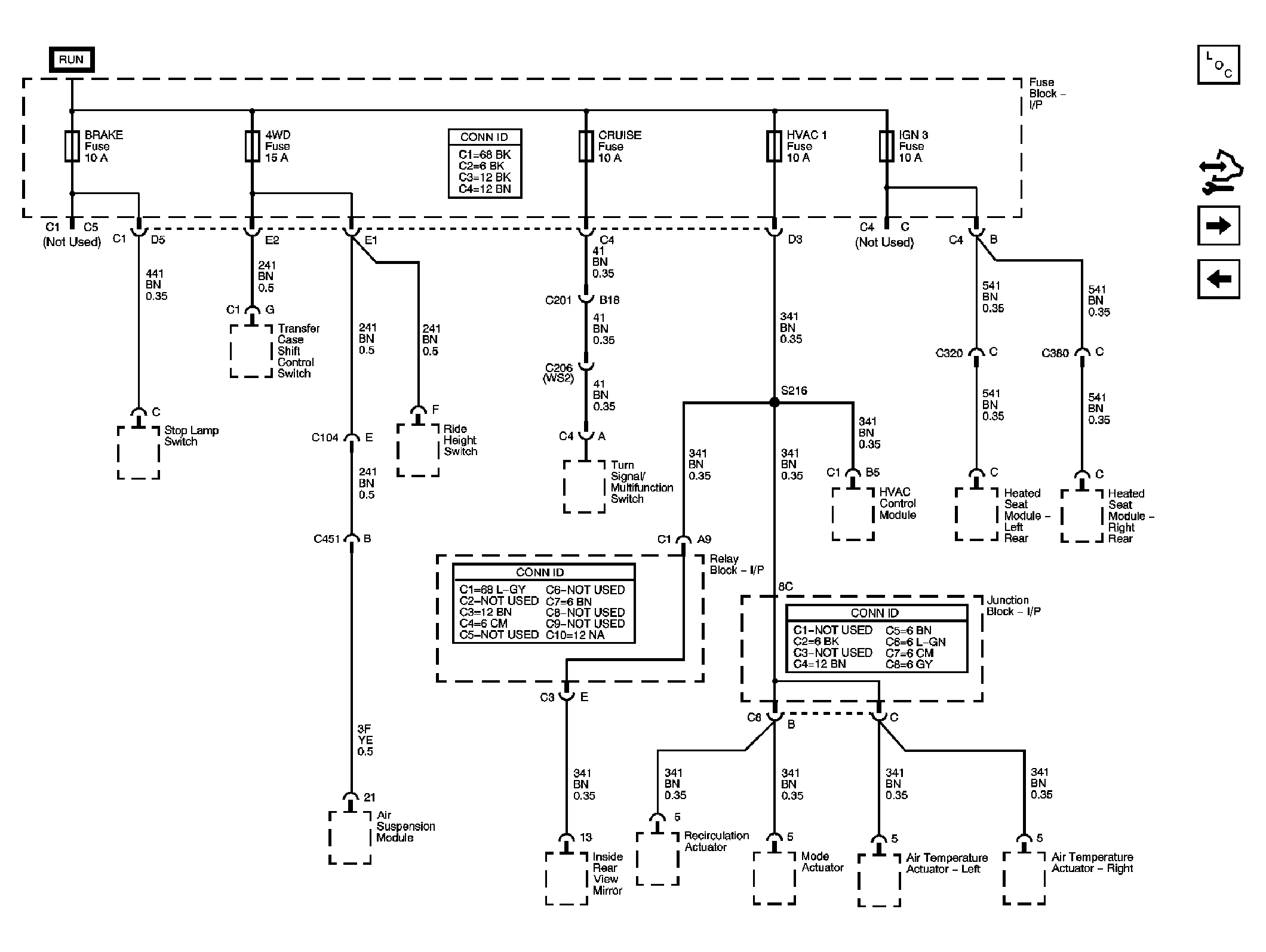

Fig 15: 4WD, BRAKE, CRUISE, HVAC 1, and IGN 3 Fuses

Courtesy of GENERAL MOTORS CORP.

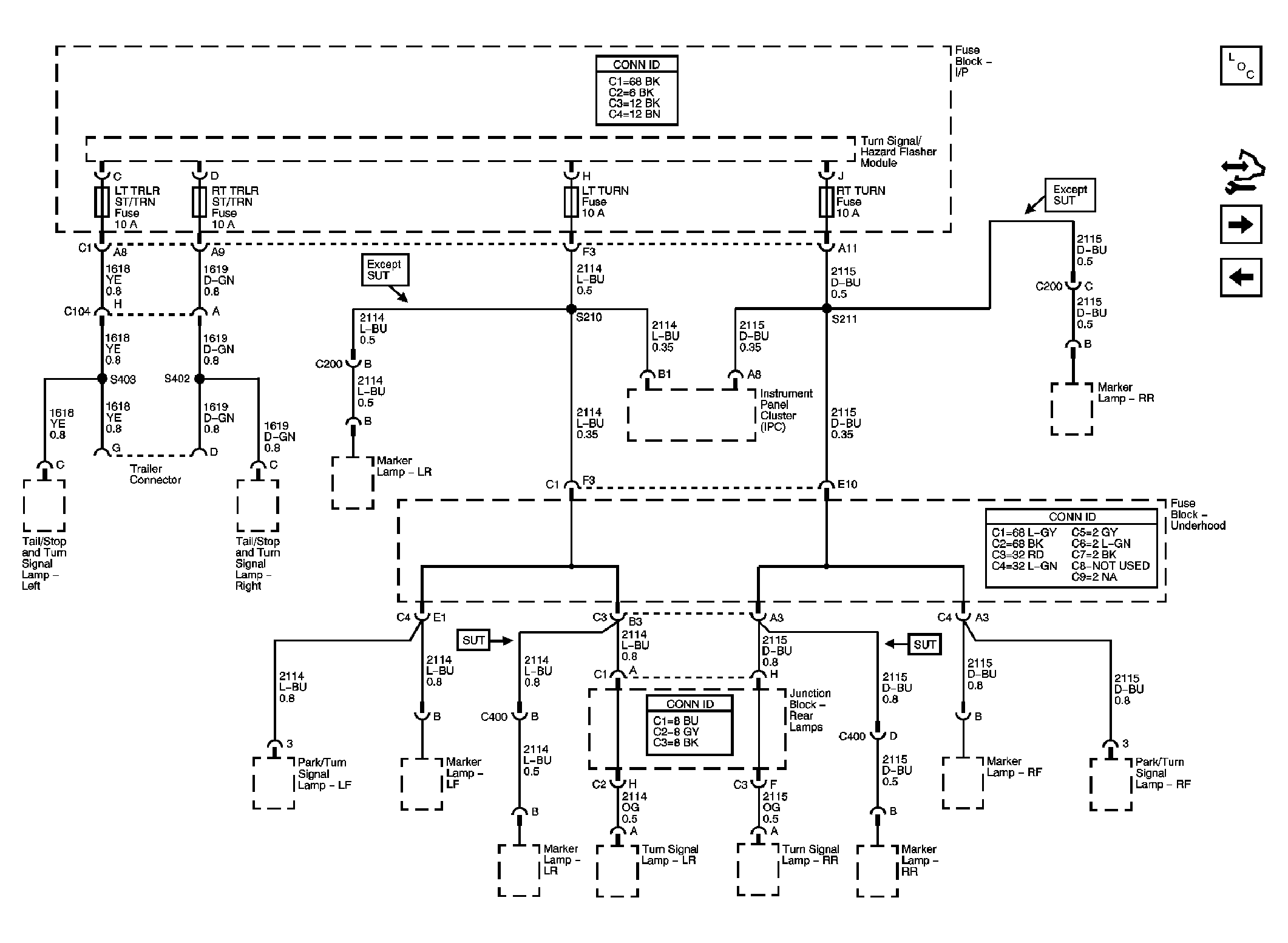

Fig 16: FLASH, LT TRLR, LT TURN, RT TRLR, and RT TURN Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 17: HI HDLP LT, HI HLDP RT, LO HDLP LT, and LO HDLP RT Fuses

Courtesy of GENERAL MOTORS CORP.

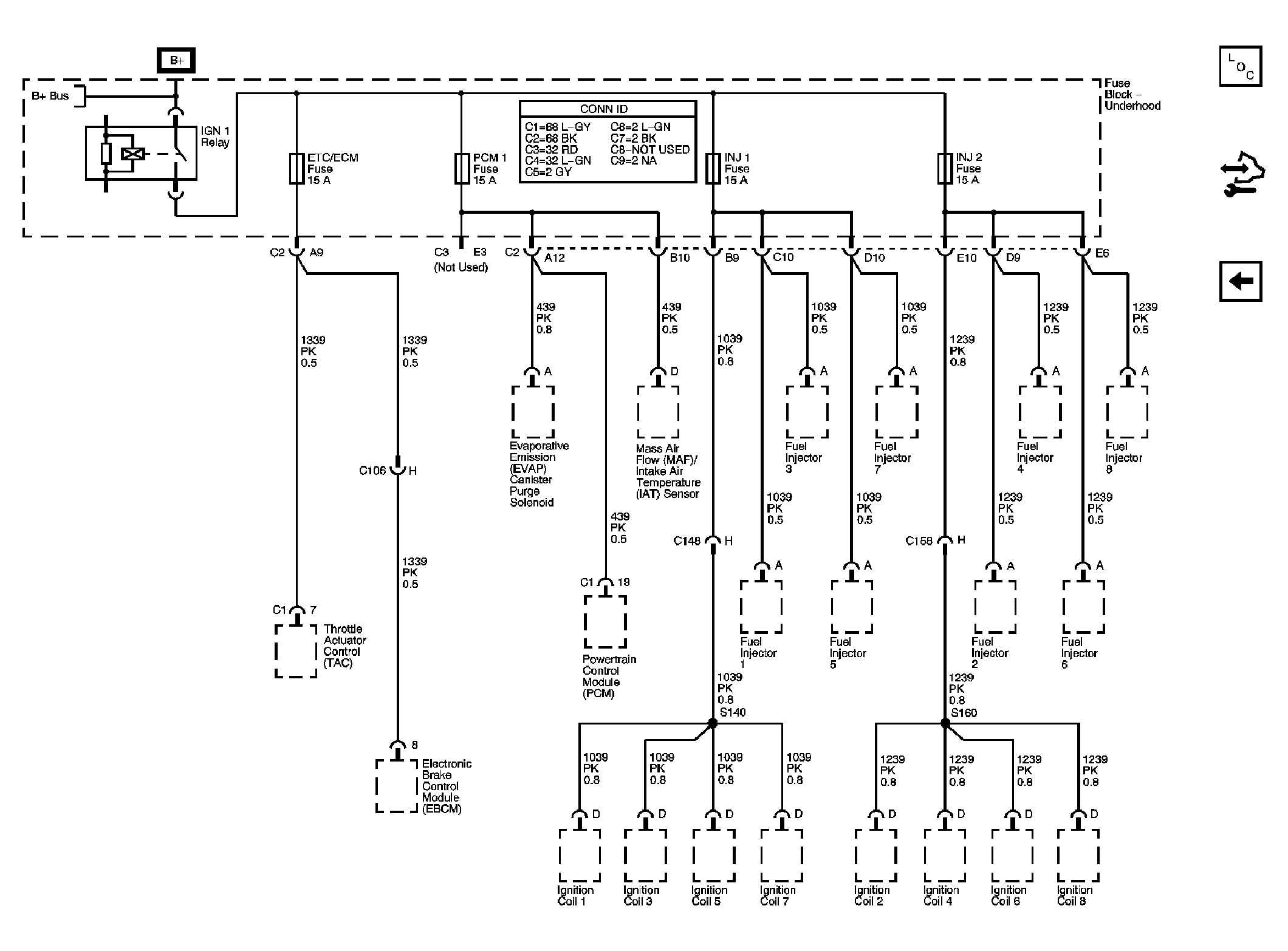

Fig 18: ETC/ECM, INJ 1, INJ 2, and PCM 1 Fuses

Courtesy of GENERAL MOTORS CORP.
