C402 Cargo Bed Harness to Chassis Harness (SUT)

WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
C402 Cargo Bed Harness to Chassis Harness (SUT) Connector End Views

GM684799Courtesy of GENERAL MOTORS CORP.

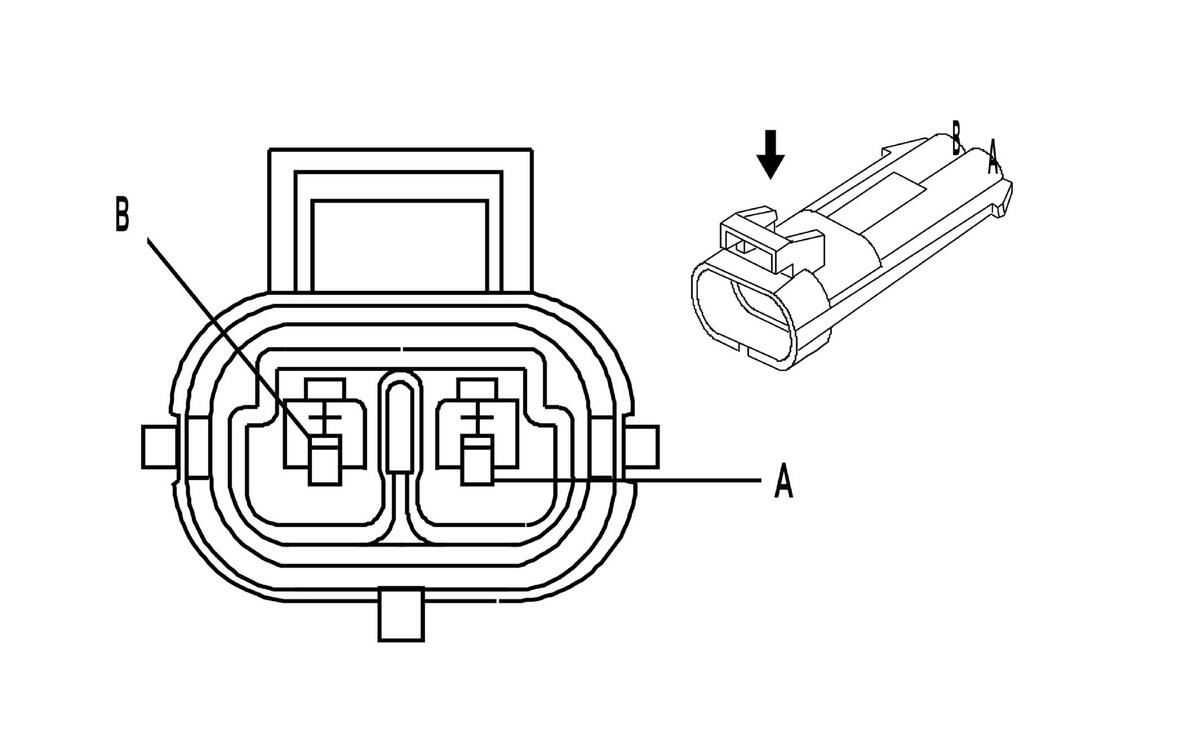

GM879383Courtesy of GENERAL MOTORS CORP.
C402 Cargo Bed Harness to Chassis Harness (SUT) Connector Parts Information

Connector Part Information
  • OEM: 12077900
  • Service: 12116247
  • Description: 2-Way F Metri-Pack 280 Series Sealed (BK)
 Connector Part Information
  • OEM: 15317807
  • Service: See Catalog
  • Description: 2-Way M Metri-Pack 280 Series Sealed (BK)
C402 Cargo Bed Harness to Chassis Harness (SUT) Connector Terminal Identification

Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A OG 1040 Battery Positive Voltage A OG 1040 Battery Positive Voltage
B BK 2950 Ground B BK 2950 Ground
