C101 I/P Harness to Chassis Harness
WARNING: This page is about a different car, the 2007 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

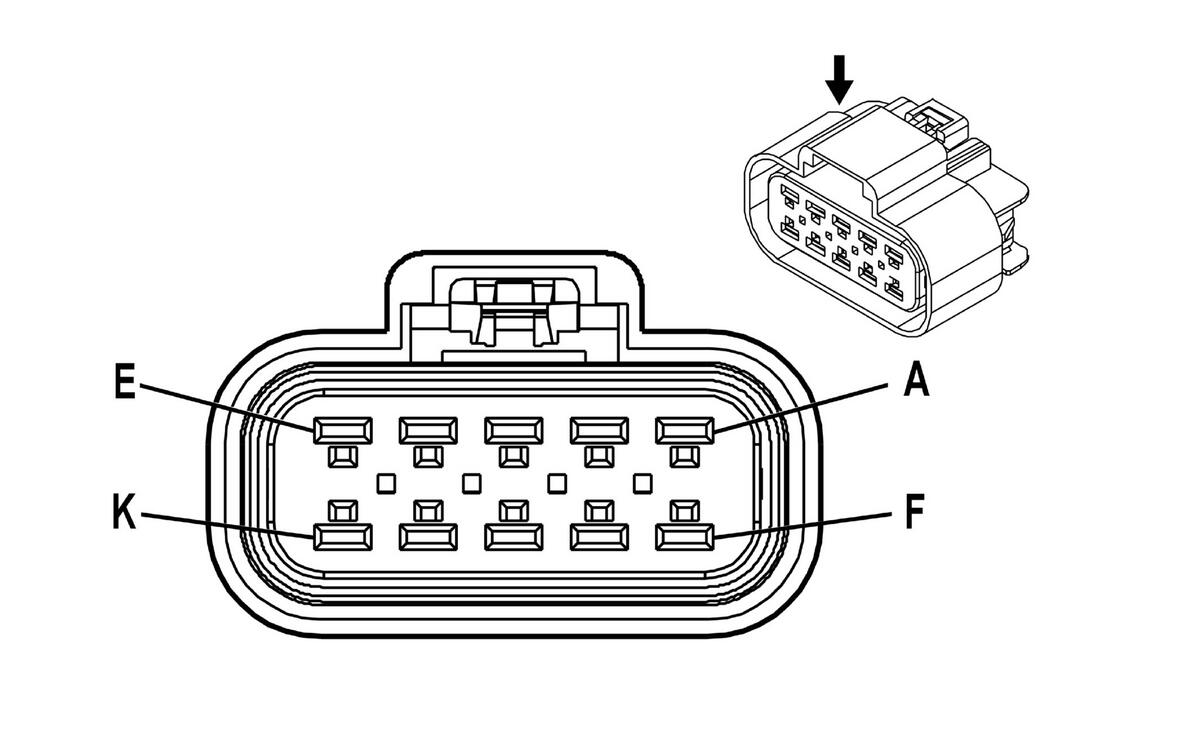

C101 I/P Harness to Chassis Harness Connector End Views
C101 I/P Harness to Chassis Harness Connector Parts Information
Connector Part Information
|
Connector Part Information
|
C101 I/P Harness to Chassis Harness Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|---|---|---|---|
| A | D-GN | 2087 | 5-Volt Reference | A | D-GN | 2087 | 5-Volt Reference |
| B | OG | 2340 | Battery Positive Voltage | B | OG | 2340 | Battery Positive Voltage |
| C | L-BU | 1122 | Class 2 Serial Data | C | L-BU | 1122 | Class 2 Serial Data |
| D | - | - | Not Used | D | - | - | Not Used |
| E | OG | 2554 | Traction Control Preference Switch Indicator | E | OG | 2554 | Traction Control Preference Switch Indicator |
| F | L-BU | 2088 | Low Reference | F | L-BU | 2088 | Low Reference |
| G | D-BU | 716 | LNG Rate Signal | G | D-BU | 716 | LNG Rate Signal |
| H | BK | 1550 | Ground | H | BK | 1550 | Ground |
| J | L-BU | 2206 | Traction Control Preference Switch Signal | J | L-BU | 2206 | Traction Control Preference Switch Signal |
| K | - | - | Not Used | K | - | - | Not Used |
