Auxiliary Air Conditioning Evaporator Replacement (Standard Wheelbase)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

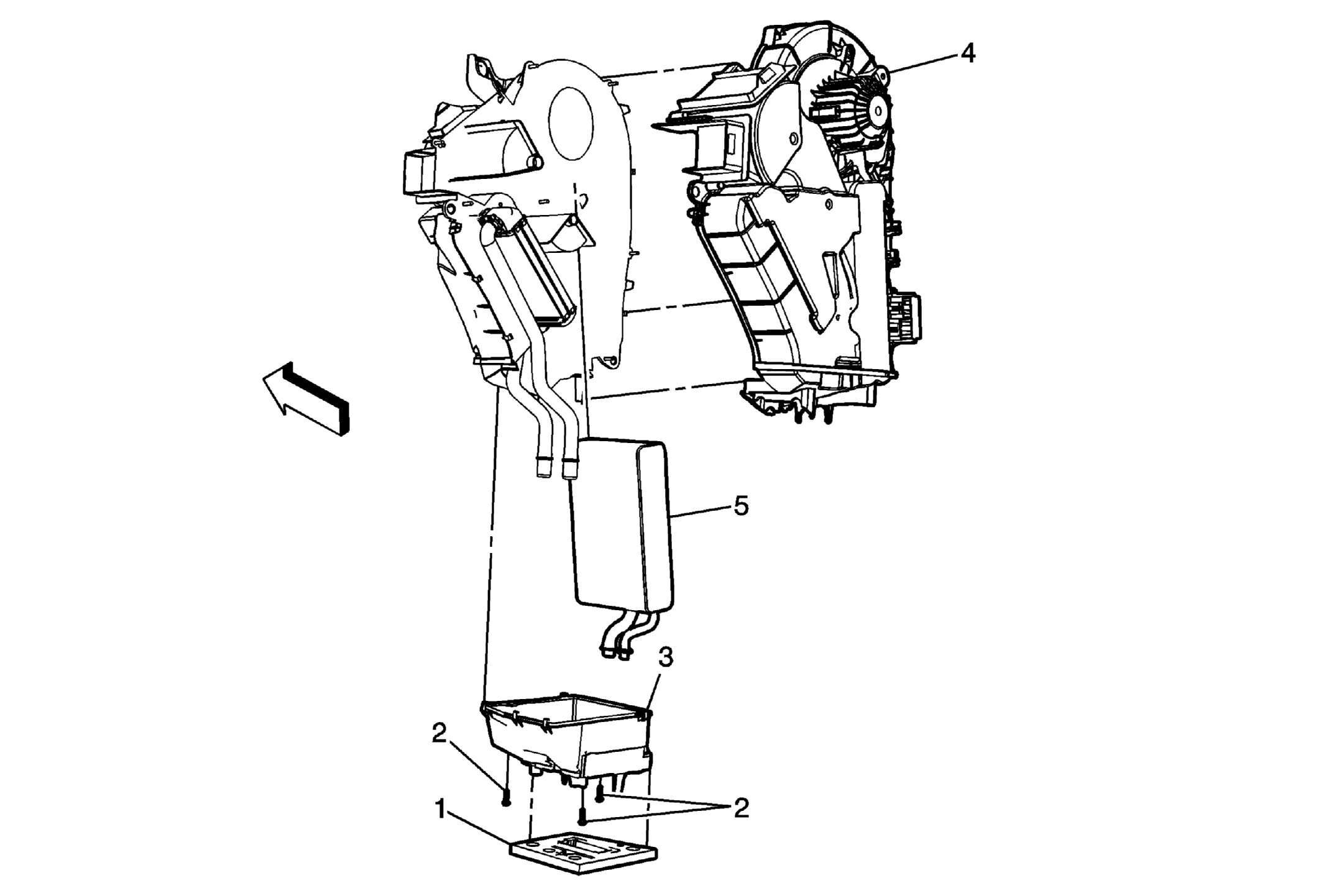

Fig 1: Auxiliary Air Conditioning Evaporator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the HVAC module - auxiliary. Refer to Auxiliary HVAC Module Removal and Installation (Standard Wheelbase) , Auxiliary HVAC Module Removal and Installation (Extended Wheelbase) . Disconnect any wiring connectors or harnesses from HVAC module.
1	HVAC Module Gasket
2	Auxiliary HVAC Module Lower Cover Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove any fastener clips that secure cover to module. Tighten 3 N.m (27 lb in)
3	Auxiliary HVAC Module Lower Cover
4	HVAC Module Case Procedure Remove any fastener clips that secure cover to module. Tighten 3 N.m (27 lb in)
5	Auxiliary HVAC Evaporator Core Procedure Ensure all seals and gaskets are in place upon installation.
