Air Conditioning Evaporator and Blower Case Drain Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

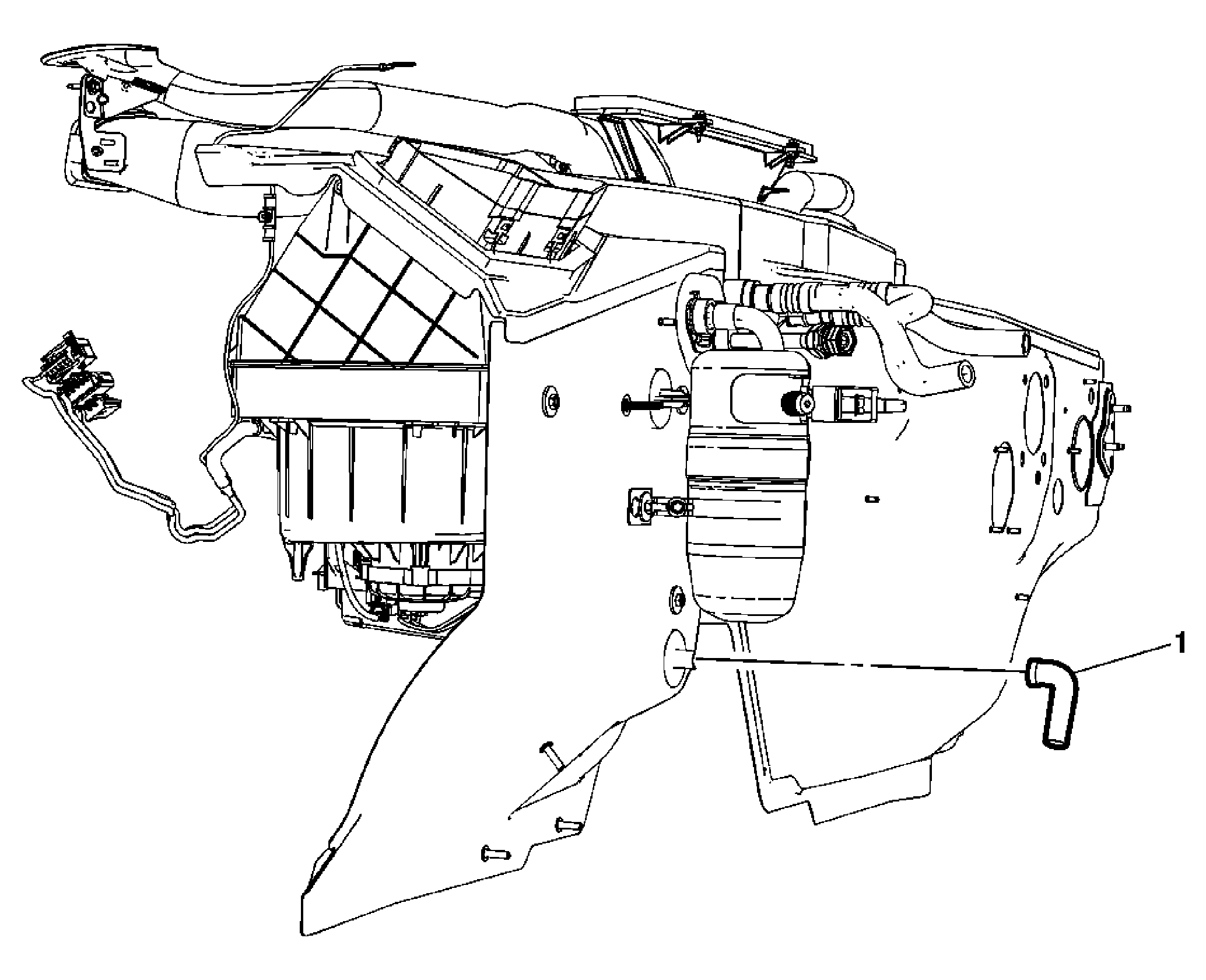

Fig 1: Air Conditioning Evaporator and Blower Case Drain

Courtesy of GENERAL MOTORS CORP.

Callout	Evaporator Case Drain
1	Evaporator Case Drain Procedure Remove the evaporator case drain.
