Air Conditioning Compressor Bracket Replacement (HP2)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

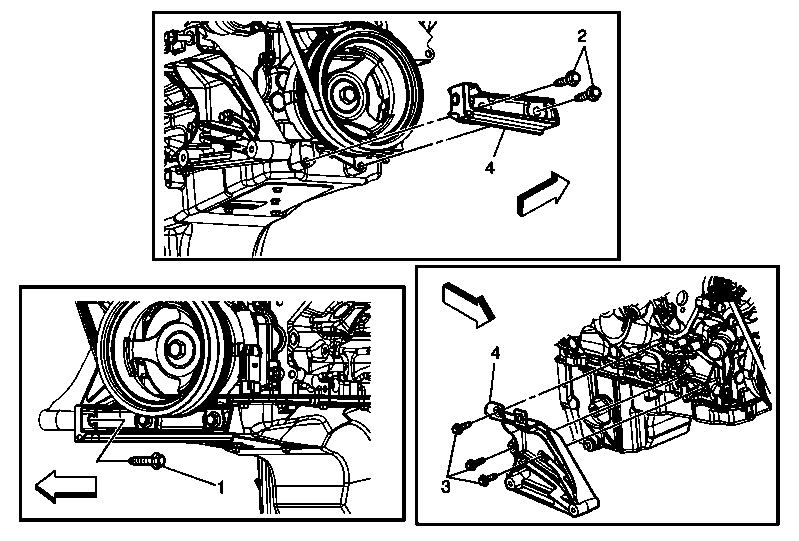

Fig 1: Air Conditioning Compressor Bracket (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement (HP2) , Air Conditioning Compressor Replacement (LY2, LY5, LH6, L76, L92, LC9 and LMG) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the engine shield. Refer to Engine Shield Replacement . Remove the oil pan slid plate. Refer to Oil Pan Skid Plate Replacement (1500 with RPO NZZ) , Oil Pan Skid Plate Replacement (2500/3500 with RPO NZZ) . Remove transmission cooler bracket.
1	A/C Compressor Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	A/C Compressor Bracket Bolt (Qty: 2) Tighten 50 N.m (37 lb ft)
3	A/C Compressor Bracket Bolt (Qty: 3) Tighten 50 N.m (37 lb ft)
4	A/C Compressor Bracket
