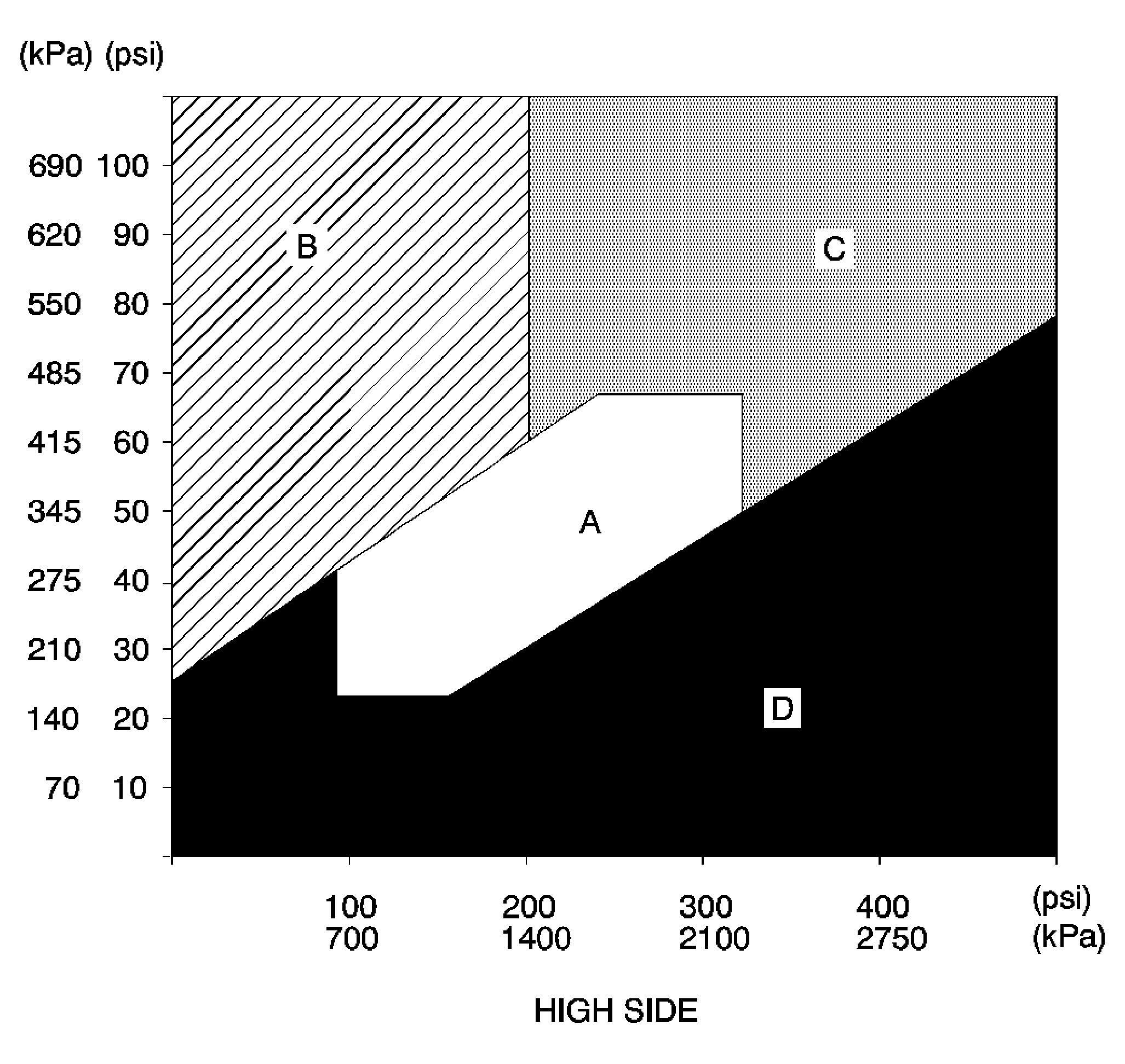

A/C System Pressure- Zone Classification with Aux A/C
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
A/C Performance Table with Aux A/C
| Ambient Air Temperature | Relative Humidity | Service Port Pressure | Maximum Discharge Air Temperature | ||
|---|---|---|---|---|---|
| Low Side | High Side | Left Front Center | Left Rear | ||
| 13-18°C (55-65°F) | 0-100% | 179-268 kPa (26-39 psi) | 682-999 kPa (99-145 psi) | 11°C (51°F) | 13°C (54°F) |
| 19-24°C (66-75°F) | Below 40% | 199-289 kPa (29-42 psi) | 813-1157 kPa (118-168 psi) | 14°C (56°F) | 15°C (59°F) |
| Above 40% | 206-3102 kPa (30-45 psi) | 861-1191 kPa (125-173 psi) | 14°C (56°F) | 15°C (59°F) | |
| 25-29°C (76-85°F) | Below 35% | 234-316 kPa (34-46 psi) | 1061-1350 kPa (154-196 psi) | 17°C (61°F) | 18°C (64°F) |
| 35-50% | 248-323 kPa (36-47 psi) | 1081-1350 kPa (157-196 psi) | 18°C (64°F) | 18°C (64°F) | |
| Above 50% | 254-344 kPa (37-50 psi) | 1088-1350 kPa (158-196 psi) | 18°C (64°F) | 19°C (66°F) | |
| 30-35°C (86-95°F) | Below 30% | 261-351 kPa (38-51 psi) | 1260-1577 kPa (183-229 psi) | 19°C (65°F) | 22°C (70°F) |
| 30-50% | 268-365 kPa (39-53 psi) | 1267-1557 kPa (184-226 psi) | 19°C (66°F) | 23°C (72°F) | |
| Above 50% | 282-385 kPa (41-56 psi) | 1267-1543 kPa (184-224 psi) | 20°C (68°F) | 23°C (73°F) | |
| 36-41°C (96-105°F) | Below 20% | 296-378 kPa (43-55 psi) | 1508-1818 kPa (219-264 psi) | 20°C (68°F) | 23°C (73°F) |
| 20-40% | 303-392 kPa (44-57 psi) | 1502-1791 kPa (218-260 psi) | 22°C (70°F) | 25°C (77°F) | |
| Above 40% | 316-406 kPa (46-59 psi) | 1488-1756 kPa (216-255 psi) | 23°C (72°F) | 27°C (79°F) | |
| 42-46°C (106-115°F) | Below 20% | 330-406 kPa (48-59 psi) | 1756-2018 kPa (255-293 psi) | 23°C (72°F) | 27°C (79°F) |
| Above 20% | 337-420 kPa (49-61 psi) | 1743-1970 kPa (253-286 psi) | 24°C (75°F) | 28°C (82°F) | |
| 47-49°C (116-120°F) | Below 30% | 365-447 kPa (53-65 psi) | 1942-2191 kPa (282-318 psi) | 25°C (77°F) | 30°C (86°F) |
