Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the park brake.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

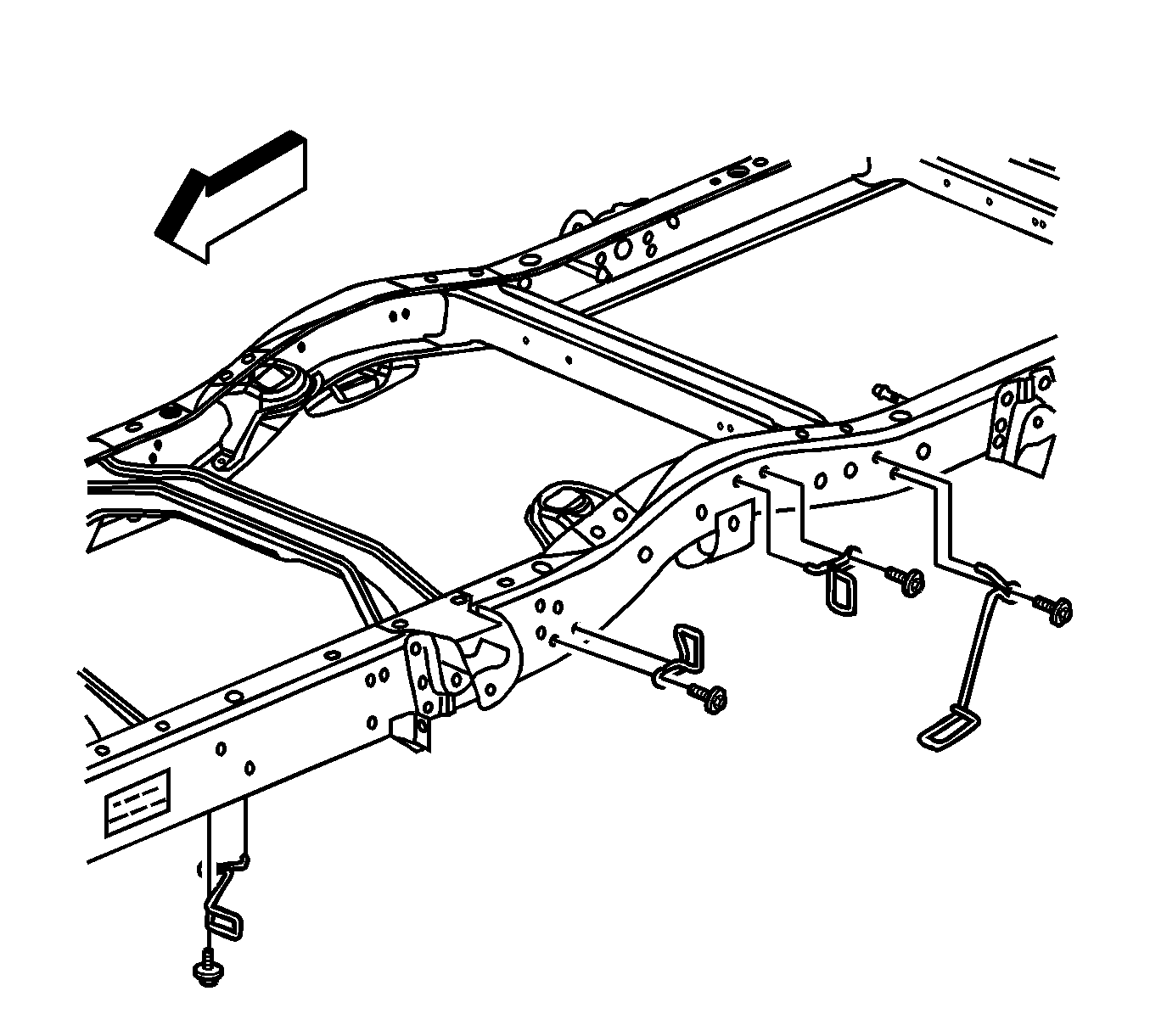

    3. Fig 1: Park Brake Cable Guide Bolt (Cutaway Vehicles)
    GM1208291Courtesy of GENERAL MOTORS CORP.
  3. Remove the park brake cable guide bolt from the frame.
  4. Remove the park brake cable guide.
  5. Remove the park brake cable guide from the park brake cable.
