Instrument Panel Carrier Support Replacement (Cadillac)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

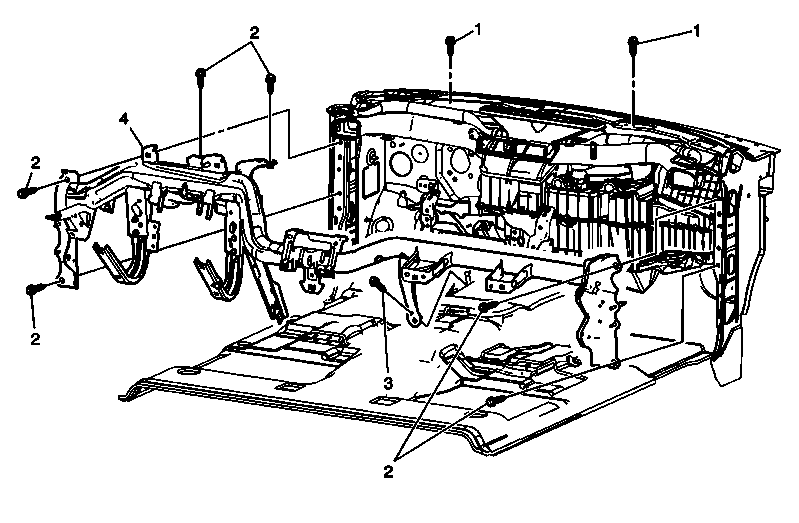

Fig 1: Instrument Panel Carrier Support Assembly And Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel assembly. Refer to Instrument Panel Lower Trim Panel Replacement (Cadillac) .
1	Instrument Panel Carrier Support Assembly Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Instrument Panel Carrier Support Assembly Bolt (Qty: 6) Tighten 22 N.m (16 lb ft)
3	Instrument Panel Carrier Assembly Lower Bolt Tighten 22 N.m (16 lb ft)
4	Instrument Panel Carrier Support Assembly
